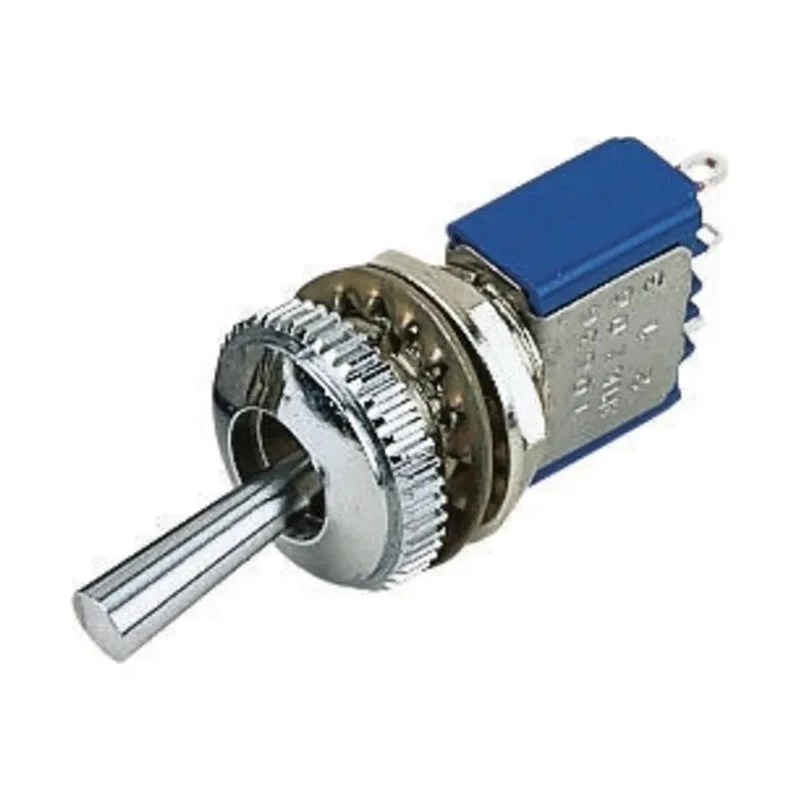

APEM Toggle Switch Panel Mount On-Off-On SPDT Solder Terminal 24 V dc 250 V ac 106382103
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Width | 12mm |
| Mount Type | Panel |
| Series | 10600 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.2 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, CECC, UL, RoHS, NFVDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 693-1373Brand: APEMManufacturers Part No.: 106382103 |
| Switch Operation | On-Off-On |
| Actuator Length | 11mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Single pole double throw contact configuration enabling On-Off-On switch operation.
- Rated for switch contact current of 3A suitable for moderate electrical loads.
- Panel mounting type with a 12.2 mm cutout size for secure installation.
- Non-illuminated brass actuator with 11 mm length, providing robust mechanical operation.
- Wide operating temperature range from -40°C to 85°C for reliable performance in various environments.

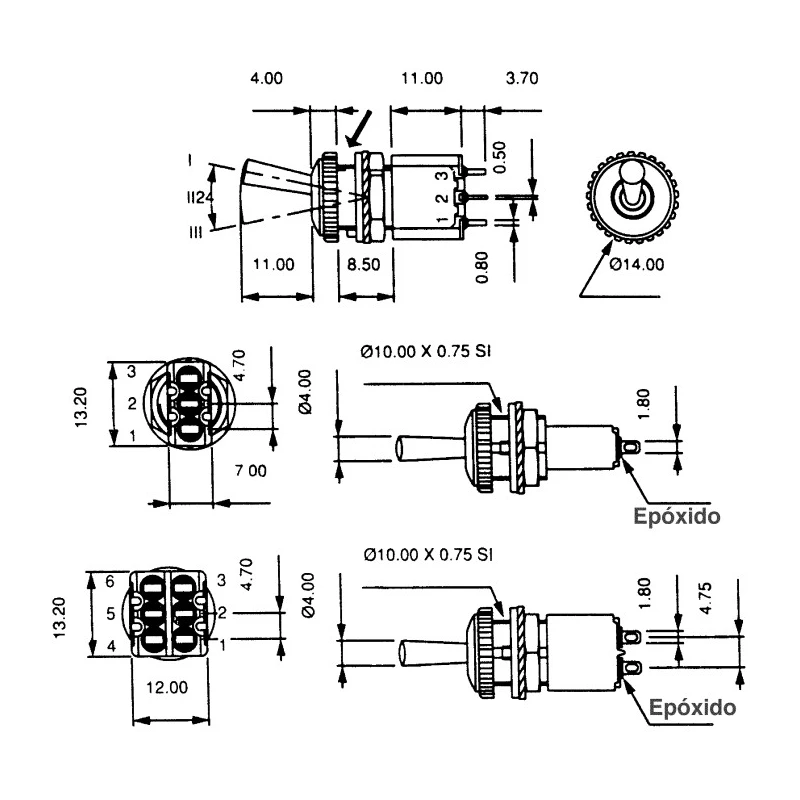

- Compact dimensions of 14 mm length, 12 mm width, and 36 mm height for space-efficient mounting.
- Mechanical life rated for 10,000 operations ensuring durability and long service life.
- Complies with international standards including CSA, CECC, UL, RoHS, and NFVDE certification standards.
Product Description
APEM 106382103 Toggle Switch is a panel mount switch featuring an On-Off-On SPDT contact configuration suitable for a broad range of electrical applications. It operates at a contact DC voltage of 24 V and an AC voltage rating of 250 V, making it ideal for control and automation circuits that require reliable switching at moderate current levels of 3A.
The switch is designed with solder terminals for secure connections and a panel mounting design requiring a 12.2 mm cutout for installation. The actuator is made of brass with an 11 mm length, ensuring mechanical robustness and ease of operation. It supports a wide operating temperature range from -40°C up to 85°C which allows deployment in demanding industrial or outdoor environments.
Compact in size with dimensions of 14 mm length, 12 mm width, and 36 mm height, this toggle switch delivers dependable electrical functionality within limited space constraints. The mechanical life expectancy of 10,000 operations underlines its durability for long-term usage in industrial, laboratory, electronic device, and HVAC control systems.
Single pole double throw switch configuration. 3A maximum switching current rating. Robust brass actuator material. Panel mount with 12.2 mm cutout. Wide operating temperatures from -40°C to 85°C. Complies with CSA, CECC, UL, RoHS, and NFVDE standards.
Compact overall dimensions suitable for various mounting requirements.
Manufactured in France, the APEM 106382103 toggle switch offers quality compliance and reliability, making it a preferred choice in electrical automation, industrial control panels, and electronic equipment. This switch is an efficient component for integrating into devices requiring panel mount toggle control functionality with precision and safety.
Explore more Toggle Switch options and electrical automation components with EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a single pole double throw (SPDT) contact configuration, enabling On-Off-On switch operation.
The switch operates at a contact DC voltage of 24 V and an AC voltage rating of 250 V.
It has a maximum switching current rating of 3A, suitable for moderate electrical loads.
The switch has compact dimensions of 14 mm in length, 12 mm in width, and 36 mm in height.
A panel cutout size of 12.2 mm is required for secure installation of this model.
It supports a wide operating temperature range from -40°C to 85°C, making it suitable for various environments.
The mechanical life is rated for 10,000 operations, ensuring long service life.
It is designed with solder terminals for secure connections.
It complies with several international standards, including CSA, CECC, UL, RoHS, and NFVDE.
The actuator is made of brass, providing robust mechanical operation.
It uses a panel mounting type, suitable for various mounting requirements.
This model belongs to the 10600 series of toggle switches.
