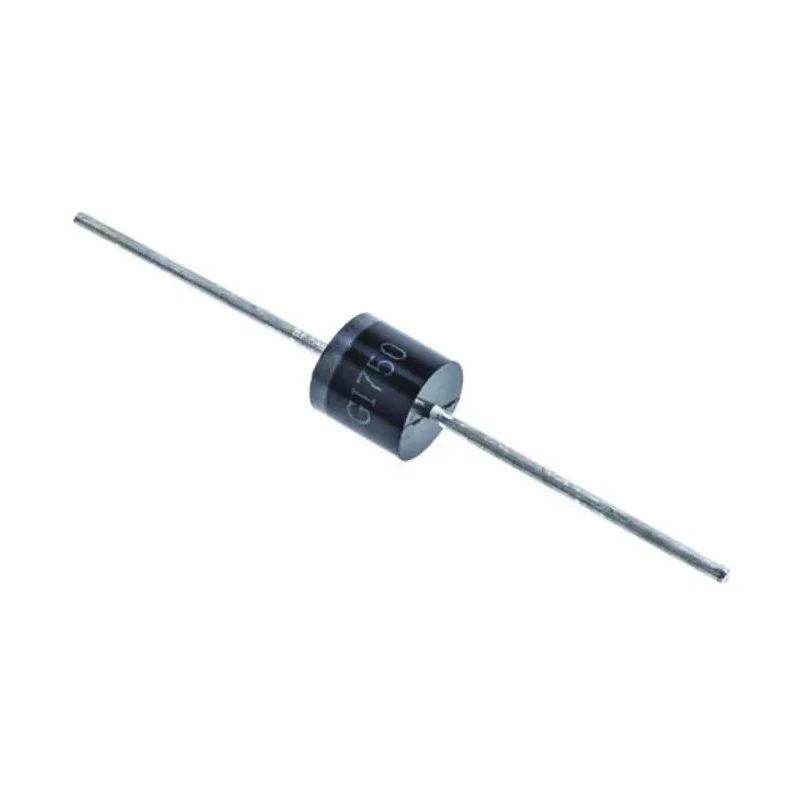

Littelfuse 1-Element Bi-Directional TVS Diode 30 kW 2-Pin P600 30KPA33CA
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Littelfuse |
| Length | 9.1mm |
| Model | 30KPA33CA |
| Mount Type | Through Hole |
| Series | 30KPA |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 36.9V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 30kW |
| Test Current It | 50mA |
| Maximum Peak Pulse Current Ippm | 517.9A |
| Maximum Reverse Leakage Current | 5mA |
| Fast response time | typically less than 1.0ps from 0 Volts to BV min |
Key Features
- Provides 30 kW peak pulse power dissipation capability.
- Bi-directional diode suitable for transient voltage suppression.
- Through-hole mount with 2-pin P600 package for easy PCB assembly.
- Clamps voltage at 58.5 V for effective circuit protection.
- Operates reliably between -55°C to 175°C ambient temperatures.
- Fast response time of typically less than 1.0 picosecond from 0 Volts to minimum breakdown voltage.
- Glass passivated chip junction ensures long-term stability and reliability.
- Halogen-free and lead-free plated matte tin finish for environmental safety.
Product Description
The Littelfuse 30KPA33CA is a 1-element bi-directional transient voltage suppression (TVS) diode offering a peak pulse power dissipation of 30 kW. It features a 2-pin P600 through-hole package with a length and diameter of 9.1 mm, making it suitable for PCB mounting in various electronic applications.
This diode provides robust protection against voltage transients induced by lightning and other transient voltage events. With a minimum breakdown voltage of 36.9 V and a maximum reverse stand-off voltage of 33 V, it clamps voltage spikes at 58.5 V to prevent damage to sensitive electronic components.
Designed for durable operation, the device operates over a wide temperature range from -55°C up to 175°C. Its fast response time is typically less than 1.0 ps from 0 Volts to breakdown voltage, providing immediate suppression of voltage spikes. The glass passivated chip junction in a halogen-free, lead-free plated matte tin finish enhances reliability and environmental safety.
This TVS diode also features a maximum peak pulse current rating of 517.9 A, low incremental surge resistance, and a maximum reverse leakage current of 5 mA. It guarantees high temperature soldering capability at 265°C for 10 seconds with 0.375" (9.5 mm) lead length tensioned at 51 lbs. (2.3 kg).
Its single diode configuration and bi-directional direction type make it ideal for protecting circuits in industrial, automotive, telecommunication, and power distribution applications where transient voltage suppression is critical.
Provides 30 kW peak pulse power dissipation capability. Bi-directional diode suitable for transient voltage suppression. Through-hole mount with 2-pin P600 package for easy PCB assembly. Clamps voltage at 58.5 V for effective circuit protection.
Operates reliably between -55°C to 175°C ambient temperatures. Fast response time of typically less than 1.0 picosecond from 0 Volts to minimum breakdown voltage. Glass passivated chip junction ensures long-term stability and reliability.
Halogen-free and lead-free plated matte tin finish for environmental safety. Maximum peak pulse current rating of 517.9 Amperes. Ideal for protecting sensitive electronics from lightning-induced transient voltage spikes.
Explore our selection of Littelfuse TVS Diodes and other semiconductor components at EnvMart for reliable electronic protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 30KPA33CA has a peak pulse power dissipation capability of 30 kW.
This diode clamps voltage at 58.5 V to protect sensitive electronic components from voltage spikes.
The maximum reverse stand-off voltage is 33 V.
The minimum breakdown voltage is 36.9 V.
This model has a diameter and length of 9.1 mm.
It operates reliably between -55°C and 175°C ambient temperatures.
The maximum peak pulse current rating is 517.9 A.
It features a through-hole mount with a 2-pin P600 package for easy PCB assembly.
It has a fast response time of typically less than 1.0 picosecond from 0 Volts to minimum breakdown voltage.
The diode has a halogen-free and lead-free plated matte tin finish for environmental safety.
This model features a single diode configuration and is bi-directional in type.
It is suitable for use in industrial, automotive, telecommunication, and power distribution applications where transient voltage suppression is critical.
