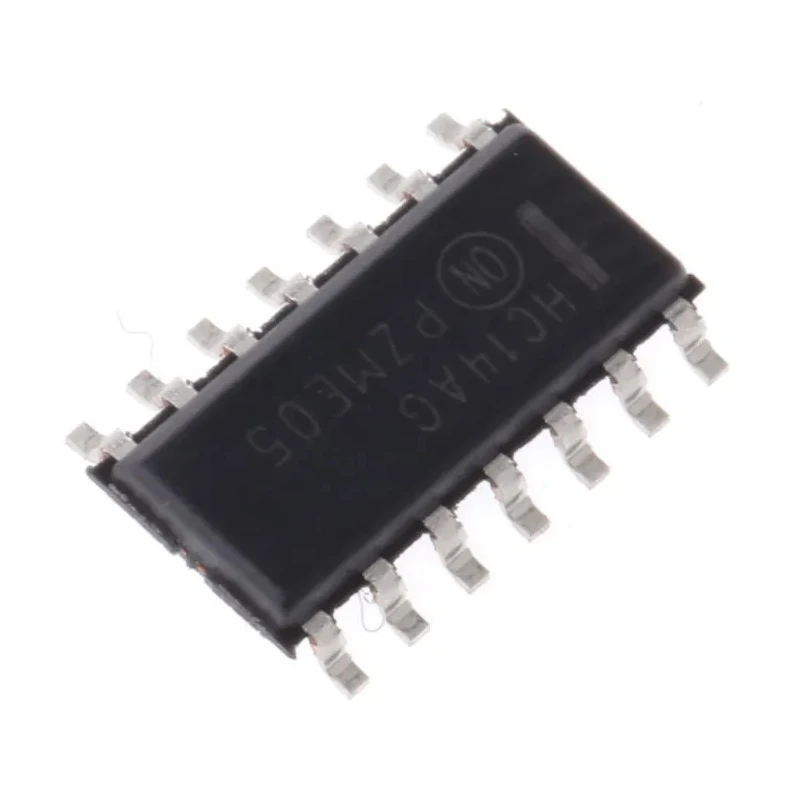

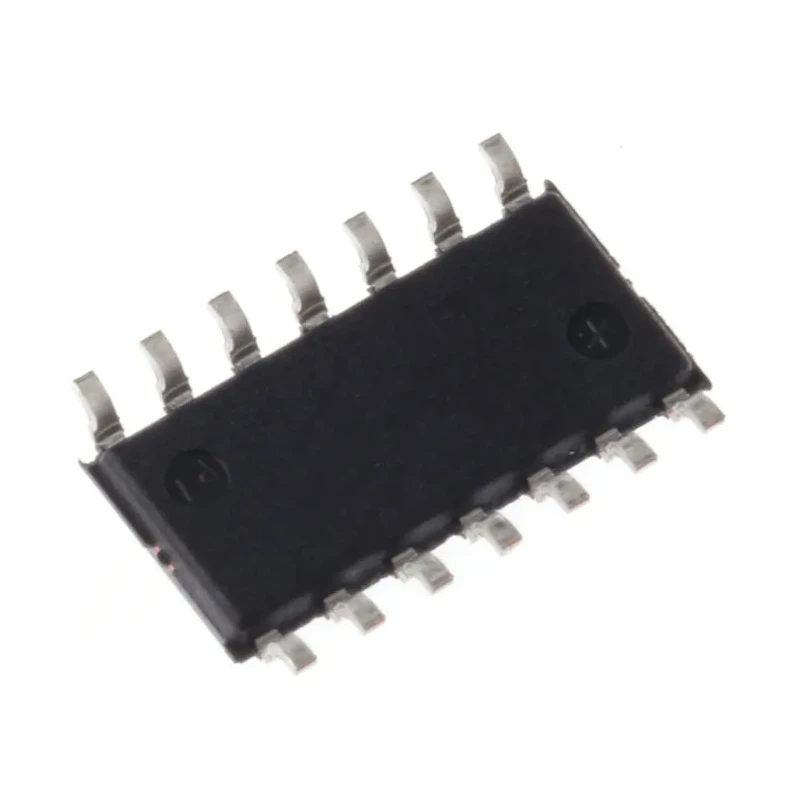

onsemi Schmitt Trigger Input Inverter Logic IC 6 Elements, 14-Pin SOIC Surface Mount 2 to 6 V Operating Voltage MC74HC14ADR2G

onsemi MC74HC14ADR2G is a high-speed CMOS logic inverter IC featuring Schmitt trigger input configuration. Containing six independent inverters in a compact 14-pin SOIC surface mount package, it is designed for applications requiring signal conditioning and noise immunity enhancement through Schmitt trigger inputs.

This Logic IC operates within a supply voltage range of 2 to 6 volts, making it versatile for various electronic circuits and embedded systems. Its maximum propagation delay time of 110ns ensures timely signal processing suitable for medium-speed digital applications.

With a temperature operating range from -55°C to 125°C, the MC74HC14ADR2G maintains stable performance in industrial and automotive environments. The device meets automotive standard AEC-Q100, assuring reliability in stringent quality-demanding conditions.

Its LSTTL output type supports compatibility with standard TTL logic levels, while input and output compatibility with CMOS logic families facilitates interfacing across different technologies. The maximum high and low-level output currents are -5.2mA and 5.2mA respectively, optimizing drive capability without excessive power consumption.

Typical applications include waveform shaping, signal conditioning, switch debounce circuits, and oscillator designs. The surface mount SOIC package supports efficient PCB assembly in compact electronics manufacturing.

This inverter IC operates at 2 to 6 volts supply voltage range. Contains six Schmitt trigger inverters per chip for noise immunity. Surface mount 14-pin SOIC package for ease of integration. Maximum propagation delay time of 110 nanoseconds.

Wide operating temperature range of -55°C to 125°C ensures reliability. Compatible with CMOS and LSTTL logic families for versatile use. Automotive standard AEC-Q100 certification guarantees quality standards.

The onsemi MC74HC14ADR2G inverter logic IC is an essential component for industrial, automotive, telecommunications, and consumer electronic applications that require clean, stable digital signal processing. Explore the comprehensive range of semiconductor products available on EnvMart for your electronic design requirements.
