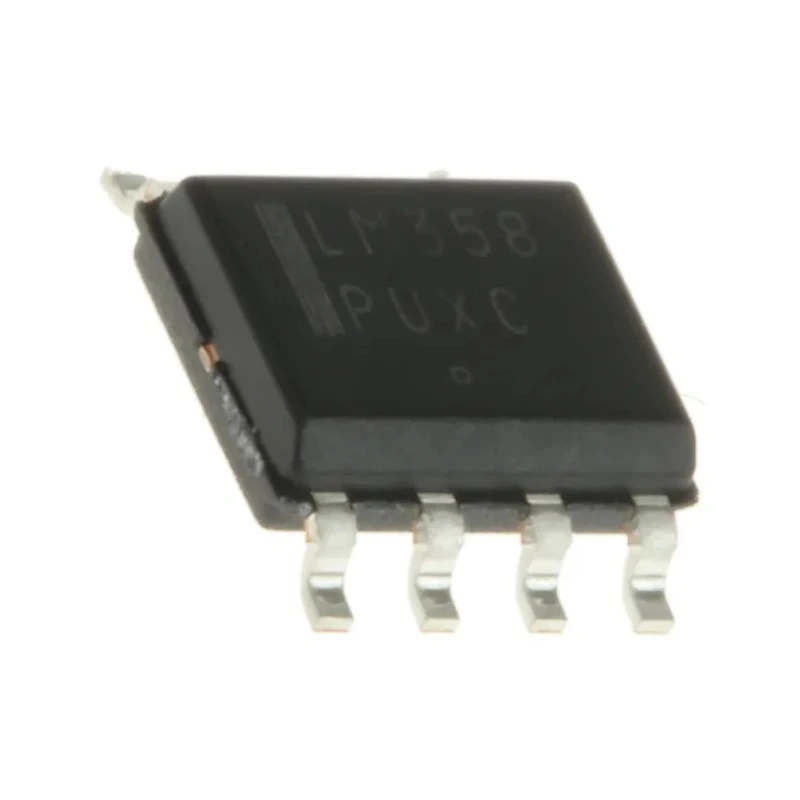

onsemi Operational Amplifier Dual Channel 8-Pin SOIC 5V-32V LM358DR2G

onsemi LM358DR2G is a high-performance dual operational amplifier designed for industrial and commercial electronic systems. Encased in an 8-pin SOIC surface mount package, this op amp supports a wide supply voltage range from 5V up to 32V, allowing flexible deployment in various circuit configurations.

The device's true differential input stage delivers precise amplification with low input bias currents, thus enhancing signal fidelity. Internally compensated for stable operation, the LM358DR2G includes ESD protection clamps on all input pins, safeguarding the amplifier against electrostatic discharge damage.

The common mode input voltage range extends to the negative power supply, eliminating the need for external biasing components, simplifying circuit design. It can handle temperatures from 0°C to 70°C, making it suitable for standard operating environments.

The compact package size of 5mm length, 4mm width, and 1.5mm height supports dense PCB layouts in compact electronic devices. With a maximum output current capability of 40mA, this operational amplifier is well suited for driving a range of loads and interfacing with other system components.

Compliance with the automotive AEC-Q100 standard affirms its reliability in automotive and other harsh industrial environments. Key applications for the LM358DR2G include integrator circuits, voltage regulators, comparators, current regulators, and voltage clamps.

The device features true differential inputs for precise signal processing. Low quiescent current operation reduces power consumption in battery-operated devices. Wide supply voltage range supports flexible design requirements.

Internal compensation ensures stability across operating conditions. ESD protection enhances device reliability and lifespan. Automotive standard AEC-Q100 compliance suitable for demanding environments. Compact SOIC package facilitates space-saving PCB designs.

Ideal for industrial, laboratory, commercial, and automotive electronic applications. Explore additional Operational Amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart for diverse industrial and commercial needs.
