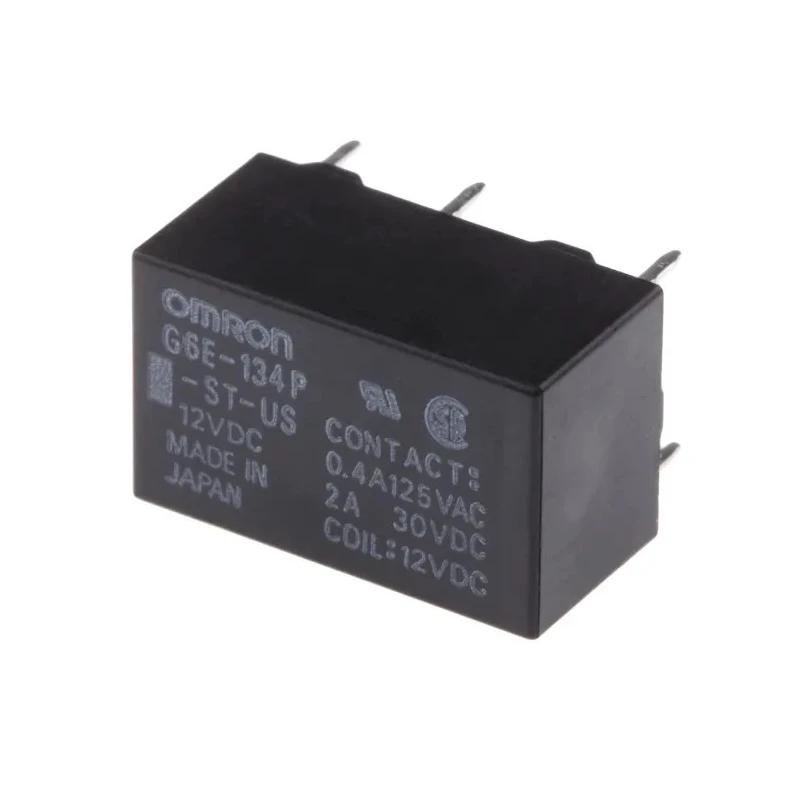

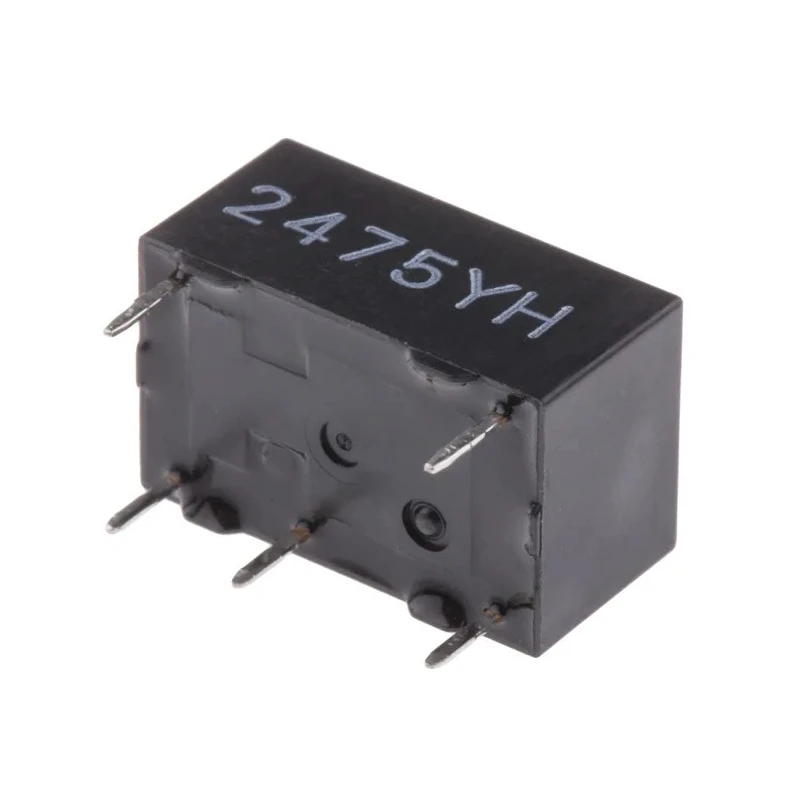

Omron PCB Power Relay 12V DC Coil 3A Switching Current SPDT G6E-134P-ST-US 12DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8.4mm |
| Length | 16mm |
| Model | G6E-134P-ST-US 12DC |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA, RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- Subminiature signal relay designed for PCB mounting.
- Has gold-plated contacts ensuring reliable conductivity.
- Fully sealed for immersion cleaning of PCBs.
- Operating temperature range from -40°C to 70°C.
- Complies with UL, CSA, and RoHS standards.
- Impulse withstand voltage meets FCC Part 68 requirements.
- Coil resistance is 720 ohms with coil power of 200 mW.
- Compact dimensions of 16 mm length, 9.9 mm width, and 8.4 mm height.
Product Description
Omron G6E-134P-ST-US 12DC PCB Power Relay is a high-quality subminiature signal relay with a 12V DC coil and Single Pole Double Throw (SPDT) contact configuration. It is designed specifically for printed circuit board (PCB) mounting, making it ideal for automated electronic systems and industrial control circuits.
This relay is equipped with gold-plated contacts to ensure excellent conductivity and durability in switching applications with currents up to 3 amperes. The relay's fully sealed construction allows for immersion cleaning of PCBs, enhancing reliability and maintenance efficiency.
The relay operates across a wide temperature range of -40°C to 70°C, suitable for harsh industrial environments. Its coil resistance is precisely 720 ohms, consuming 200 milliwatts of power when energized.
With compact dimensions of 16 mm in length, 9.9 mm in width, and 8.4 mm in height, it fits efficiently in space-constrained applications. The relay supports switching voltages of 220V DC and 250V AC, making it versatile for various electrical loads.
Certified to meet UL, CSA, and RoHS standards, this Omron power relay meets stringent quality and environmental requirements. It also meets FCC Part 68 impulse withstand voltage standards, ensuring robustness against electrical surges.
Subminiature signal relay designed for PCB mounting. Gold-plated contacts for reliable conductivity. Fully sealed housing for immersion cleaning capability. Operating temperature range from -40°C to 70°C. Compliant with UL, CSA, and RoHS standards.
Meets FCC Part 68 impulse withstand voltage requirements. Coil resistance of 720 ohms with 200 mW coil power consumption. Compact dimensions: 16 mm x 9.9 mm x 8.4 mm (LxWxH). Switching voltage capacity of 220V DC and 250V AC.
Ideal for industrial, automation, and electrical system use.
This power relay is widely used in industrial automation systems, electrical equipment controls, and PCB-based electrical circuit designs. Its robust construction and precise specifications ensure dependable switching performance in diverse applications.
Browse the Electronics & Electricals category at EnvMart for additional Power Relays and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
This model can handle a maximum switching current of 3A.
The dimensions of this relay are 16 mm in length, 9.9 mm in width, and 8.4 mm in height.
It uses a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 70°C.
The coil resistance is 720 ohms.
This relay complies with UL, CSA, and RoHS standards.
The coil power consumption is 200 mW.
It supports switching voltages of 220V DC and 250V AC.
The contacts are made of gold-plated material to ensure reliable conductivity.
This relay is designed for PCB mounting.
The country of origin for this product is Japan.
