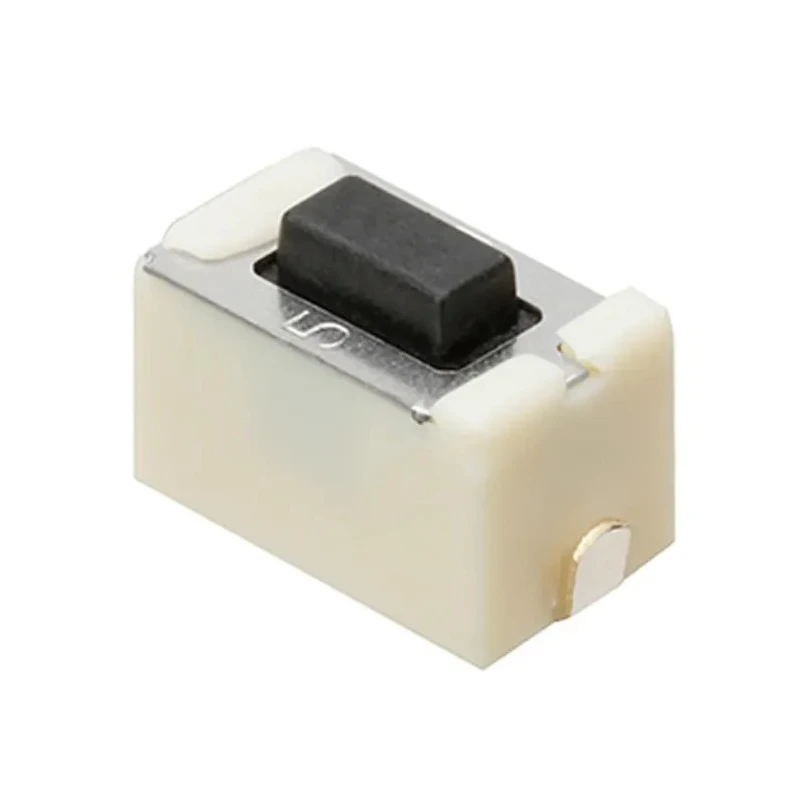

Panasonic IP67 Black Tactile Switch Push Plate 3 mm SPST 20mA 15 V dc Surface EVQ5PN05K

Panasonic EVQ5PN05K is a high-quality IP67 rated tactile switch push plate designed for robust and reliable switching in demanding electronics applications. This SMT switch provides a small form factor with a 3 mm actuator length and a sharp, tactile click typical of Panasonic's EVP and EVQ series.

Featuring a single pole single throw (SPST) configuration with a momentary switch operation, it is ideal for use in devices requiring a durable, momentary input with a contact rating of 20mA at 15 V dc. The black push plate actuator is straight oriented and surface-mounted using J-bent terminals, facilitating easy PCB assembly in industrial electronics.

Its mechanical design supports an operating temperature range from -30°C to +85°C, making it suitable for a wide range of industrial, automation, and control system applications. The switch operates with a tactile force of 2.4 newtons, producing a firm yet comfortable actuation feel while maintaining a long mechanical lifespan of 300,000 operations.

With an IP67 ingress protection rating, the switch is dust-tight and water resistant, ensuring reliable performance in harsh environments such as industrial automation systems, electrical equipment controls, and manufacturing instrumentation.

The compact size of 6 mm length, 3.5 mm width, and 5 mm height allows integration into space-constrained PCB layouts. It complies with RoHS environmental standards ensuring electrical safety and regulatory compliance.

Black push plate actuator with 3 mm length provides precise tactile response. SPST momentary switch type suits a variety of electronic control applications. Surface mount with J bend terminals supports automated PCB assembly.

Temperature range from -30°C to 85°C for wide usability. Mechanical life of 300,000 operations ensures durability. IP67 rating protects against dust and water for industrial use. Operating force of 2.4N balances actuation firmness and usability.

Compact dimensions fit in tight device enclosures. RoHS compliant for environmental and user safety.

This Panasonic tactile switch EVQ5PN05K is a reliable choice for electronic, industrial automation, and control systems requiring robust, long-life push button switches with tactile feedback and environmental protection.
