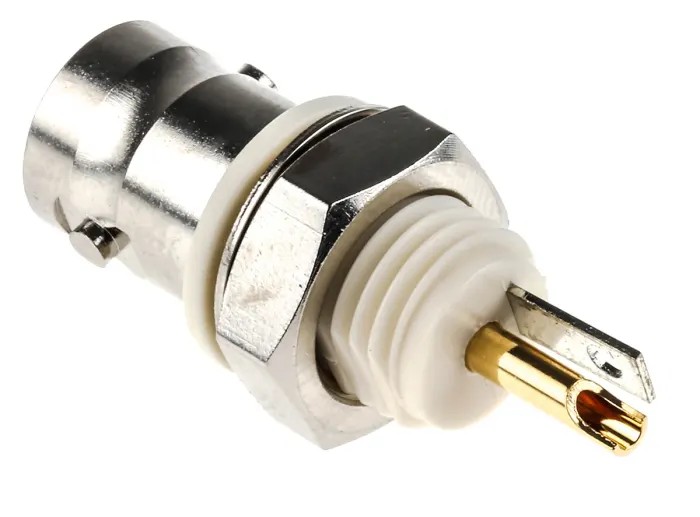

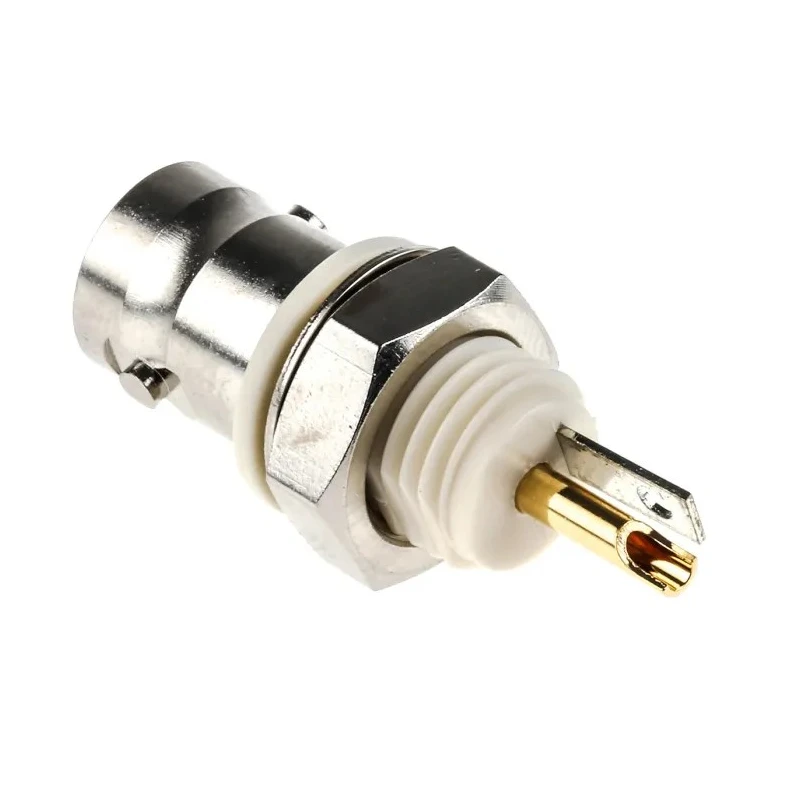

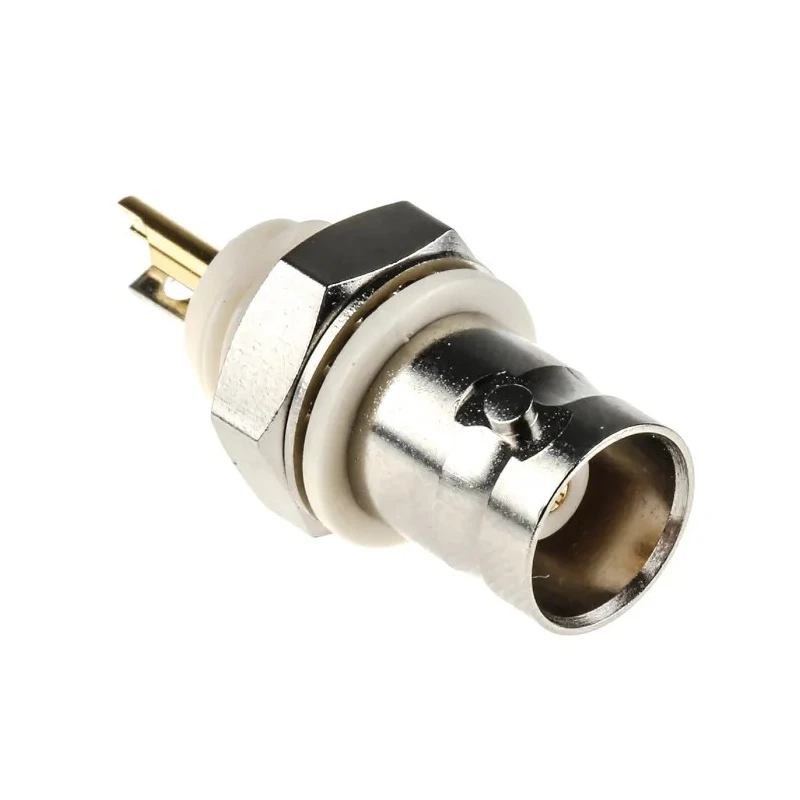

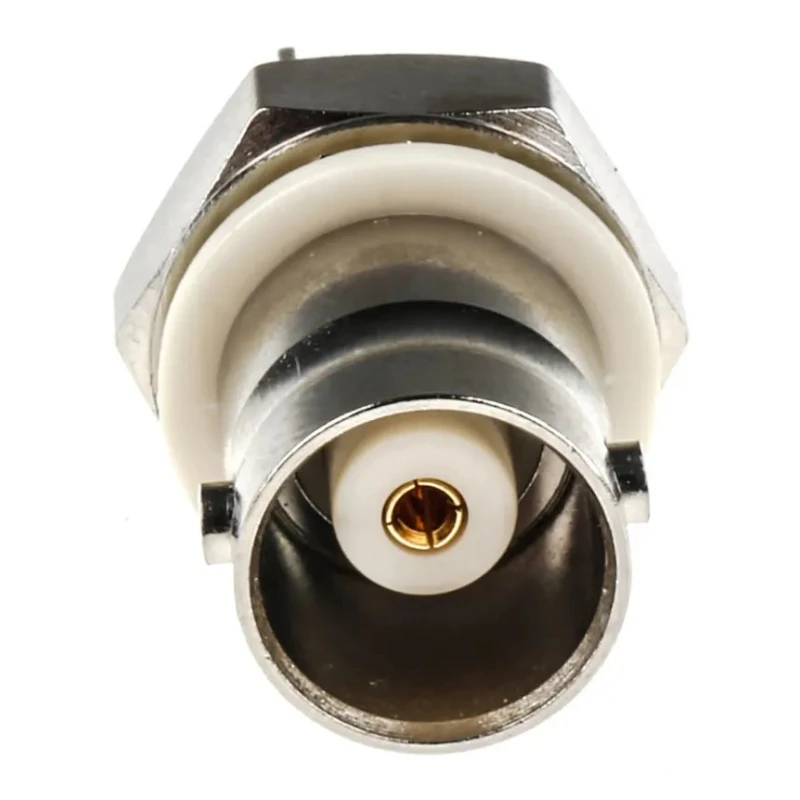

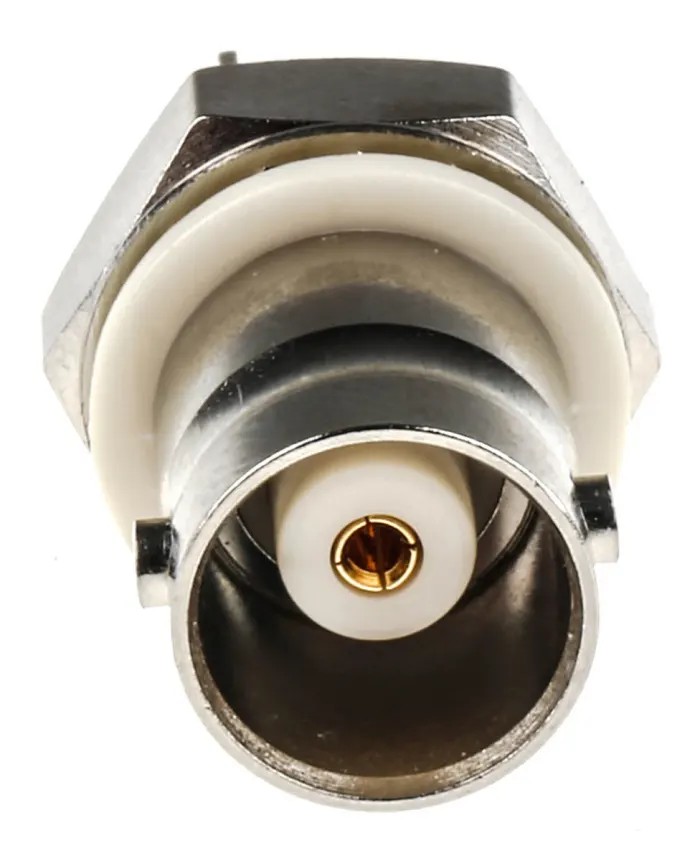

TE Connectivity BNC Series Coaxial Connector Panel Mount Female, 50 Ω, Straight Body Solder 1-1337452-0
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- This panel mount coaxial connector features a female contact gender design.
- It supports operation up to a frequency of 4 GHz with a minimum temperature of -55°C and maximum temperature of 85°C.
- The connector body is plated with nickel, and contact material is brass with gold plating for reliable conductivity.
- It includes a bulkhead mounting with hex nut retention and a D-shape panel cut-out for professional-grade mounting.
- The termination type is solder, ensuring secure and stable connections.
- This product is made in China and conforms to industry standards without specific approvals listed.
Product Description
TE Connectivity 1-1337452-0 BNC Series Coaxial Connector is a professional-grade panel mount female coaxial connector designed for RF applications requiring 50 ohm impedance.
Featuring a straight body solder termination, this connector supports operating frequencies up to 4 GHz, making it suitable for high-frequency signal transmissions in industrial, telecommunications, and testing environments.
The connector’s brass body and contacts are carefully plated with nickel and gold respectively, enhancing durability and conductivity even under demanding temperature ranges from -55°C to 85°C.
The panel mount design includes a bulkhead with hex nut retention and a D-shape panel cut-out, facilitating robust mechanical mounting and easy installation on panels or enclosures.
The solder termination type ensures reliable electrical connection and mechanical strength, suitable for assembly in electronic devices, measurement instruments, and communication equipment.
This connector features a female contact gender with normal polarity. It is built to industry standards with a standard size form factor. Its sturdy nickel plating on the body prevents corrosion and extends service life.
Gold-plated brass contacts provide excellent electrical performance and resistance to wear. Its wide operating temperature range allows use in harsh environments. Applications include industrial RF circuitry, laboratory test benches, telecommunication hardware, and broadcasting equipment requiring stable and precise coaxial connections.
Country of origin is China. Explore more TE Connectivity Coaxial Connectors and panel mount solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector supports a maximum operating frequency of 4 GHz.
It operates within a temperature range of -55°C to 85°C.
The connector features a solder termination type, ensuring secure and stable connections.
The body is plated with nickel, while the contacts are made of brass with gold plating for enhanced conductivity.
It is designed for panel mount installation, featuring a bulkhead with hex nut retention and a D-shape panel cut-out.
This model has an impedance of 50 ohms, suitable for RF applications.
The connector has a female contact gender design.
The wide operating temperature range of -55°C to 85°C allows for use in harsh environments, but specific outdoor suitability is not detailed.
It is suitable for applications in industrial RF circuitry, laboratory test benches, telecommunication hardware, and broadcasting equipment.
This connector is manufactured in China.
This model features a straight body orientation.
Yes, it is built to industry standards, although specific approvals are not listed.
