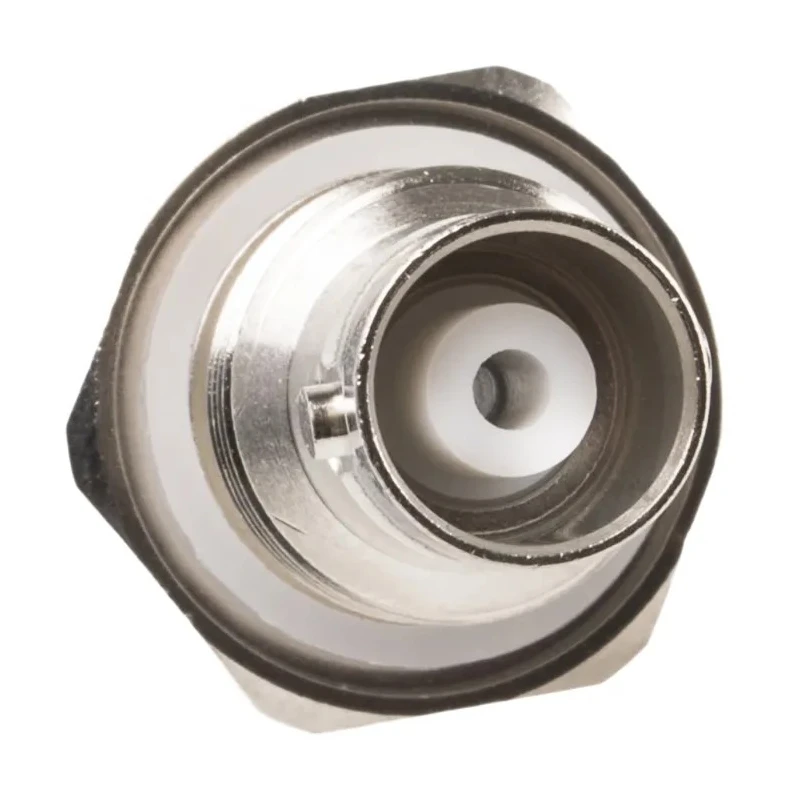

TE Connectivity BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Crimp 1-1337548-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174A/U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Panel mount design with bulkhead feature for secure installation.
- Compatible with RG174A/U, RG188A/U, and RG316/U coaxial cables.
- Nickel plated brass body with gold plated brass female contact for durability and conductivity.
- Supports operating frequency up to 4 GHz for high-frequency signal transmission.
- Crimp termination type ensures a stable and robust cable connection.
- Wide operating temperature range from -65°C to 165°C for harsh environments.
- Standard size with a straight orientation suitable for diverse RF applications.

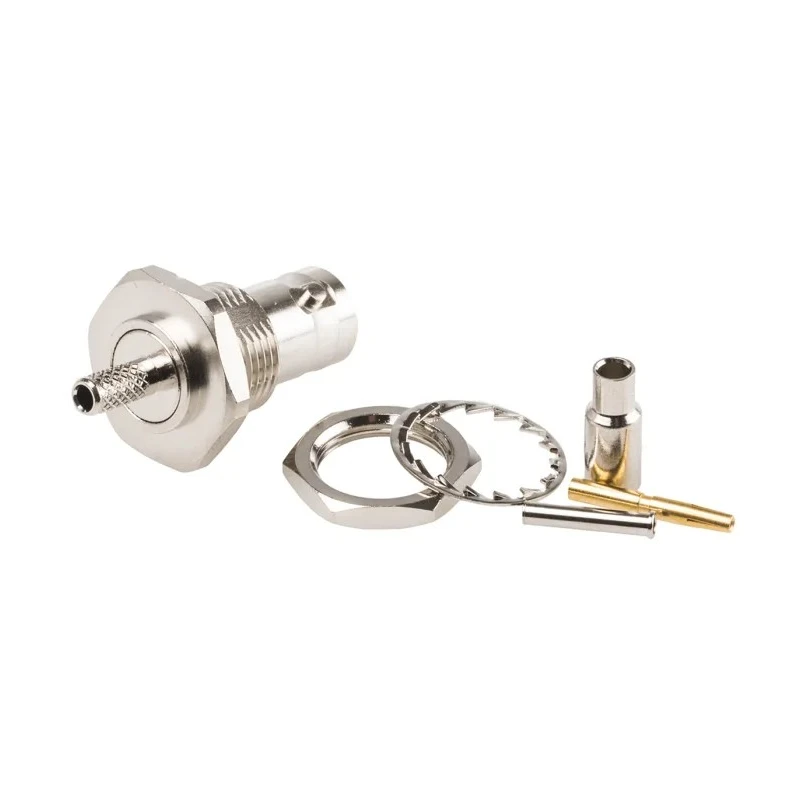

- Includes jam nut, lockwasher, and gasket for reliable mechanical mounting.
Product Description
TE Connectivity 1-1337548-0 BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Crimp offers high-quality, durable connections for RF coaxial systems. Featuring a panel mount bulkhead design, it ensures secure attachment in electronic devices, instrumentation, and communication equipment.
This connector is compatible with RG174A/U, RG188A/U, and RG316/U cables, making it versatile for various cabling needs. The nickel-plated brass body combined with gold-plated brass female contacts ensures excellent corrosion resistance and reliable electrical performance.
Operating comfortably from -65°C to 165°C, this coaxial connector supports frequencies up to 4 GHz, suitable for laboratory, industrial, telecom, and networking applications. The crimp termination type provides a firm and consistent connection reducing signal loss.
The straight body orientation and standard size facilitate ease of installation and compatibility with existing setups. Bulkhead mounting is secured with a jam nut, lockwasher, and gasket, ensuring mechanical stability in demanding environments.
Ideal for use in electronics manufacturing, telecommunications, test and measurement equipment, and RF signal transmission systems. Panel mount design with bulkhead feature for secure installation. Compatible with RG174A/U, RG188A/U, and RG316/U coaxial cables.
Nickel plated brass body with gold plated brass female contact for durability and conductivity. Supports operating frequency up to 4 GHz for high-frequency signal transmission. Crimp termination type ensures a stable and robust cable connection.
Wide operating temperature range from -65°C to 165°C for harsh environments. Standard size with a straight orientation suitable for diverse RF applications. Includes jam nut, lockwasher, and gasket for reliable mechanical mounting.
Explore more Coaxial Connectors and related electronic components in the TE Connectivity range at EnvMart for reliable and professional installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, making it suitable for high-frequency signal transmission.
It is compatible with RG174A/U, RG188A/U, and RG316/U coaxial cables, providing versatility for various applications.
This connector features a crimp termination type, ensuring a stable and robust cable connection to reduce signal loss.
The operating temperature range is from -65°C to 165°C, allowing it to function in harsh environments.
The body is made of nickel-plated brass, while the female contact is made of gold-plated brass, ensuring good conductivity and corrosion resistance.
It features a panel mount design with a bulkhead feature, secured by a jam nut, lockwasher, and gasket for reliable mechanical mounting.
This model has a standard size and a straight body orientation, facilitating ease of installation and compatibility with existing setups.
The impedance of this connector is 50 Ω, making it suitable for RF applications requiring this specification.
The connector has a female contact gender, designed for use with compatible male connectors.
It is ideal for use in electronics manufacturing, telecommunications, test and measurement equipment, and RF signal transmission systems.
The country of origin for this connector is India.
This model includes a jam nut, lockwasher, and gasket, which are necessary for reliable mechanical mounting.
