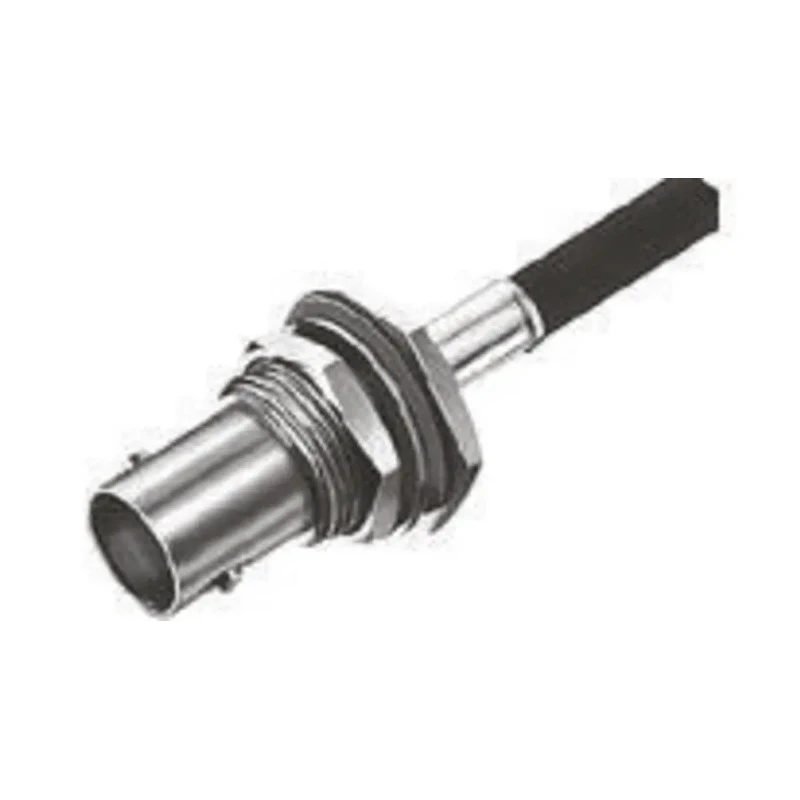

TE Connectivity BNC Series Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body Crimp 1-1337435-0

TE Connectivity 1-1337435-0 BNC Series Panel Mount Female BNC coaxial connector is an industrial-grade electronic component designed for secure and high-performance signal connections in electronic, telecommunications, and instrumentation applications.

This connector features a 75 Ω impedance rating, ensuring minimal signal loss and stable transmission suitable for RF applications up to 2 GHz. The straight body design supports commonly used coaxial cables such as RG140/U, RG210/U, RG59B/U, and RG62A/U, making it versatile for various standard implementations.

The connector body is nickel plated to offer excellent resistance to corrosion and mechanical wear, enhancing durability in demanding environments. Internal contacts are made from brass with gold plating to provide superior electrical conductivity and reliability over prolonged use.

Engineered for panel mounting, the bulkhead type fixture ensures firm and secure installation, essential for industrial setups. Its crimp termination method guarantees a consistent and strong cable attachment, enhancing operational stability in high-vibration scenarios.

Operating temperature ranges between -65°C and 165°C, supporting both industrial and commercial electronics that may face temperature extremes. The normal polarity female contact is optimized for a straightforward and standard connection interface.

Designed for panel mount applications with a female BNC connector type. Supports 75 Ω impedance ensuring efficient signal transmission. Straight body design suitable for various cable types including RG140/U and RG210/U.

Gold-plated brass contacts to prevent corrosion and improve conductivity. Nickel-plated body offers durability and resistance to wear and tear. Operates reliably from -65°C to 165°C temperature range. Crimp termination type facilitates secure cable attachment.

Supports operating frequency up to 2 GHz for high-frequency signals. Includes bulkhead mount for secure panel attachment. Normal polarity with female contact gender.

This Coaxial Connector is ideal for use in industrial electronics, telecommunications equipment, laboratory instruments, and any application requiring robust and reliable RF connections. Its high-quality materials and design contribute to excellent signal integrity and longevity.
