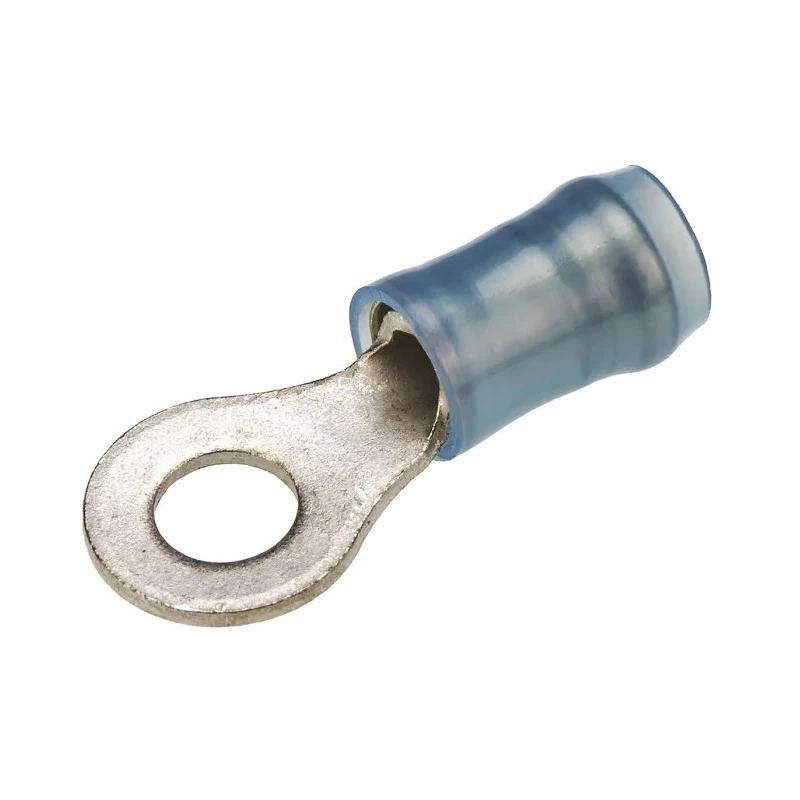

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size, Nylon Insulation, Blue 320565

TE Connectivity 320565 PIDG Insulated Ring Terminal is a precision-engineered wire crimp terminal designed for professional electrical connections in demanding industrial and commercial environments. This ring terminal accommodates wire sizes from 16 AWG to 14 AWG and features an M4 stud size, making it compatible with a range of power connectors.

The terminal consists of a high conductivity copper body and barrel, ensuring efficient transmission of electrical current. A copper sleeve is included inside the barrel to provide additional wire insulation support and prevent wire fraying, while the nylon insulated outer sleeve, colored blue, allows for quick wire size identification and reliable insulation.

Serrations inside the barrel are precisely formed to maximize contact with the wire and provide superior tensile strength after crimping, resulting in uniform and secure connections. The funnelled entry design enhances wire insertion speed and accuracy during high-volume production.

These PIDG ring terminals meet rigorous reliability standards and are applicable in various industrial settings including instrumentation, control panels, lighting systems, power supply installations, transportation equipment, lifting devices, motors, aerospace assemblies, and household appliances.

Constructed with a high conductivity copper body for optimal electrical performance. Features a nylon insulated blue sleeve for easy wire size identification and insulation. Includes a copper sleeve inside the barrel for enhanced wire insulation support and fray prevention.

Serrations within the wire barrel deliver maximum contact and tensile strength after crimping. Funnelled wire entry enables fast and reliable wire insertion during production. Designed for uniform and dependable crimping for consistent electrical connections.

Suitable for applications in instruments, control systems, lighting, power supplies, and panel boxes. Withstands maximum operating temperatures of up to 105°C for durability in various environments.

These high-quality Ring Terminals are an excellent choice for engineers, technicians, and manufacturers requiring dependable, efficient, and easy-to-use wire termination solutions. Browse the Electronics & Electricals category at EnvMart for related power connectors and wire terminals.
