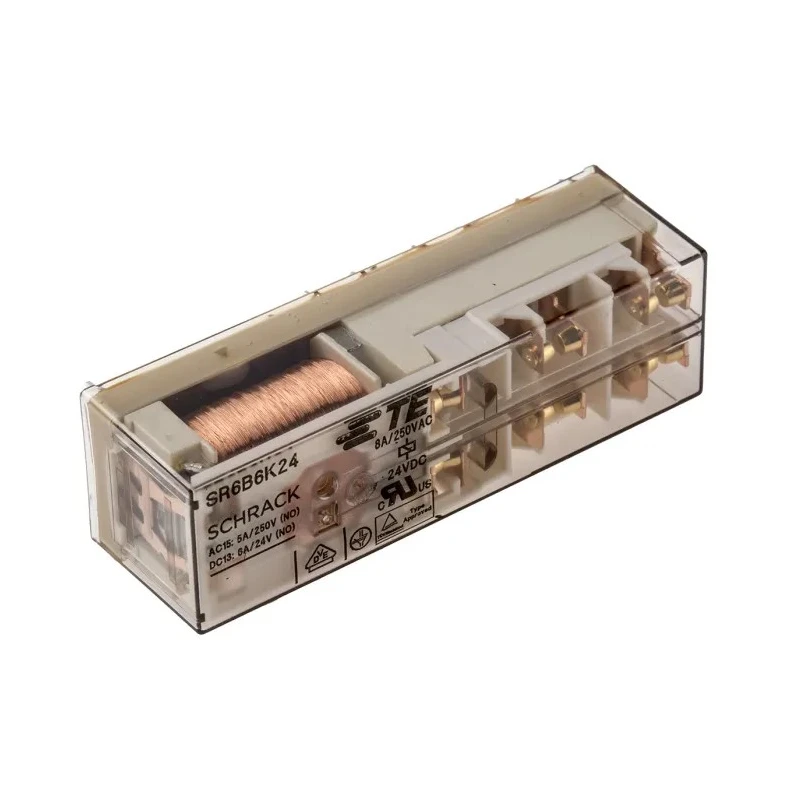

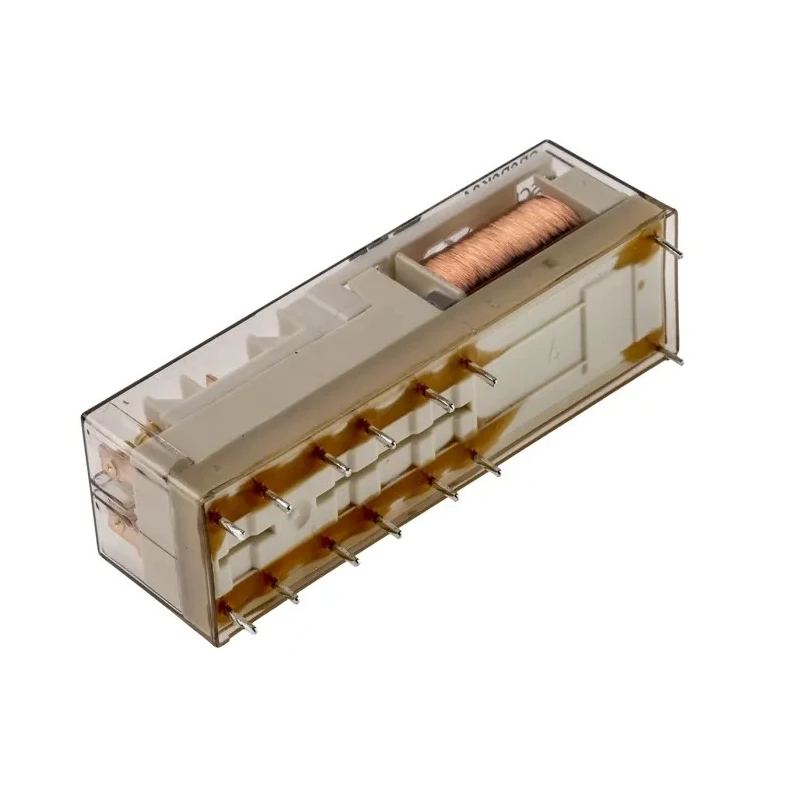

TE Connectivity PCB Mount Force Guided Relay 6-Pole 24V DC Coil SR6B6K24

TE Connectivity SR6B6K24 is a high-quality PCB mount Force Guided Relay tailored for industrial and automation control systems requiring reliable switching performance. Operating at 24V DC coil voltage with six poles, this relay supports complex control circuits in electronics and electrical applications.

The relay features a coil resistance of 720 ohms and consumes only 800mW of power, ensuring low energy usage. It is designed to work efficiently in a broad ambient temperature range from -25°C to 70°C, making it suitable for various industrial environments including manufacturing automation, safety interlocking, and machinery control.

Gold plated contacts provide superior conductivity and durability, enhancing long-term operational reliability. With a coil to contact isolation rating of 4kVrms, it maintains safety standards by preventing electrical interference and protecting sensitive components.

This relay is designed for PCB mounting with solder type terminals, enabling straightforward assembly in compact electronic modules. Its compact size of 55mm length, 16.5mm height, and 16.5mm depth fits well into densely packed boards or control panels.

Built to SR6 series standards, this relay offers configurations such as 4PNO+DPNC or 5PNO+SPNC, facilitating versatile safety and monitoring relay functions in industrial control systems compliant with EN50205 force guided contact requirements.

Manufactured in the Czech Republic, the product ensures compliance with international quality and safety norms. It is ideal for applications in electrical automation, industrial machinery, signal conditioning, and safety relay circuits in laboratory and manufacturing settings.

Features a 24V DC coil voltage with 6 poles for versatile circuit control. Coil resistance is 720 ohms ensuring precise coil operation. Power consumption of coil is 800 milliwatts offering energy efficiency. Suitable for temperatures ranging from -25°C to 70°C for extended usage.

Equipped with gold plated contacts for enhanced conductivity and corrosion resistance. Mounts directly on PCB for compact and secure installation. Isolation voltage of 4kVrms ensures excellent coil to contact insulation.

Compact dimensions: length 55mm, height 16.5mm, depth 16.5mm. Terminals use solder type for efficient electrical connections. Manufactured in Czech Republic adhering to high quality standards. Explore the wide range of TE Connectivity components at EnvMart for reliable electronic and electrical parts designed for demanding industrial environments.
