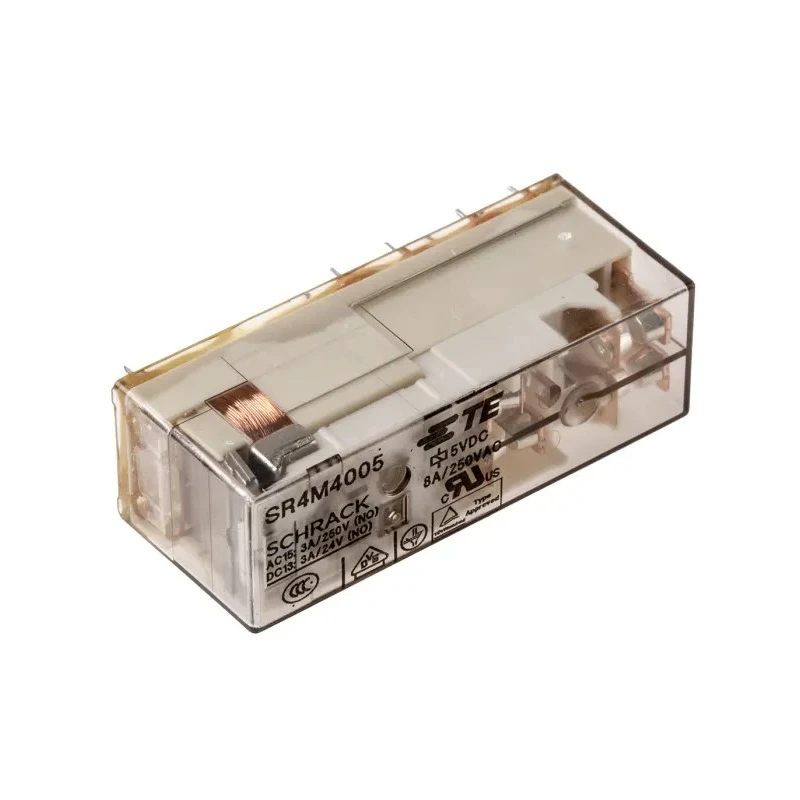

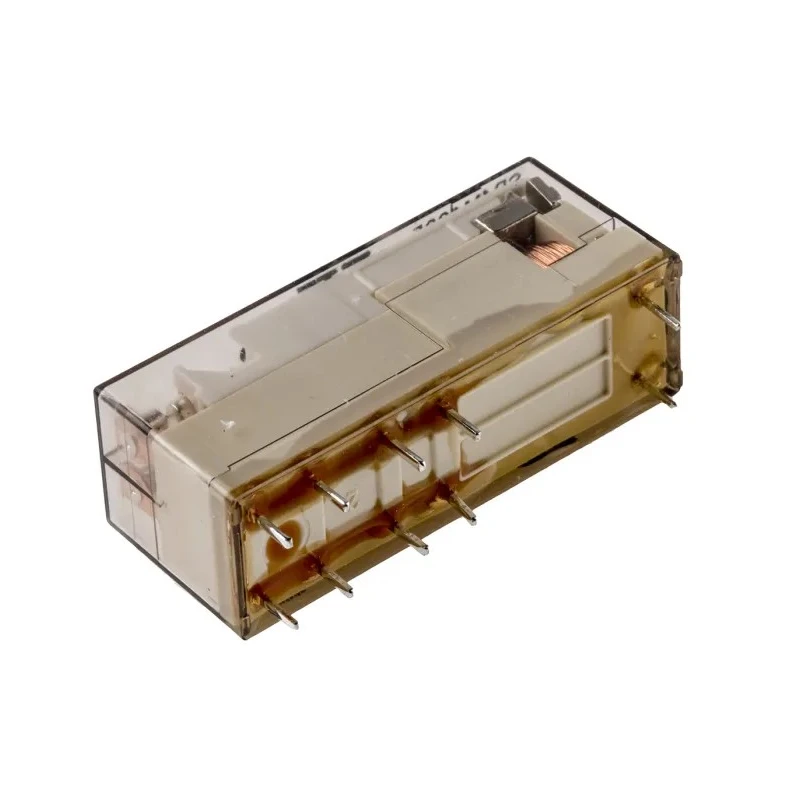

TE Connectivity PCB Force Guided Relay 5V DC Coil Voltage 4-Pole SR4M4005
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 40mm |
| Model | SR4M4005 |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR4M |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 4 |
| Coil Resistance | 31Ω |
| Coil Power | 806mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- This force guided relay is designed for PCB mounting with a compact 40mm length and 16.5mm height.
- It features 4 poles that can be configured as 2N/O + 2N/C or 3N/O + 1N/C contact arrangements.
- The coil resistance is 31 ohms with a coil power of 806 mW ensuring low power consumption.
- The relay operates reliably within a temperature range of -25°C to 70°C, suitable for harsh environments.
- Silver alloy contact material and solder terminal type provide excellent electrical performance and durability.
- Isolation between coil and contacts is rated at 4 kVrms ensuring safe operation in control circuits.
- Compliance with RoHS and conformity to EN50205 standard ensure safety and environmental regulations.
Product Description
TE Connectivity SR4M4005 PCB Force Guided Relay is a high-quality 4-pole relay designed for industrial, automation, electrical, and control system applications. It operates with a 5V DC coil voltage, providing efficient control for PCB-mounted relay solutions. This relay is ideal for safety-related circuit applications requiring force guided contacts compliant with the EN50205 standard.
The relay's 4 poles can be arranged as 2 normally open plus 2 normally closed, or 3 normally open plus 1 normally closed, offering versatile switching configurations. It features a coil resistance of 31 ohms and coil power of 806 milliwatts, balancing energy efficiency with dependable actuation. The robust silver alloy contact material ensures low contact resistance and long operating life.
The product operates reliably over an ambient temperature range from -25°C to 70°C, making it suitable for many industrial environments. Solder terminal connections allow for secure PCB mounting. The coil-to-contact isolation withstands 4 kVrms, providing effective electrical separation for safe circuit operation. RoHS compliant and manufactured in the Czech Republic, this relay meets key environmental and quality standards.
This relay is commonly used in industrial automation, control panels, machinery, manufacturing equipment, and safety systems requiring reliable switching and contact status monitoring.
This Force Guided Relay is designed for PCB mounting with a compact 40mm length and 16.5mm height. It features 4 poles that can be configured as 2N/O + 2N/C or 3N/O + 1N/C contact arrangements. The coil resistance is 31 ohms with a coil power of 806 mW ensuring low power consumption.
The relay operates reliably within a temperature range of -25°C to 70°C, suitable for harsh environments. Silver alloy contact material and solder terminal type provide excellent electrical performance and durability. Isolation between coil and contacts is rated at 4 kVrms ensuring safe operation in control circuits.
Compliance with RoHS and conformity to EN50205 standard ensure safety and environmental regulations. Explore EnvMart's comprehensive selection of industrial relays for your automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 5V DC coil voltage, making it suitable for low-power applications.
This model features 4 poles that can be configured as either 2 normally open plus 2 normally closed (2N/O + 2N/C) or 3 normally open plus 1 normally closed (3N/O + 1N/C).
The isolation between the coil and contacts is rated at 4 kVrms, ensuring safe operation in control circuits.
It operates reliably within a temperature range of -25°C to 70°C, suitable for harsh environments.
The coil resistance is 31 ohms, which contributes to its low power consumption.
The coil power is 806 mW, ensuring efficient operation.
This relay is designed for PCB mounting, allowing for easy integration into electronic circuits.
The contacts are made of silver alloy, providing excellent electrical performance and durability.
The relay has a length of 40mm, a height of 16.5mm, and a depth of 13mm.
Yes, it is RoHS compliant and conforms to the EN50205 standard, ensuring safety and environmental regulations are met.
It features solder terminals, which allow for secure connections on a PCB.
The relay is manufactured in the Czech Republic, ensuring adherence to quality standards.
