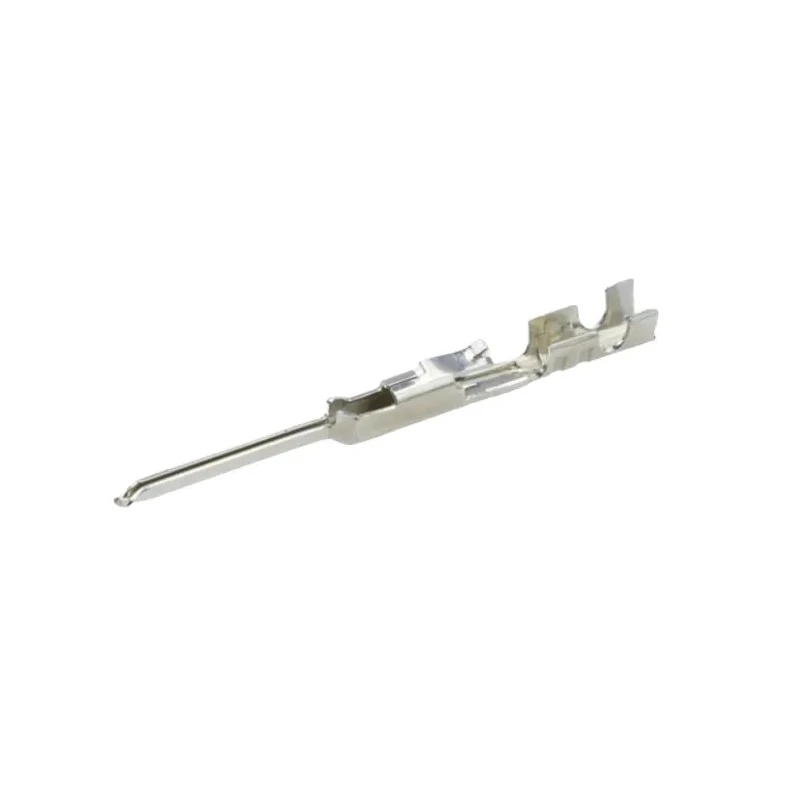

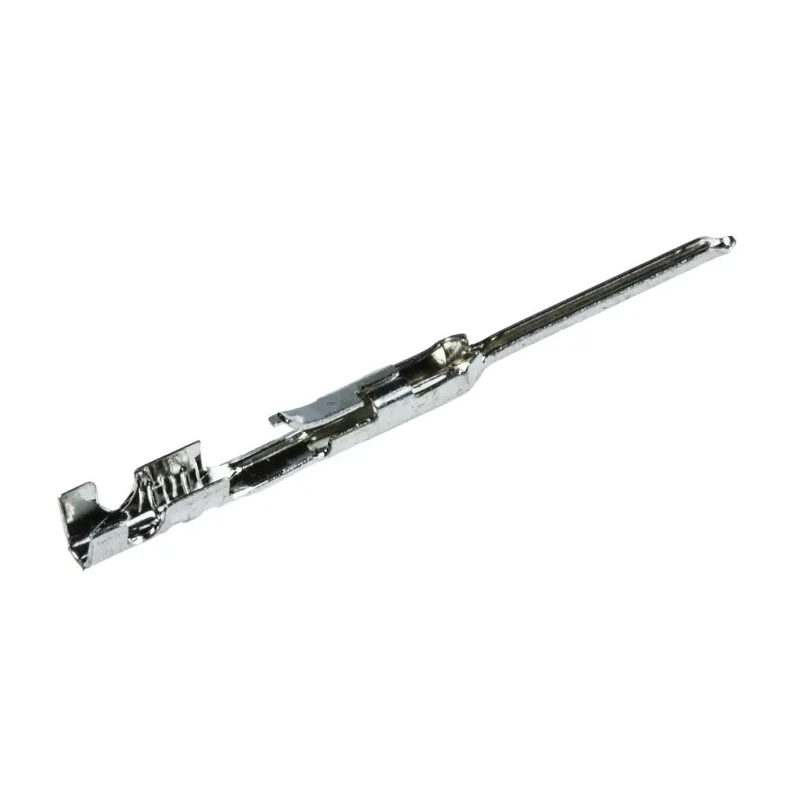

Molex 70021 Series Male Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max, Tin Plated Phosphor Bronze Contacts 16-02-0114
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 70021 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Constructed with durable phosphor bronze contact material.
- Tin plating provides excellent conductivity and corrosion resistance.
- Supports current rating up to 3A for efficient signal transmission.
- Operates effectively in temperature ranges from -40°C to 105°C.
- Specifically designed for use with SL connector housings.
- Male gender contact type suitable for specific electrical applications.
- Contact resistance maximum of 15 milliohms ensures minimal signal loss.
- Ideal for automation, electronics, and electrical industry applications.
Product Description
Molex 16-02-0114 is a male crimp terminal from the 70021 series designed for use with SL connector housings. It features phosphor bronze contact material with tin plating that ensures durable and reliable electrical connections. The terminal supports wire sizes ranging from 24 AWG (minimum) to 22 AWG (maximum), making it versatile for various electric signal wiring.
This crimp terminal supports a current rating of 3 amperes and operates efficiently within a wide temperature range from -40°C to 105°C, suitable for demanding industrial environments. Its low maximum contact resistance of 15 milliohms minimizes signal loss and guarantees performance stability.
The Crimp Terminal uses a crimp termination type for secure attachment to wires. The male gender design fits specific applications in automation, electronics, and electrical sectors, enhancing connectivity options in signal transmission systems.
Manufactured in the United States, this terminal meets quality standards and is built for durability with high-performance materials. It serves critical roles in industrial, electronic, and electrical wiring assemblies where dependable connections are necessary.
Durable phosphor bronze contact material for long-lasting performance. Tin plating provides corrosion resistance and improved conductivity. Compatible with SL connector housings for versatile use. Supports wire sizes from 0.2 mm² (24 AWG) to 0.3 mm² (22 AWG).
Operating temperature range suitable for harsh environments. Maximum contact resistance of 15 milliohms supports efficient signal flow. Rated for 3A current applications in signal and electronic systems. Crimp termination for secure mechanical and electrical connection.
Ideal for automotive, automation, and electrical equipment assembly. Explore a wide range of electrical connectors and terminals across the catalog to find components suited for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 3 amperes, making it suitable for efficient signal transmission in various applications.
It is designed to accommodate wire sizes ranging from 24 AWG (0.2 mm²) to 22 AWG (0.3 mm²).
The maximum operating temperature for this terminal is 105°C, allowing it to function effectively in demanding environments.
It operates efficiently in temperature ranges as low as -40°C, suitable for harsh conditions.
The maximum contact resistance is 15 milliohms, which helps minimize signal loss during operation.
This terminal utilizes a crimp termination type for secure mechanical and electrical connections to wires.
The contacts are made from phosphor bronze, which provides durability and reliable electrical connections.
It is specifically designed for use with SL connector housings, enhancing compatibility in electrical applications.
This model features a male gender contact type, suitable for specific electrical applications.
This terminal is manufactured in the United States, adhering to quality standards for electrical components.
It is ideal for use in automotive, automation, and electrical equipment assembly, enhancing connectivity options in signal transmission systems.
Specific dimensions and weight details are not provided, but it is designed to fit standard SL connector housings.
