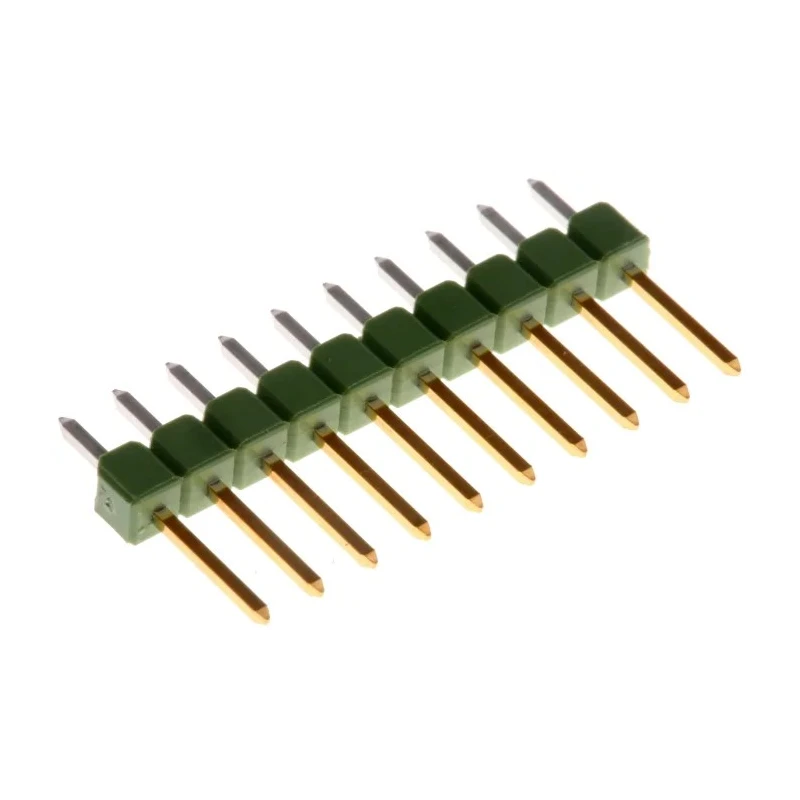

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row 1-826629-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Designed with a single row of 10 contacts for reliable connections.
- Unshrouded straight pin header suitable for through-hole mounting.
- Contact material is brass with gold plating for durability and conductivity.
- Operating voltage rated at 750V and current of 3A.
- Wide operating temperature range from -65°C to 105°C for robust performance.
- Features a 3.2 mm tail pin length and 6.7 mm mating pin length.
- Housing made from Polybutylene Terephthalate for high mechanical strength.
- Compatible with board-to-board and wire-to-board connector systems.
Product Description
TE Connectivity 1-826629-0 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality electronic component designed for reliable board-to-board and wire-to-board connections. Featuring 10 gold-plated brass contacts arranged in a single row with a pitch of 2.54 mm, this unshrouded pin header is ideal for robust soldering applications using through-hole mounting methods.
The robust Polybutylene Terephthalate housing ensures excellent mechanical stability and durability under a wide operating temperature range from -65°C to 105°C. Its electrical ratings include a voltage limit of 750V and a current carrying capacity of 3A, making it suitable for various electronic and industrial applications.
This pin header features precise termination with a 3.2 mm tail pin length and a 6.7 mm mating pin length, ensuring optimal electrical contact and mechanical fit. Its unshrouded design offers versatility in layout and assembly options for automated or manual productions.
Common applications include automotive control systems, industrial and test equipment, computers, telecommunications infrastructure, medical instruments, and storage devices. This component integrates seamlessly into PCB assemblies for commercial, industrial, and laboratory instrumentation.
Designed with a single row of 10 contacts for reliable connections. Unshrouded straight pin header suitable for through-hole mounting. Contact material is brass with gold plating for durability and conductivity. Operating voltage rated at 750V and current of 3A.
Wide operating temperature range from -65°C to 105°C for robust performance. Features a 3.2 mm tail pin length and 6.7 mm mating pin length. Housing made from Polybutylene Terephthalate for high mechanical strength. Compatible with board-to-board and wire-to-board connector systems.
Versatile for use in automotive, industrial equipment, telecommunications, and medical instruments. Through hole mount type ensures secure PCB installation.
TE Connectivity products are renowned for their reliability and advanced engineering, making this AMPMODU MOD II series pin header a dependable choice for industrial and commercial electronics manufacturing. Explore EnvMart for more electronic connector components and industrial solutions.
Explore more products in our PCB Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
It has a current carrying capacity of 3A.
The contacts are made of brass with gold plating, while the housing is made from Polybutylene Terephthalate.
The pitch size of this pin header is 2.54 mm.
The operating temperature range is from -65°C to 105°C.
This pin header features 10 contacts arranged in a single row.
It supports through-hole mounting.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
It is compatible with board-to-board and wire-to-board connector systems.
This pin header uses solder termination type.
It is suitable for applications in automotive control systems, industrial equipment, telecommunications, and medical instruments.
