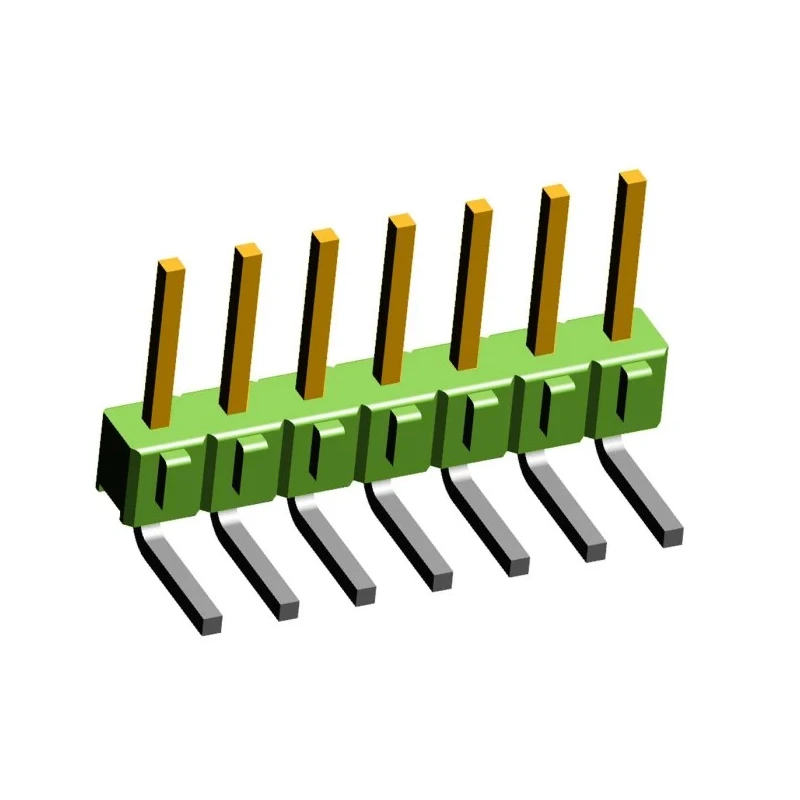

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 7 Contacts, 2.54 mm Pitch, 1 Row, Brass 826652-7

TE Connectivity 826652-7 is a high-quality AMPMODU MOD II Series right angle through hole pin header featuring 7 contacts arranged in a single row with a standard 2.54 mm pitch. This pin header is designed for reliable board-to-board and wire-to-board connections in a variety of demanding industrial environments.

Constructed from brass contacts with gold plating, this unshrouded pin header delivers excellent electrical conductivity and corrosion resistance, ensuring long service life even in harsh conditions. The connectors are mounted using through-hole technology and terminated by soldering, providing strong mechanical and electrical connections.

With a voltage rating of 750V and current capacity of 3A, the header can support moderate power requirements reliably. Its right angle orientation allows for compact PCB assembly and optimized space utilization, while the contact pitch of 2.54 mm matches most industry standard sockets and connectors.

The contact design includes a tail pin length of 3.2 mm for secure PCB insertion and a mating pin length of 5.8 mm, supporting solid mechanical retention when paired with mating connectors. It can operate safely across a temperature range from -65°C to 105°C, making it suitable for automotive, telecommunications, medical, and industrial test equipment.

These AMPMODU MOD II pin headers are ideal for automation and control system applications, where reliable, economical, and versatile connectors are essential. The design supports breakaway configurations, allowing the headers to be easily cut to the required size during installation, saving time and reducing labor costs.

This pin header is versatile and can be customized in length by breaking away unused pins. It provides quick and economical installation, reducing assembly times on production lines. Its robust construction ensures reliable performance in rigorous industrial and commercial settings.

Applications include automotive controls, computers, telecommunications, medical instrumentation, and storage equipment. The product is part of the AMPMODU Interconnect system, which is a signal standard for automation and control with modular board-to-board and wire-to-board connectors.

This TE Connectivity pin header provides a proven, high-performance solution for electronic assembly projects requiring precision, durability, and ease of installation. Explore our extensive range of PCB Headers and connectors on EnvMart for your next industrial or commercial electronic design needs.
