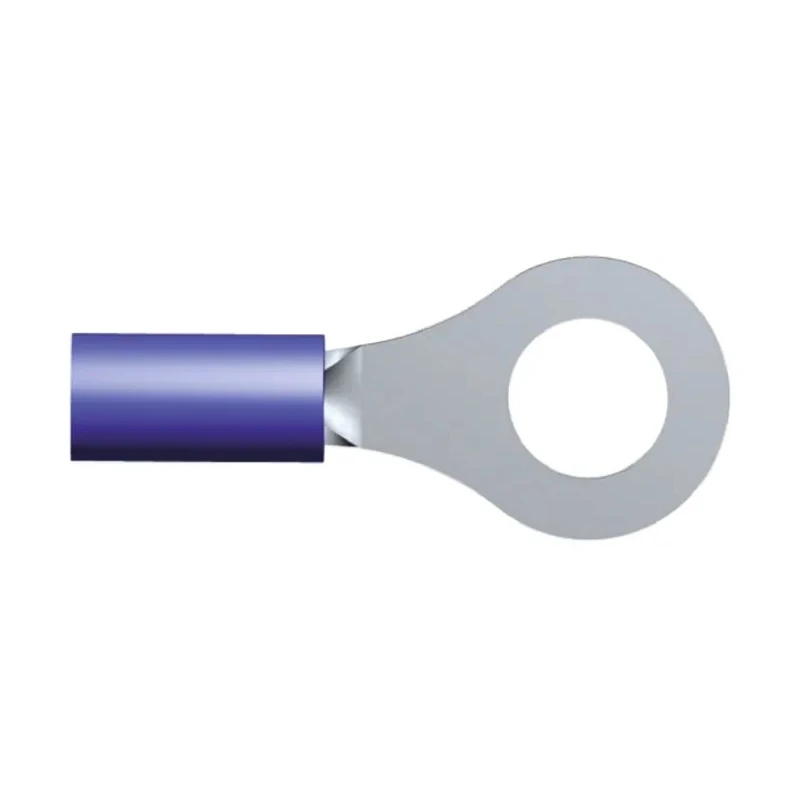

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Nylon Blue 8-321045-1

TE Connectivity 8-321045-1 PIDG insulated ring terminal is designed for reliable and uniform crimping with a high conductivity copper body and precision-formed barrel. The blue nylon insulation sleeve provides easy wire size identification and improved insulation support, making it ideal for electronic and industrial power connections.

This ring terminal features serrations in the wire barrel to provide maximum contact and tensile strength. The copper sleeve inside enhances wire insulation support and prevents wire strand fraying, while its funnelled entry allows for fast wire insertion during high-speed production processes.

With a stud size of M6 and an overall length of 27.38 mm, this ring terminal suits wire sizes ranging from 16 AWG to 14 AWG (1 mm² to 2.6 mm²), and has a contact plating of tin on the copper contact material. The terminal is insulated with durable nylon material, colored blue for easy application identification.

These PIDG terminals are widely used across industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electrical wiring tasks. They meet or exceed the demanding MIL-T-7928 Type II, Class 1 and 2 standards, ensuring suitability for control instruments, lighting, panel boxes, transportation equipment, lifting devices, motors, aerospace assemblies, and household appliance wiring.

Constructed from high conductivity copper for efficient electrical performance. Incorporates a copper sleeve inside the wire barrel for insulation durability and prevention of wire fraying. Precision serrations in the wire barrel ensure a secure and strong crimped connection.

Blue nylon insulation sleeve provides clear wire size identification and robustness. Funnelled entry design allows for fast and reliable wire insertion in manufacturing. Compatible with wire sizes 16 AWG (1 mm²) to 14 AWG (2.6 mm²) and M6 stud size.

Maximum temperature rating of 105°C supports demanding operational environments. Ideal for use in industrial control panels, HVAC wiring, aerospace, motors, and other heavy-duty electrical applications.

Choose TE Connectivity PIDG Ring Terminals for consistent quality and secure electrical connections, backed by precise manufacturing and trusted material standards. Explore EnvMart's range for similar power connectors and terminals suited to various technical and industrial requirements.
