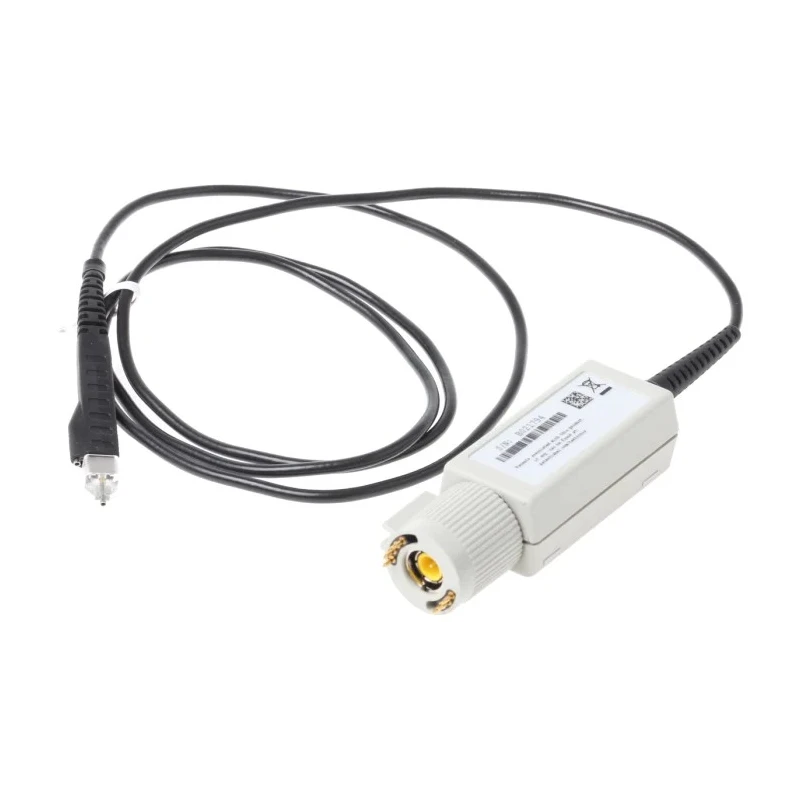

Tektronix Oscilloscope Probe Voltage Type 1.5 GHz Bandwidth 10:1 Attenuation BNC Connector P6245

Tektronix P6245 Oscilloscope Probe is a voltage type active FET probe engineered for high-performance signal acquisition with bandwidth up to 1.5 GHz and attenuation ratio of 10:1. Featuring a BNC connector, it seamlessly integrates with Tektronix oscilloscopes such as TDS600, TDS700, TDS3000, TDS5000, TDS6000, TDS7000, and CSA7000 series. The probe is optimized for low device under test loading with input capacitance below or equal to 1 pF and high input resistance of 1 MΩ, which minimizes signal distortion during measurement.

This probe effectively enables direct and easy access to surface-mount devices (SMDs) down to 0.5 mm pitch, supporting precise probing in dense circuit boards. The rise time of 250 ps guarantees the accurate detection of fast transient signals common in digital systems. Additionally, the design requires no extra power supplies or cables when used with compatible Tektronix oscilloscopes, enhancing convenience and reducing setup complexity.

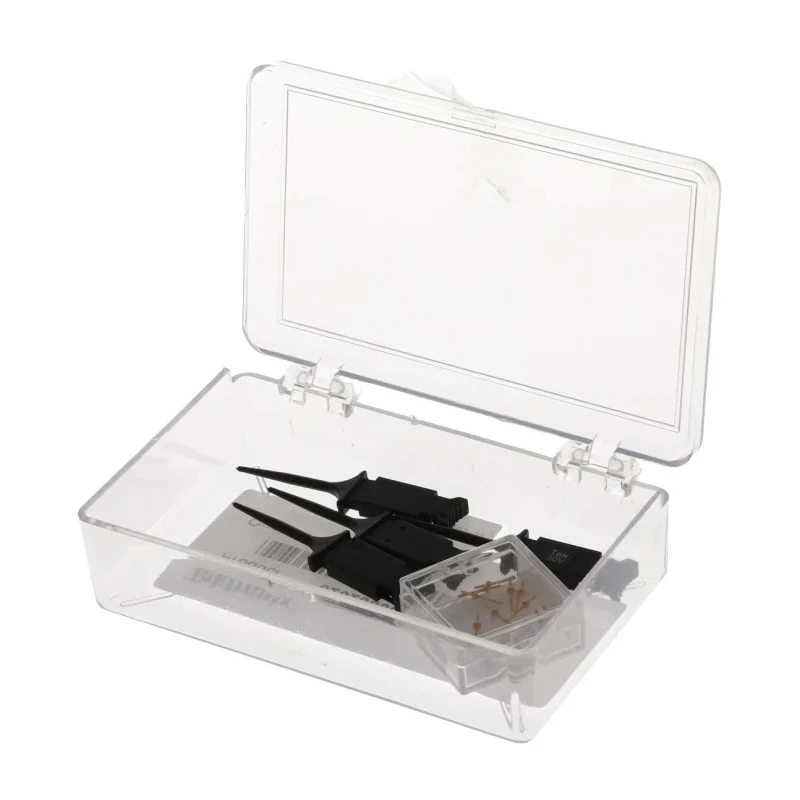

Tektronix P6245 excels in measuring various logic families including CMOS, BiCMOS, ECL, GaAs, and TTL, making it a versatile tool for engineers working in digital system design and debugging. Its compact probe head and versatile attachments facilitate direct device connections while maintaining high signal fidelity.

This probe conforms to ISO 9001 quality standards and is manufactured in the United States, ensuring reliability and performance expected in industrial and laboratory environments.

Probe bandwidth of 1.5 GHz ensures accurate high-frequency signal measurements. 10:1 attenuation ratio for faithful signal representation on oscilloscopes. BNC connector for easy integration with Tektronix oscilloscopes.

Low input capacitance (≤1 pF) and 1 MΩ input resistance minimizes circuit loading. Enables probing of small SMDs with pitches as low as 0.5 mm. Rise time of 250 ps enables fast transient signal capture. No external power requirement when used with TEKPROBE BNC oscilloscopes.

Compatible with multiple digital logic families including CMOS and TTL.

Ideal for industrial, laboratory, telecommunications, digital electronics, and manufacturing testing applications. The Tektronix P6245 is a premium Oscilloscope Probe providing precision and ease for engineering diagnostics and R&D. Explore more measuring and testing instruments on EnvMart for your technical needs.
