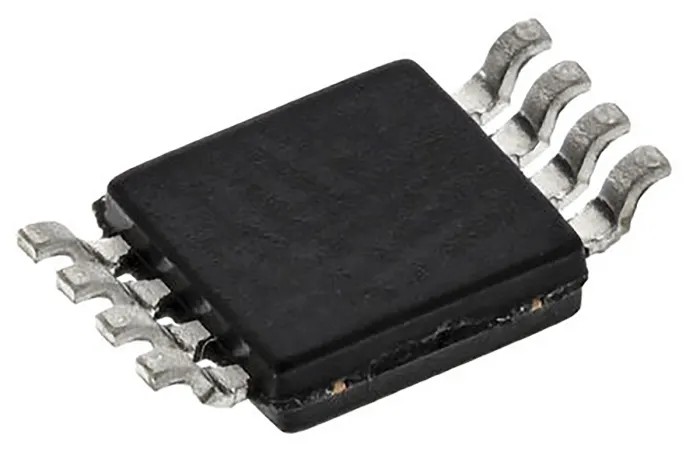

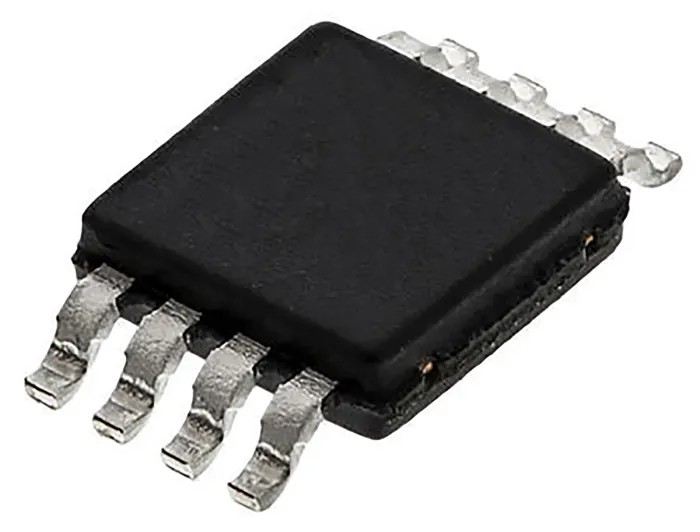

Microchip Operational Amplifier 10 MHz 8-Pin MSOP, 3V-6V, 25mA Output, Dual Channel MCP6292-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.85mm |
| Length | 3mm |
| Model | MCP6292-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6292 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 7V/μs |
Key Features
- 10 MHz gain bandwidth suitable for high-frequency amplification tasks.
- Dual channel operational amplifier in compact 8-pin MSOP package.
- Wide supply voltage range from 3V to 6V allowing flexible applications.
- Extremely low input bias current of 1 pA for high-precision signals.
- High slew rate of 7 V/μs enabling fast response times.
- Supports output current up to 25 mA for driving loads effectively.
- Wide operating temperature range from -40°C to 125°C for automotive and industrial usage.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
Product Description
Microchip MCP6292-E/MS is a dual channel operational amplifier designed for high-frequency and precision analogue applications. Featuring a gain bandwidth product of 10 MHz, it provides excellent performance in compact 8-pin MSOP surface-mount packages. This device supports supply voltages ranging from 3V to 6V, making it ideal for low-power and battery-operated systems.
The ultralow input bias current of 1 pA combined with a typical input offset voltage of 5 mV ensures precise signal amplification with minimal error. A high slew rate of 7 V/μs enables fast output transitions, enhancing performance in dynamic signal environments.
With an output current capacity of 25 mA, the MCP6292-E/MS can effectively drive various loads in both industrial and automotive electronics. Its rugged design supports operation across a broad temperature range from -40°C to 125°C, meeting the requirements for automotive applications with AEC-Q100 qualification. The device also conforms to RoHS directives, supporting environmentally friendly system designs.
Physical dimensions measure 3mm by 3mm with a height of just 0.85mm, facilitating integration into compact printed circuit boards. The MSOP package type and surface mount mount style allow automated assembly and high-density board layout.
This operational amplifier series from Microchip is suitable for diverse applications including industrial motor control, signal conditioning, sensor amplification, battery-powered instrumentation, and automotive systems requiring high reliability and precision.
10 MHz gain bandwidth suitable for high-frequency amplification tasks. Dual channel Operational Amplifier in compact 8-pin MSOP package. Wide supply voltage range from 3V to 6V allowing flexible applications. Extremely low input bias current of 1 pA for high-precision signals.
High slew rate of 7 V/μs enabling fast response times. Supports output current up to 25 mA for driving loads effectively. Wide operating temperature range from -40°C to 125°C for automotive and industrial usage. Complies with RoHS standards ensuring environmentally safe manufacturing.
Automotive grade with AEC-Q100 certification for reliability. Device dimensions: 3mm length, 3mm width, and 0.85mm height. Explore the Microchip product range on EnvMart for high-quality semiconductor solutions tailored to your industrial and automotive electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6292-E/MS has a gain bandwidth product of 10 MHz, making it suitable for high-frequency amplification tasks.
It supports an output current of up to 25 mA, allowing it to effectively drive various loads.
This model operates within a supply voltage range of 3V to 6V, providing flexibility for various applications.
The operational amplifier features an extremely low input bias current of 1 pA, which is beneficial for high-precision signal amplification.
It has a wide operating temperature range from -40°C to 125°C, suitable for both automotive and industrial applications.
The slew rate of this operational amplifier is 7 V/μs, enabling fast output transitions for dynamic signal environments.
The device measures 3mm in length, 3mm in width, and has a height of 0.85mm, facilitating integration into compact circuit boards.
It is packaged in an 8-pin MSOP (Micro Small Outline Package), suitable for surface mounting.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing processes.
The device is qualified under the AEC-Q100 standard, indicating its reliability for automotive applications.
This operational amplifier features two channels, making it a dual channel device.
The typical input offset voltage is 5 mV, which contributes to its precision in signal amplification.
