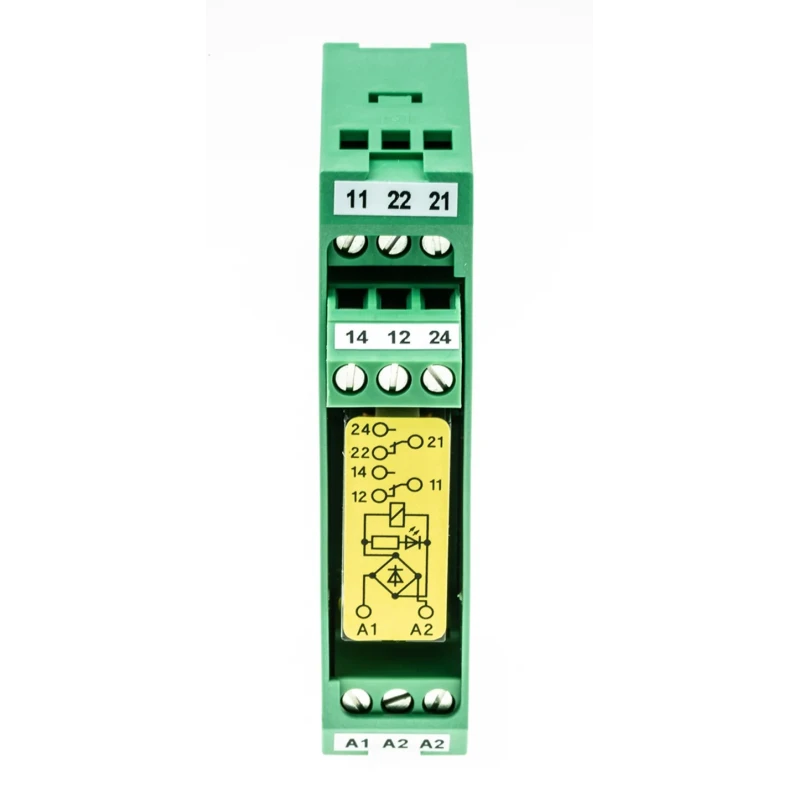

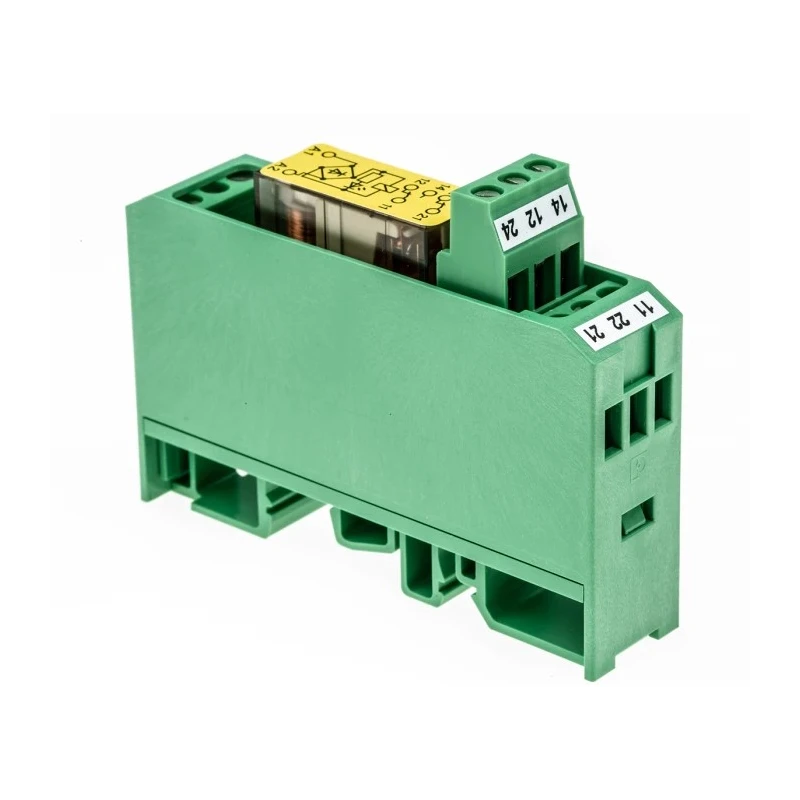

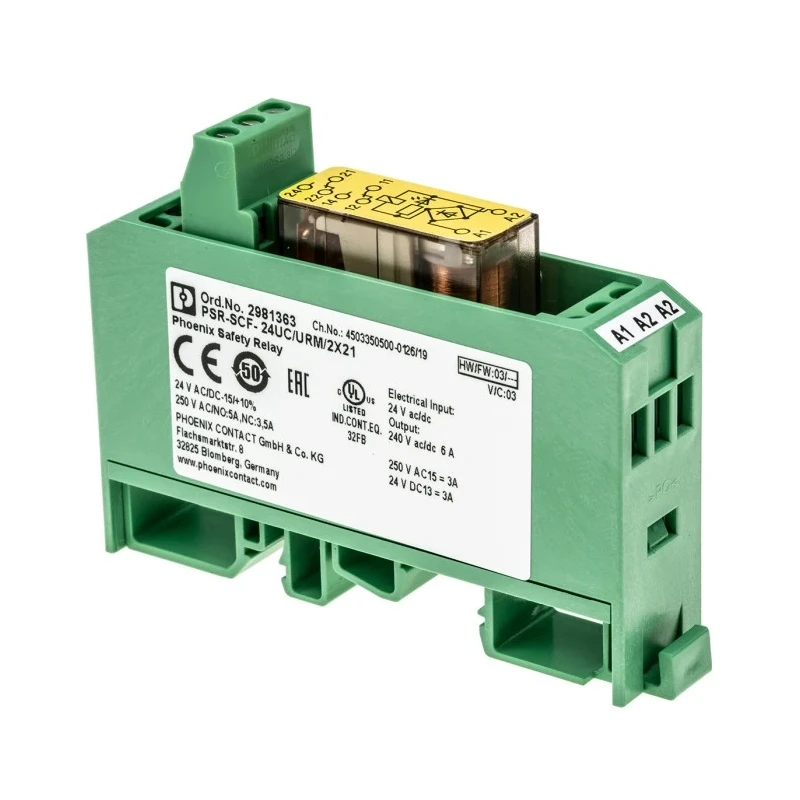

Phoenix Contact DIN Rail Force Guided Relay 24V DC Coil Voltage 2-Pole DPDT 2981363

Phoenix Contact 2981363 DIN Rail Force Guided Relay operates with a 24V DC coil voltage and 0.72W coil power, designed for industrial safety and signal conditioning applications. Featuring a DPDT contact configuration and force-guided contacts, this relay provides reliable monitoring by mechanically linking contacts to prevent failures and support safe maintenance procedures.

The relay's yellow LED indicator voltage signal allows quick troubleshooting and status confirmation in control panels and automation systems. Its compact dimensions (17.5 mm width, 75 mm length, 60.5 mm height) and DIN rail mount type enable flexible and convenient installation in limited spaces.

Constructed with a robust polybutylene terephthalate (PBT) casing, the relay offers enhanced impact resistance and an IP20 rating, protecting against dust and objects larger than 12 mm. The device supports a broad operating temperature range from -20°C to +50°C, suitable for harsh industrial environments.

With a contact material of silver alloy and a high surge voltage isolation of 4 kV between coil and contacts, the relay ensures electrical durability and protection against voltage spikes. The fixed screw terminal block with M3 screws secures wiring connections firmly to maintain safety and reliability.

This Phoenix Contact PSR-SCF-24UC/URM/2X21 series relay is engineered for industrial automation, process control, power management, and other electrical safety applications, providing a mechanical service life of approximately 10 million cycles for dependable long-term performance.

The relay has an IP20 rating making it dust proof. Safe isolation between input and output circuits is maintained. The device features a DIN rail mounting system. Equipped with 2 changeover contacts for dual circuit control.

Uses a yellow LED display for easy status identification. Fixed screw terminal block with M3 screws offers secure connections. Complies with DIN EN 50178 standards for industrial safety.

This product is manufactured in Germany and is supplied new, with reliable quality assurance. It is an ideal solution for engineering robust safety relay circuits in industrial environments. Browse more Force Guided Relays and automation components on EnvMart for your specific requirements.
