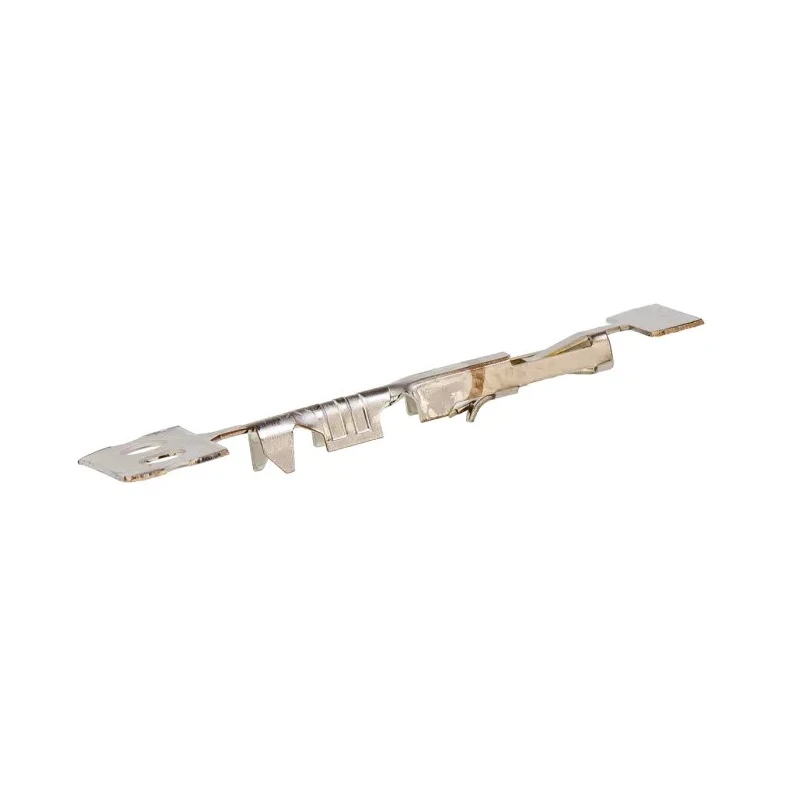

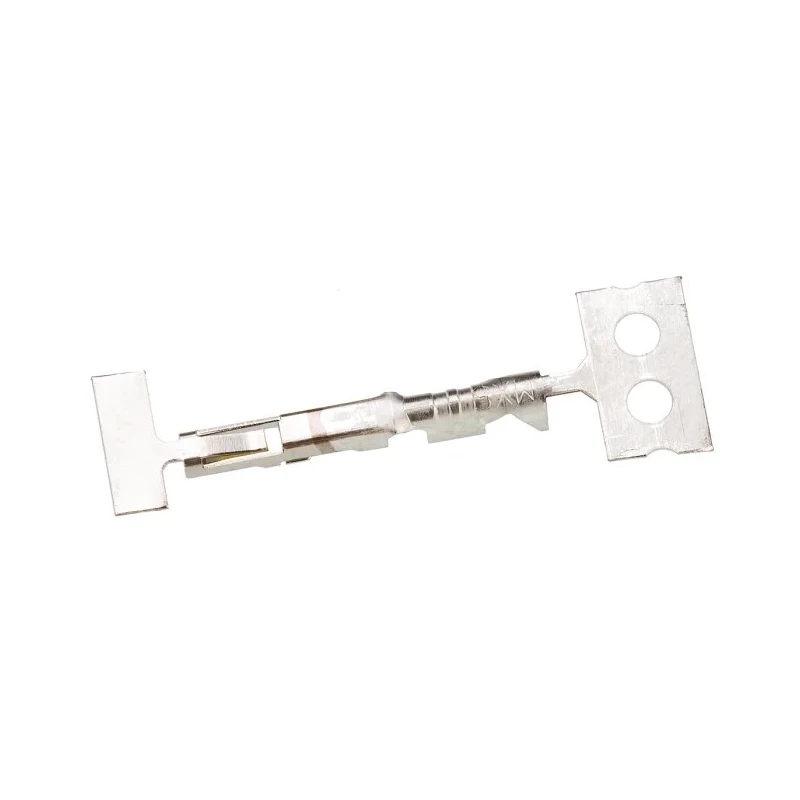

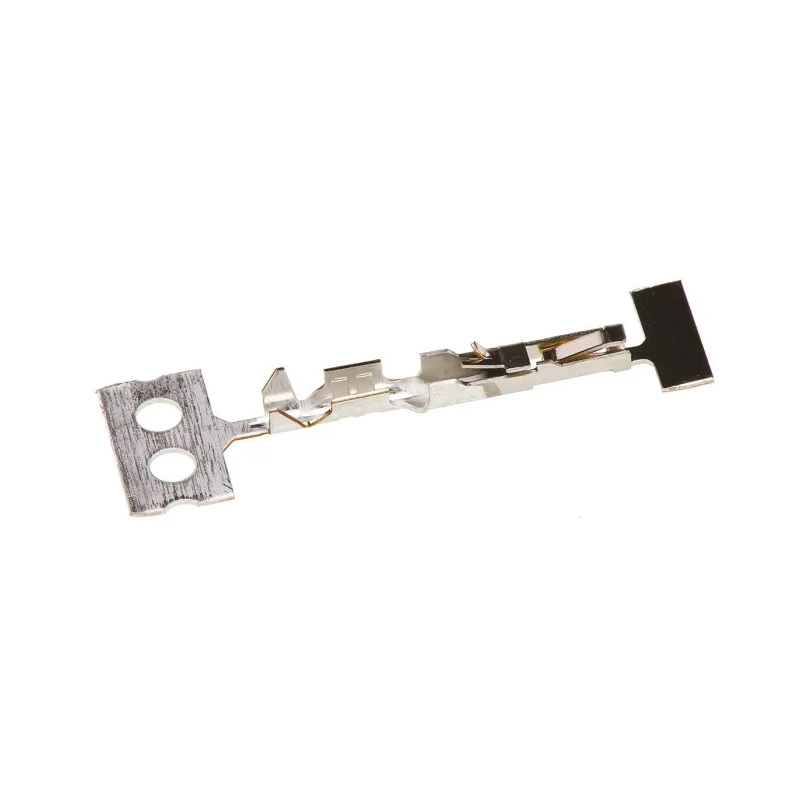

Molex 90119 Series Female Crimp Terminal 3A Current 24-22 AWG Wire Size Gold Plated Contacts 90119-0110
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Housing | Polyphenylene Oxide |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |
Key Features
- Constructed with gold-plated phosphor bronze contacts for optimal conductivity.
- Compatible with C-Grid III connector housings for secure connection.
- Crimp termination ensures reliable and gas-tight connections preventing oxidation.
- Suitable for high voltage applications up to 350V AC.
- Operates in temperatures ranging from -55°C to 105°C.
- Housing made from polyphenylene oxide and insulation from 15% glass-filled polyester (PBT).
- Recommended PCB hole diameter is 1 mm to fit connector pins precisely.
- Ideal for commercial vehicles, home cinema, and industrial computer setups.
Product Description
Molex 90119-0110 Female Crimp Terminal is designed specifically for high reliability connections within C-Grid III series housings, accommodating wire sizes between 24 AWG and 22 AWG, and supporting a current rating of 3A. The crimp terminal uses gold-plated phosphor bronze contacts, which provide excellent electrical conductivity and corrosion resistance, crucial for precision signal transmission.
This crimp terminal supports a maximum operating voltage of 350V AC, making it suitable for various high-power electronics applications including commercial vehicles, home theater systems, and industrial computing environments. The crimp termination method secures a gas-tight connection, eliminating oxidation and ensuring stable contact under vibration or temperature fluctuations.
Constructed with housing material of polyphenylene oxide and insulation headers made from 15% glass-filled polyester (PBT), this terminal offers durability and resistance to mechanical and thermal stress. The recommended PCB hole diameter for installation is 1 mm with a header pin size of 0.64 square mm, delivering a precise fit for assembly.
The product is manufactured in Singapore and adheres to high-quality standards for electronic components. It is designed for easy use with various C-Grid III crimp housings, enabling versatile application across multiple electronics assembly scenarios.
Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance. Supports wire sizes from 24 AWG to 22 AWG for flexible wiring options. Crimp termination provides a reliable, gas-tight connection for stable performance.
Suitable for currents up to 3A and voltages up to 350V AC for high-power compatibility. Durable materials including polyphenylene oxide housing and glass-filled polyester insulation. Recommended PCB hole diameter of 1 mm ensures precise mounting.
Applications include commercial vehicles, home cinema, and industrial computers. Manufactured in Singapore ensuring consistent quality and reliability. Explore Molex Crimp Terminal solutions and related connectors at EnvMart for your electronics manufacturing and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a maximum current rating of 3A.
It accommodates wire sizes from 24 AWG to 22 AWG.
The maximum operating voltage is 350V AC, making it suitable for high-power applications.
The terminal features gold-plated phosphor bronze contacts, a housing made from polyphenylene oxide, and insulation from 15% glass-filled polyester (PBT).
The recommended PCB hole diameter for this terminal is 1 mm.
It operates in temperatures ranging from -55°C to 105°C.
This model is compatible with C-Grid III connector housings for secure connections.
The maximum contact resistance is 20mΩ, ensuring efficient electrical performance.
The header pin size is 0.64 square mm, allowing for precise fitting.
It is suitable for applications in commercial vehicles, home cinema systems, and industrial computers.
This crimp terminal is manufactured in Singapore, adhering to high-quality standards for electronic components.
It uses a crimp termination method, which provides a reliable, gas-tight connection.
