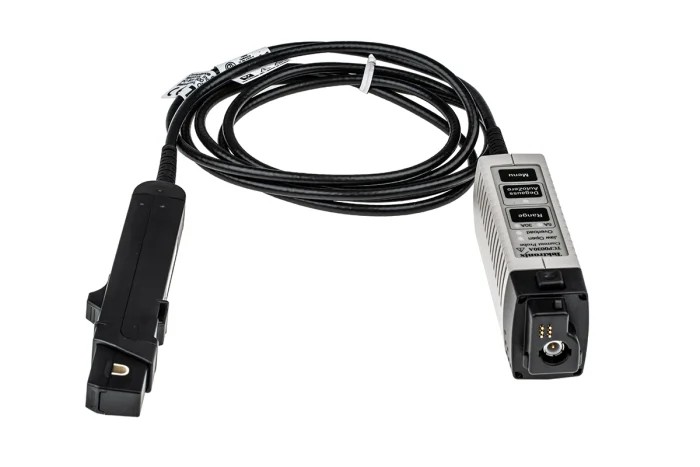

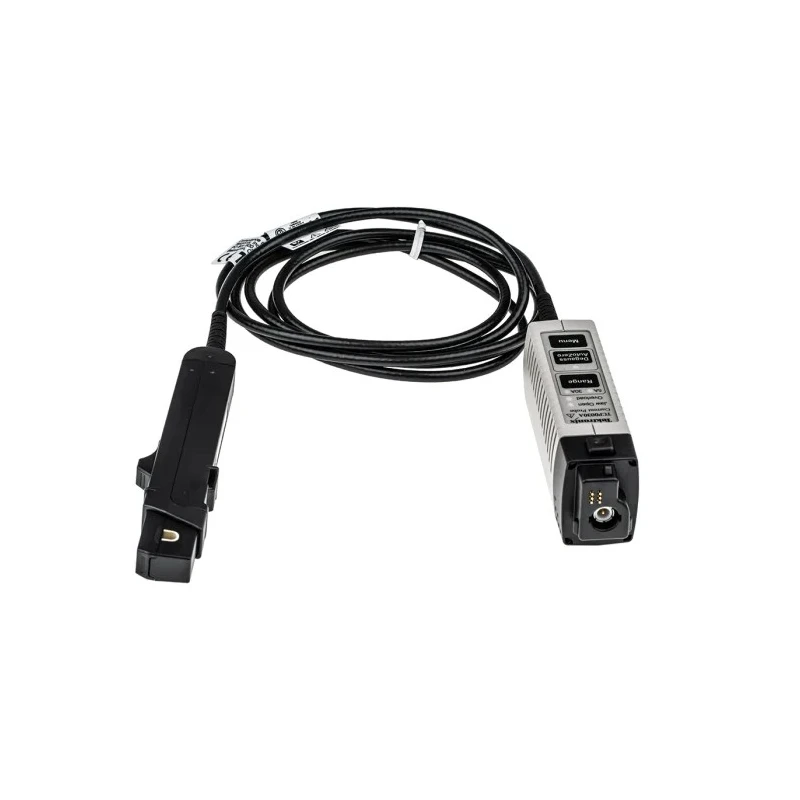

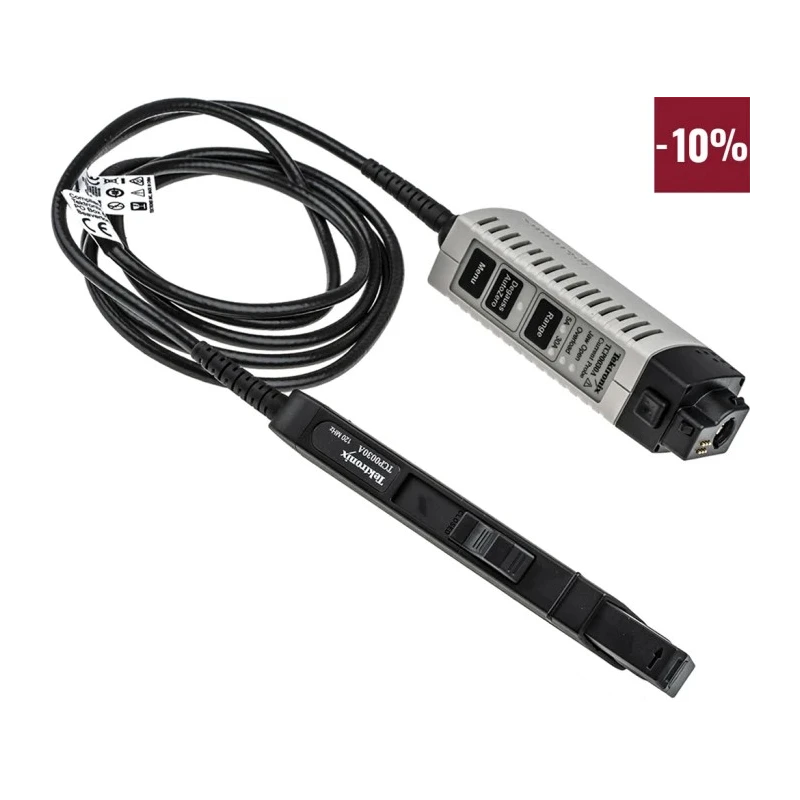

Tektronix Oscilloscope Current Probe TCP0030A, 120 MHz Bandwidth, BNC Connector
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | Tektronix |
| Model | TCP0030A |
| Connector Type | BNC |
| Bandwidth | 120MHz |
| Series | TCP |
| Probe type | Current |
| Interfaces | USB probe control |
| Rise Time | 2.92ns |
| Number of Probes | 1 |
| Standards/Approvals | CE, WEEE |
| Safety Category Level | CAT II |
| Safety Category Voltage | 300V |
| Tektronix TCP0030 Current Probe & ClampBrand | Tektronix |
Key Features
- Provides AC and DC current measurement capability up to 30A.
- Offers selectable 5A and 30A current range settings.
- Features a bandwidth from DC to 120 MHz with 2.92 ns rise time.
- Includes split-core construction for easy circuit clamping.
- Supports intelligent TekVPI oscilloscope interface with remote control.

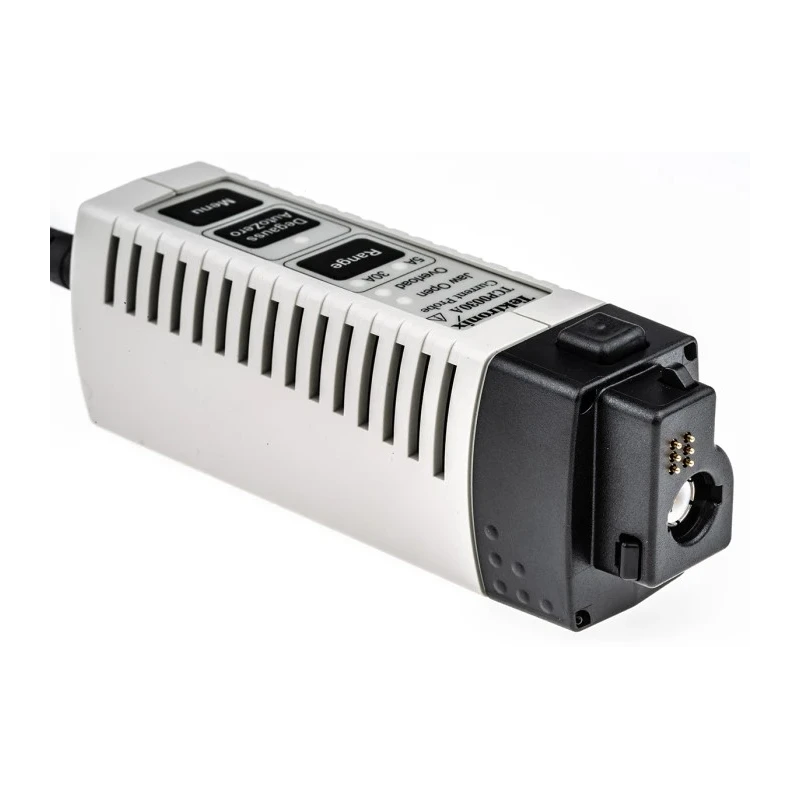

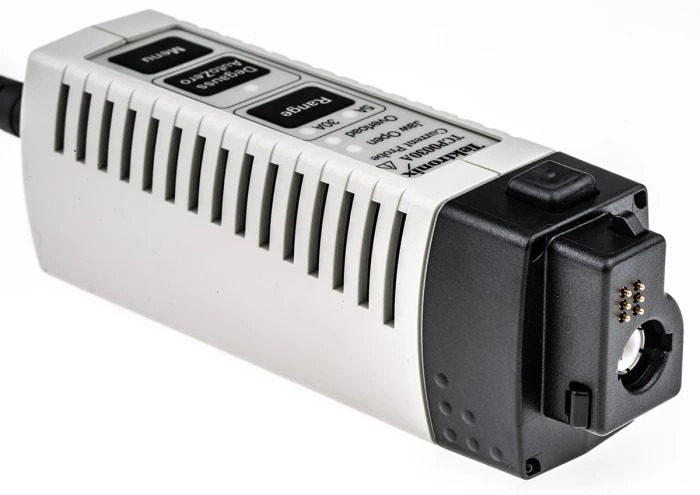

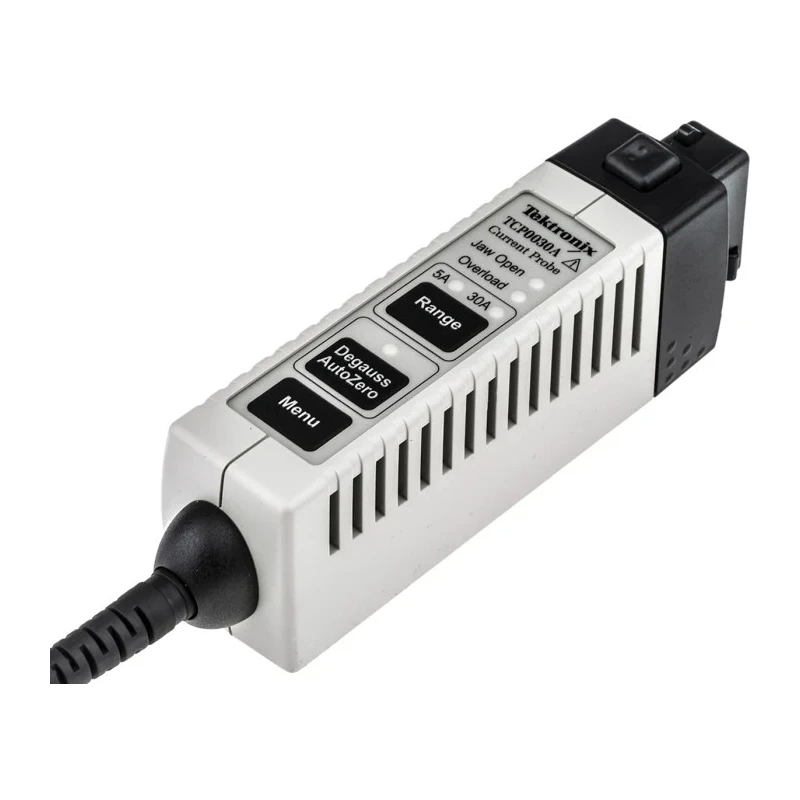

- Equipped with one-button degauss and autozeroing for easy calibration.
- Compatible with oscilloscopes via BNC connector.
- Durable build with 200 cm cable length and compact probe head.
Product Description
Tektronix TCP0030A oscilloscope current probe is designed for precise AC/DC current measurement with a bandwidth of 120 MHz and a BNC connector, ideal for professional electronic testing environments.
The probe offers selectable current ranges of 5A and 30A, ensuring flexibility for various current levels while maintaining accuracy to current levels as low as 1mA. Its advanced Hall-effect technology combined with Tektronix TekVPI interface enables intelligent communication with compatible oscilloscopes, allowing automatic unit scaling, on-screen current readouts, and remote control through USB or GPIB interfaces.

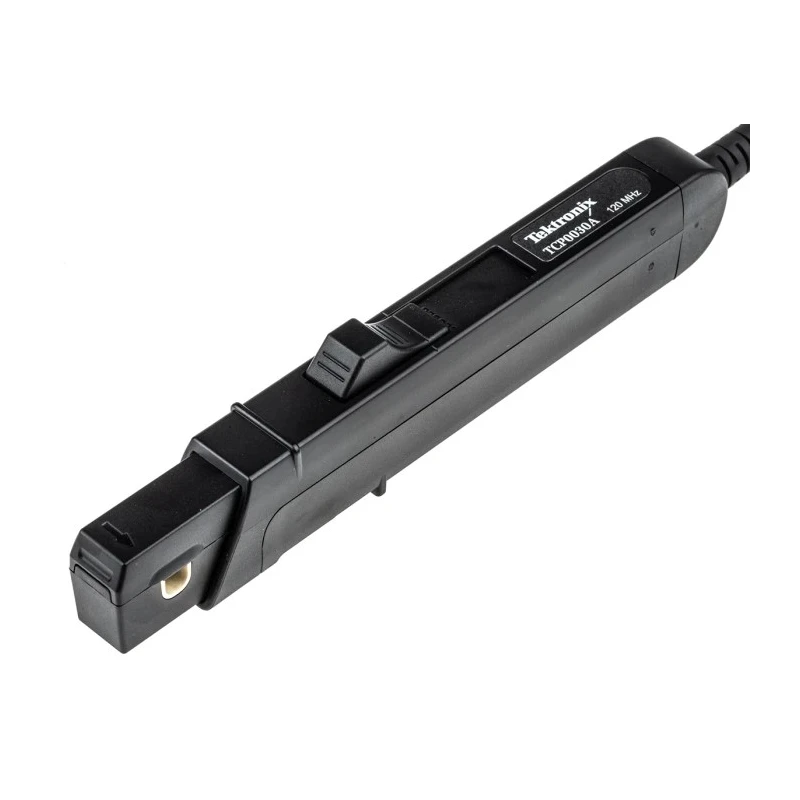

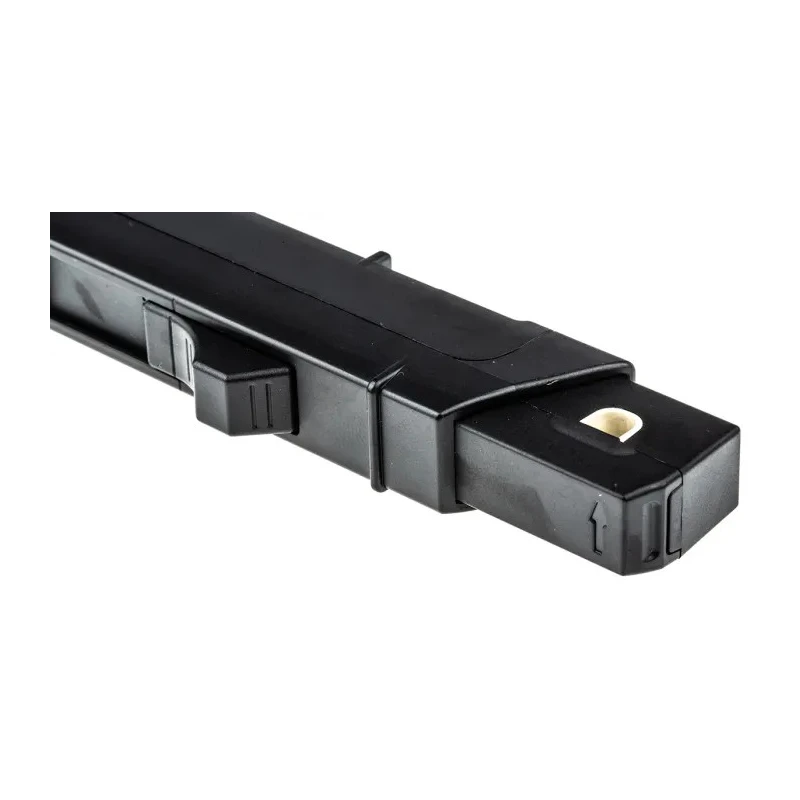

Featuring a fast rise time of 2.92 ns and low noise, this probe ensures reliable waveform capture for detailed signal analysis. The split-core design permits easy clamping around conductors up to 5 mm diameter without disconnecting circuits, improving measurement convenience.
Safety is assured with a maximum input voltage rating of 150 V CAT II and 300 V CAT II for insulated wires, compliant with CE and WEEE standards. The probe includes a long 200 cm cable for flexible setup and a compact probe head measuring 200x16x32 mm.
This probe finds extensive use in applications such as power supply design, motor drives, electronic ballast testing, power semiconductors, switch mode control, uninterruptible power supplies, mobile communications, and industrial or consumer electronics testing.
Provides accurate AC/DC current measurement up to 30A. Wide bandwidth from DC to 120 MHz supports fast signal analysis. Split-core construction enables easy, non-intrusive circuit connection. One-button degauss and autozero simplifies calibration and setup.
Intelligent TekVPI interface allows remote control and automatic scaling. Compatible with a wide range of oscilloscopes with TekVPI interface. Robust construction suitable for rigorous industrial and laboratory environments.
Includes long cable to accommodate diverse testing setups. Certified to CE and WEEE standards. Discover more Tektronix test and measurement instruments tailored for precise industrial and laboratory applications at EnvMart.
Explore more products in our Oscilloscope Probe category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix TCP0030A current probe has a bandwidth of 120 MHz, which supports fast signal analysis.
This model offers selectable current ranges of 5A and 30A, allowing flexibility for various measurement needs.
The maximum input voltage rating for the TCP0030A is 300V for insulated wires and 150V for other applications, compliant with CAT II safety standards.
The split-core construction allows for easy clamping around conductors up to 5 mm in diameter without the need to disconnect circuits, improving measurement convenience.
This model uses a BNC connector, making it compatible with a wide range of oscilloscopes.
The rise time of the TCP0030A is 2.92 ns, which contributes to reliable waveform capture for detailed signal analysis.
The TCP0030A supports USB probe control, allowing for intelligent communication with compatible oscilloscopes.
This probe is certified to CE and WEEE standards, ensuring compliance with safety regulations.
This current probe is suitable for applications such as power supply design, motor drives, and electronic ballast testing, among others.
The TCP0030A comes with a 200 cm long cable, providing flexibility for various testing setups.
The TCP0030A includes one probe, designed for precise AC/DC current measurement.
The country of origin for the Tektronix TCP0030A is China.
