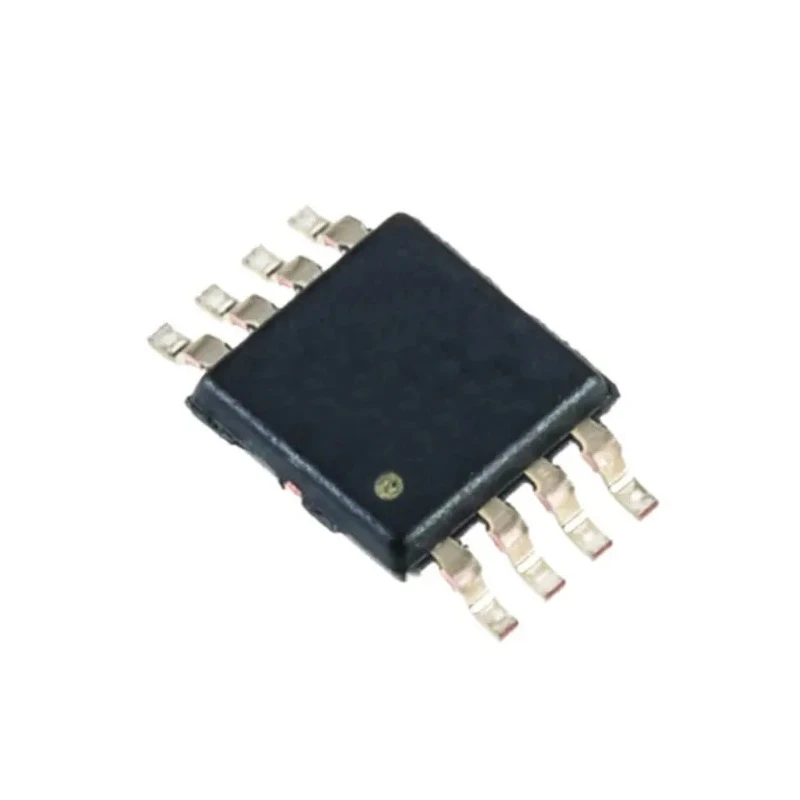

Texas Instruments 1 Flip Flop IC AUP Logic Single Ended Clock Frequency 90MHz 8-Pin VSSOP SN74AUP1G74DCUR

Texas Instruments SN74AUP1G74DCUR is a high-performance single D Flip-Flop integrated circuit designed for ultra-low power consumption in modern electronic designs. This chip belongs to the 74AUP logic family, optimized for operation across a wide supply voltage range of 0.8V to 3.6V, enabling use in 1.8V and mixed 1.8V/3.3V systems.

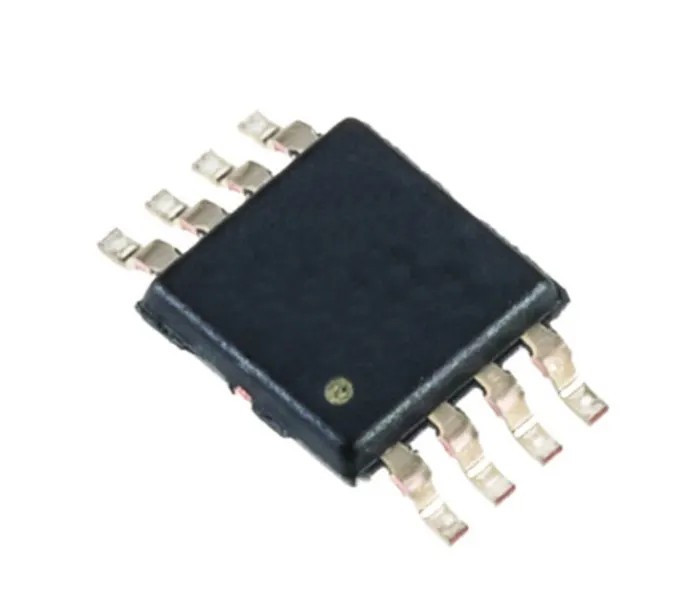

Featuring an 8-pin VSSOP form factor, the device supports surface mount technology, providing a compact footprint ideal for space-constrained industrial and commercial electronic boards.

The input is single-ended with Schmitt-trigger capability, delivering excellent noise immunity to improve signal integrity in electrically noisy environments. It operates with a clock frequency of up to 90MHz, triggered on the positive edge, suitable for precise timing applications requiring reliable flip-flop functionality.

The device supports both inverting and non-inverting polarity configurations, enhancing design flexibility in logic circuit implementations. The maximum propagation delay is a low 3 nanoseconds at specified load capacitance, contributing to high-speed performance in digital switching.

It is rated for a minimum operating temperature of -40°C and a maximum of 85°C, making it suitable for industrial and commercial applications demanding robustness under temperature variations.

This component offers enhanced electrostatic discharge protection and is optimized for balance between speed and power efficiency.

The SN74AUP1G74DCUR does not have automotive standard certification but excels in applications such as embedded systems, digital signal processing, and other electronic control logic circuits.

The device uses advanced ultra-low power consumption technology suitable for 1.8 V and mixed voltage circuits. Wide supply voltage range from 0.8V to 3.6V allows flexible application designs. Includes Schmitt-trigger inputs providing high noise immunity.

Supports inverting and non-inverting polarity options with positive edge trigger. Maintains low propagation delay time of 3 ns at CL. Compact 8-pin VSSOP surface mount package for space saving board layout. Operates reliably over temperature range from -40°C to 85°C.

Provides enhanced ESD protection and speed/power optimization. Single element D Flip-Flop per chip for precise logic state storage. No automotive standard compliance is included for this model.
