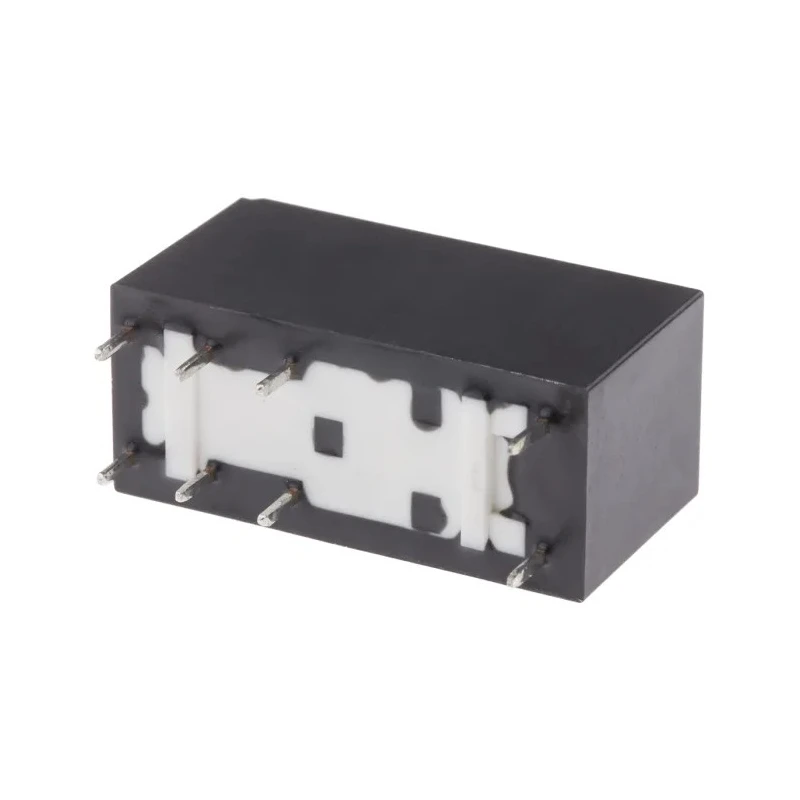

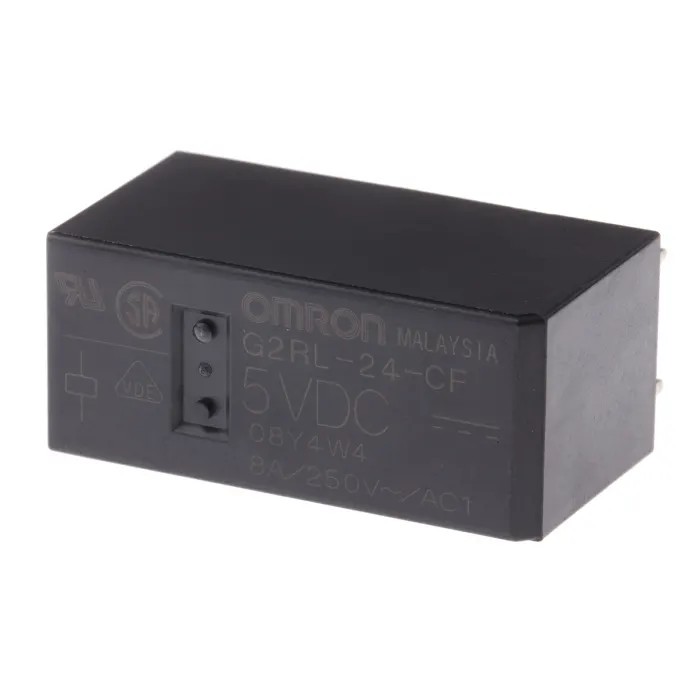

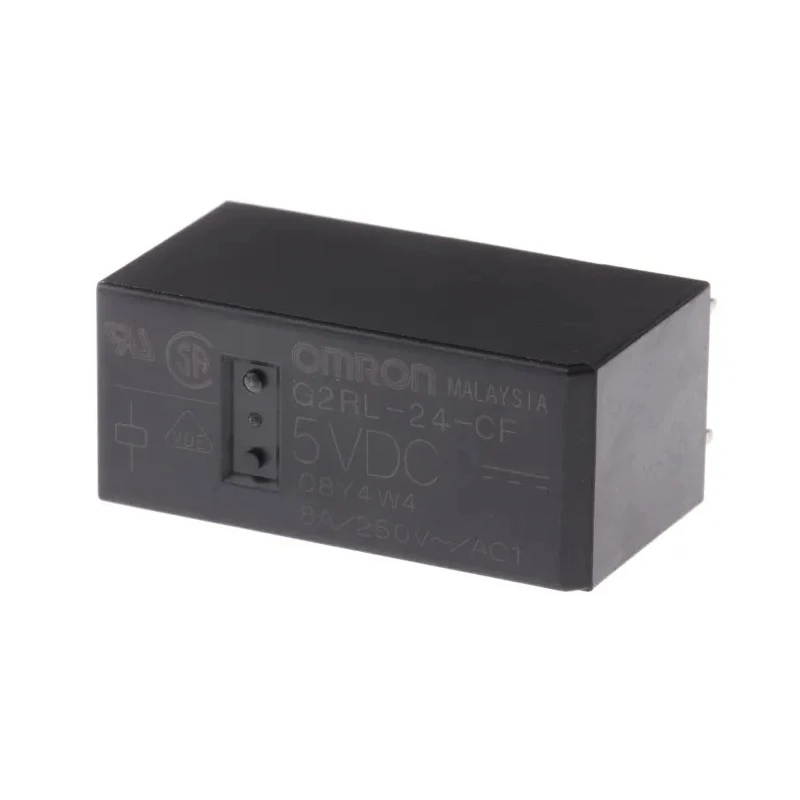

Omron PCB Power Relay 5V DC Coil 8A Switching Current DPDT G2RL-24-CF DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-24-CF DC5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, EN, IEC, RoHS, UL, VDE |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Compact low profile with 15.7mm maximum height for space-saving PCB designs.
- Contact material made of silver alloy for reliable conductivity and durability.
- Designed for PCB mounting with through-hole terminal type ensuring secure installation.
- Operating temperature range from -40°C to 85°C suitable for varied industrial environments.
- Switching AC voltage rated at 250V AC for robust electrical operations.
- Coil resistance of 62.5 ohms ensures efficient coil characteristics and power consumption.
- Meets international standards including CSA, EN, IEC, RoHS, UL, and VDE for safety and performance compliance.
- Tracking resistance with CTI greater than 250 ensures high insulation reliability.
Product Description
Omron G2RL-24-CF DC5 is a highly reliable PCB power relay designed for industrial, automation, and electrical applications. Featuring a 5V DC coil voltage and an 8A switching current capacity with DPDT (Double Pole Double Throw) contact configuration, this relay supports demanding switching tasks on printed circuit boards.
The relay’s low profile design with a height of 15.7mm, length of 29mm, and width of 12.7mm contributes to compact installations and efficient use of PCB real estate. The through-hole terminal type ensures firm mechanical and electrical connections essential for industrial reliability.
The contact material is silver alloy, providing excellent conductivity and durability, optimized for consistent switching performance. With a maximum operating temperature of 85°C and a minimum of -40°C, this relay is suited to various harsh environmental conditions, making it ideal for industrial automation and control systems.
Certified under global standards including CSA, EN, IEC, RoHS, UL, and VDE, it guarantees adherence to safety and quality norms. The coil resistance of 62.5 ohms ensures efficient coil operation without excessive power loss. The relay’s design also ensures tracking resistance with a comparative tracking index (CTI) greater than 250, promising enhanced electrical insulation and longevity.
This Omron power relay is well-suited for applications in industrial automation, machinery control, electrical switching, HVAC systems, and other commercial electrical control environments. Its robust specifications make it a dependable component for ensuring high operational performance and safety in power switching tasks.
Compact low profile with 15.7mm maximum height for space-saving PCB designs. Contact material made of silver alloy for reliable conductivity and durability. Designed for PCB mounting with through-hole terminal type ensuring secure installation.
Operating temperature range from -40°C to 85°C suitable for varied industrial environments. Switching AC voltage rated at 250V AC for robust electrical operations. Coil resistance of 62.5 ohms ensures efficient coil characteristics and power consumption.
Meets international standards including CSA, EN, IEC, RoHS, UL, and VDE for safety and performance compliance. Tracking resistance with CTI greater than 250 ensures high insulation reliability. Explore more high-quality Power Relay solutions in the Electronics & Electricals category on EnvMart to meet diverse industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A, which is suitable for various electrical applications.
This model has a height of 15.7mm, a length of 29mm, and a width of 12.7mm, making it compact for PCB installations.
The coil voltage for this relay is 5V DC, allowing it to operate effectively in low-voltage applications.
The maximum operating temperature for this relay is 85°C, making it suitable for various industrial environments.
This relay features a DPDT (Double Pole Double Throw) contact configuration, which allows for versatile switching options.
The coil resistance is 62.5 ohms, ensuring efficient coil operation and power consumption.
This relay meets several international standards including CSA, EN, IEC, RoHS, UL, and VDE, ensuring compliance with safety and performance norms.
It is designed for PCB mounting with a through-hole terminal type, providing secure mechanical and electrical connections.
The minimum operating temperature for this relay is -40°C, allowing it to function in extreme cold conditions.
The switching AC voltage rating for this relay is 250V AC, suitable for robust electrical operations.
The contact material is made of silver alloy, which provides reliable conductivity and durability for consistent performance.
This relay is well-suited for applications in industrial automation, machinery control, electrical switching, and HVAC systems.
