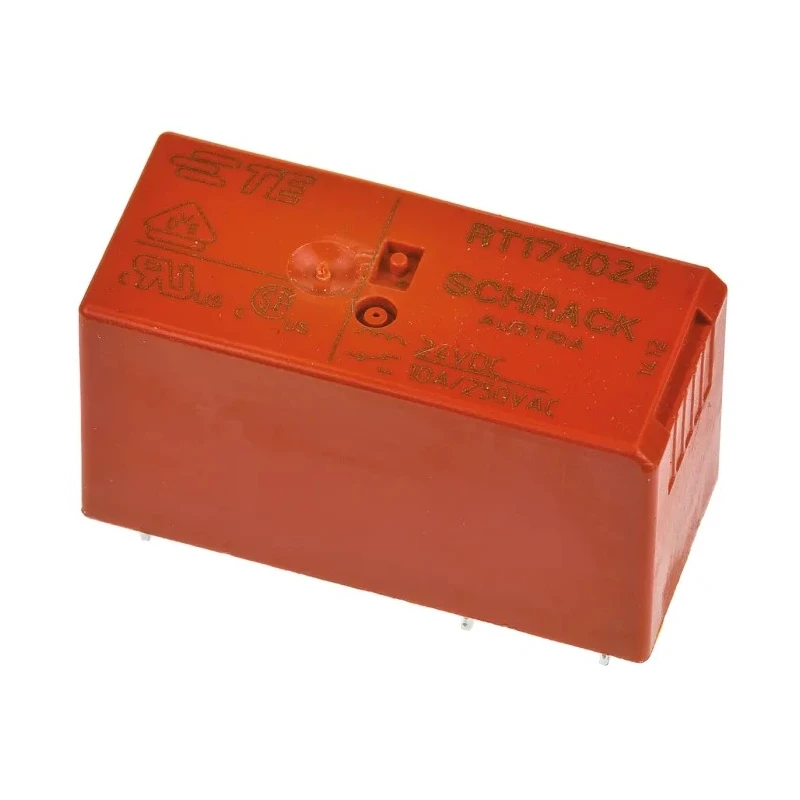

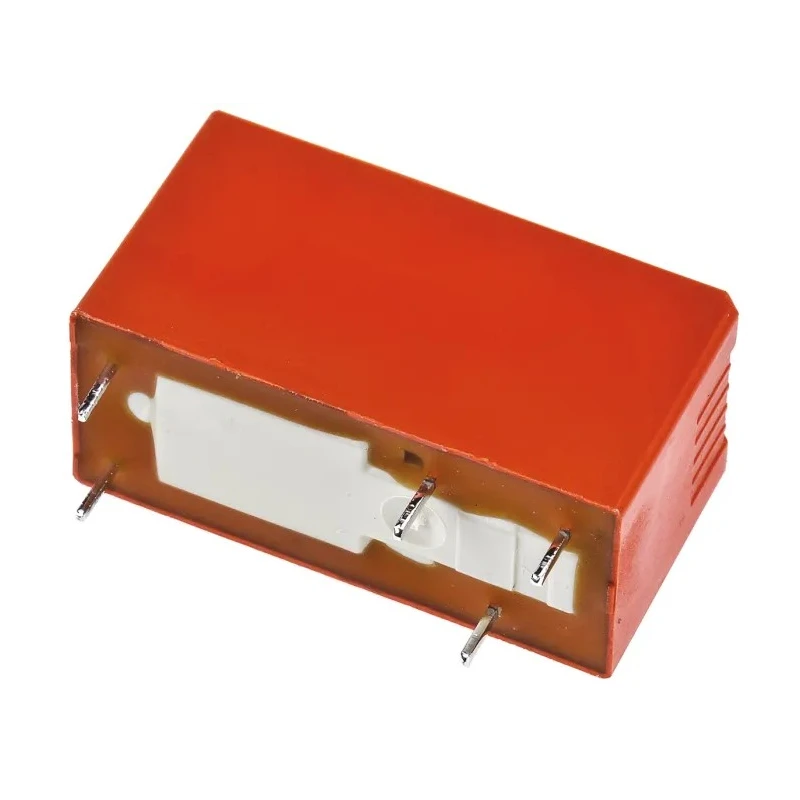

TE Connectivity RT174024 PCB Power Relay 24V dc Coil 10A Switching Current SPDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT174024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 2.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay features a high coil sensitivity of 250mW.
- It supports a switching AC voltage of up to 400V ac.
- Mount type is designed for PCB with solder terminals.
- Operating temperature range from -40°C to 85°C ensures durability in various conditions.
- Compact dimensions measuring 29mm length, 15.7mm height, and 12.7mm width.
- Contact material is Silver Nickel Alloy for reliable conductivity.
- Coil resistance rated at 2.3kΩ for efficient operation.
- Suitable for applications such as temperature control and domestic usage.
Product Description
TE Connectivity RT174024 PCB Power Relay is engineered with a 24V dc coil and supports a 10A switching current with Single Pole Double Throw (SPDT) contact configuration, making it ideal for electronic control systems on PCBs.
This relay belongs to the RT1 series featuring ultra-high coil sensitivity at just 250mW which reduces power consumption significantly. It uses silver nickel alloy contacts to maintain longevity and dependable operation over time.
The relay mounts securely on PCBs via its solder terminal type, occupying a compact footprint measuring 29mm length, 12.7mm width, and 15.7mm height, allowing space-efficient designs.
Operating temperature ranges from -40°C to 85°C, making it suitable for diverse industrial, commercial, and domestic environments, including temperature control systems. The relay is compliant with international standards such as RoHS, VDE, and IEC 60335-1, ensuring safety and environmental considerations are met.
The relay features a high coil sensitivity of 250mW. It supports a switching AC voltage of up to 400V ac. Mount type is designed for PCB with solder terminals. Operating temperature range from -40°C to 85°C ensures durability in various conditions.
Compact dimensions measuring 29mm length, 15.7mm height, and 12.7mm width. Contact material is Silver Nickel Alloy for reliable conductivity. Coil resistance rated at 2.3kΩ for efficient operation. Suitable for applications such as temperature control and domestic usage.
Meets RoHS, VDE, and IEC 60335-1 standards for quality and safety.
This power relay is ideal for industrial automation, electronic manufacturing, HVAC control systems, and electrical appliances where efficient switching with low power coil operation is essential.
Explore TE Connectivity products and other Power Relays on EnvMart for reliable components tailored to your precise application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V dc.
It supports a maximum switching current of 10A.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates within a temperature range of -40°C to 85°C.
The coil resistance is rated at 2.3kΩ.
It is designed for PCB mounting with solder terminals.
The relay supports a maximum switching AC voltage of up to 400V ac.
The contact material is Silver Nickel Alloy, which ensures reliable conductivity.
It meets RoHS, VDE, and IEC 60335-1 standards for quality and safety.
It is suitable for applications such as temperature control, industrial automation, and HVAC control systems.
The relay has a coil power consumption of 250mW, which contributes to its high coil sensitivity.
