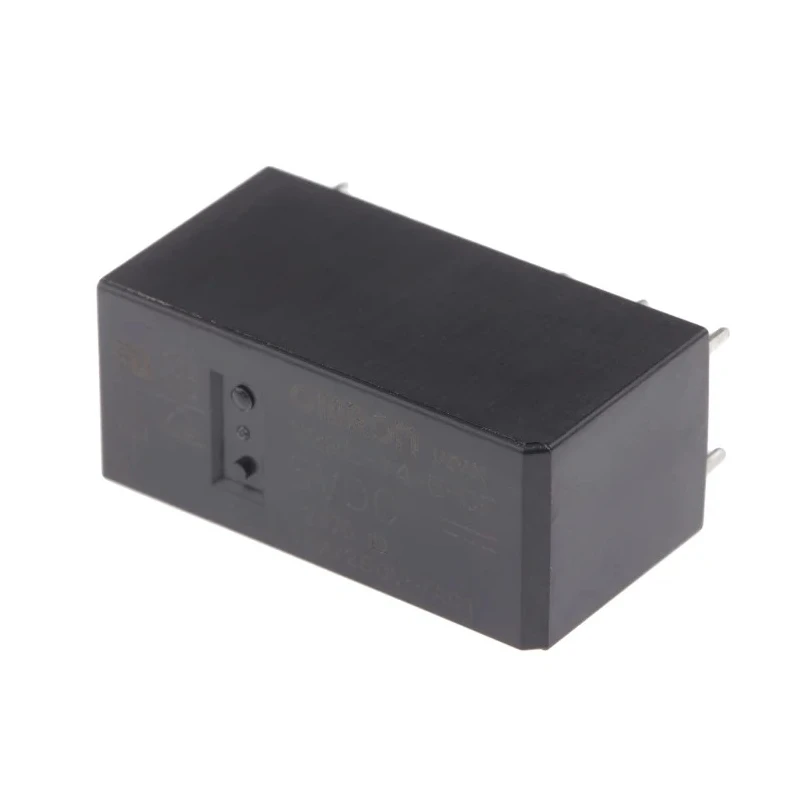

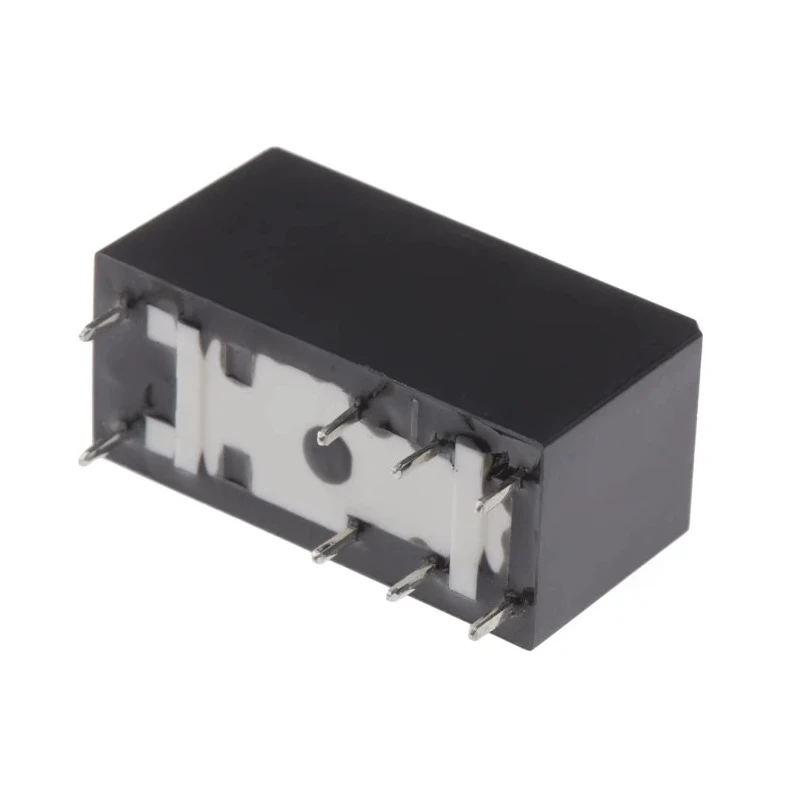

Omron PCB Power Relay, 5V DC Coil, 16A Switching Current, SPDT G2RL-14-E-CF DC5

Omron G2RL-14-E-CF DC5 PCB Power Relay is a highly reliable power relay designed for electronic and electrical automation systems. It features a 5V DC coil voltage and supports a switching current of up to 16A, making it suitable for robust switching requirements on printed circuit boards. The single pole double throw (SPDT) contact configuration provides versatile applications for circuit control and signal conditioning in industrial, HVAC, manufacturing, and automation equipment.

This relay is characterized by a compact low profile design with a height of 15.7mm, width of 12.7mm, and length of 29mm, which makes it ideal for dense PCB mounting. The contact material is made of silver alloy which ensures low electrical resistance of 100 milliohms, contributing to consistent operational performance and longevity. The coil resistance of 62.5 ohms and power consumption of 400mW make this relay energy-efficient.

It operates effectively across a wide temperature range from -40°C to 85°C, addressing diverse environmental conditions. The relay is built to the IEC/EN 60079-15 standard and is RoHS compliant, ensuring adherence to international safety and environmental regulations. Additionally, it holds UL recognition, CSA certification, and VDE approval, assuring users of its quality and reliability.

The relay is suitable for applications in industrial automation, electrical control panels, robotics, and other equipment requiring dependable power switching. Being a PCB-mount relay with solder type terminals, it integrates seamlessly with electronic assemblies for efficient switching control.

The relay features single pole double throw (SPDT) configuration. Low profile design fits compact PCB layouts. Supports switching voltages: 440V AC, 300V DC. Contact resistance maintained low at 100 milliohms. Coil power consumption is 400mW for energy efficiency.

Certified under IEC/EN standards and RoHS compliant. UL recognized, CSA certified, and VDE approved for quality. Wide operating temperature range from -40°C to 85°C. Explore our catalogue for more Power Relay options and high-quality electronic components offered by Omron at EnvMart.
