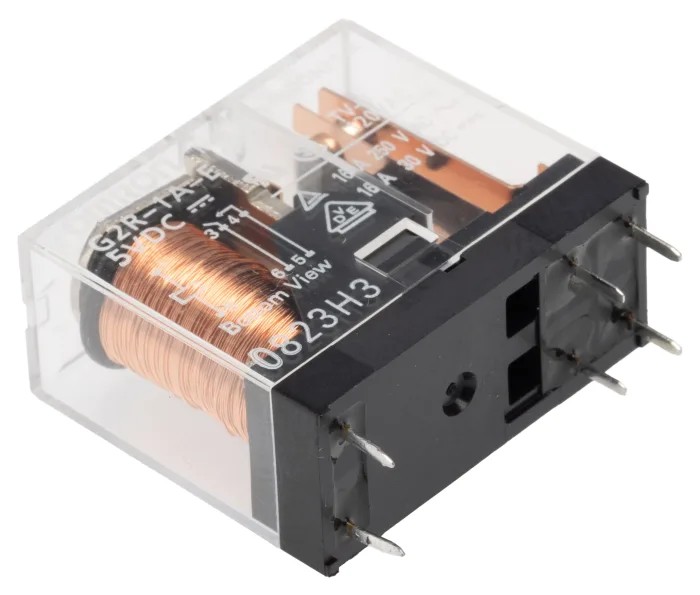

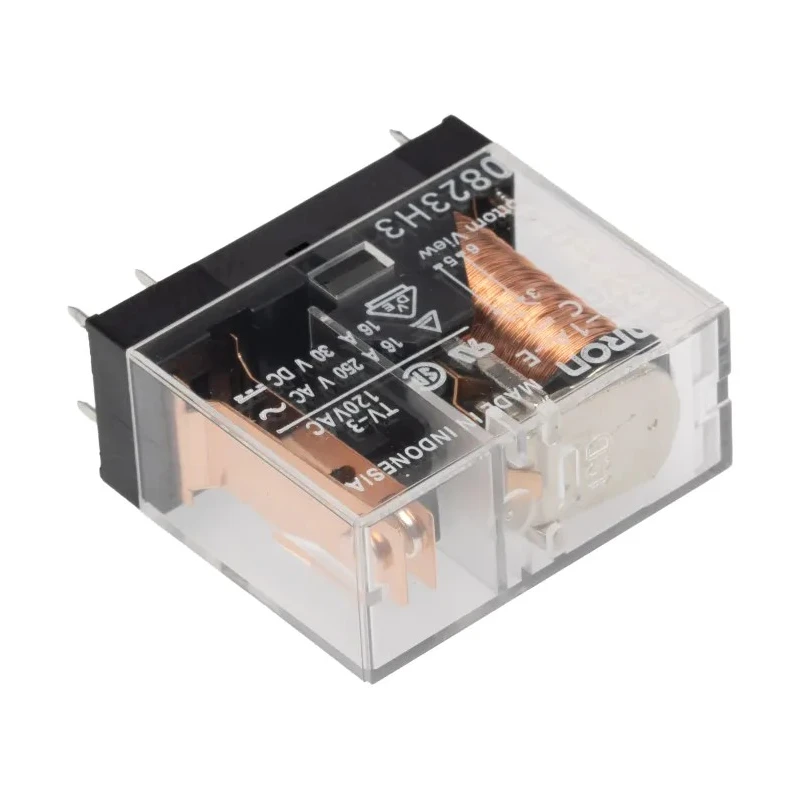

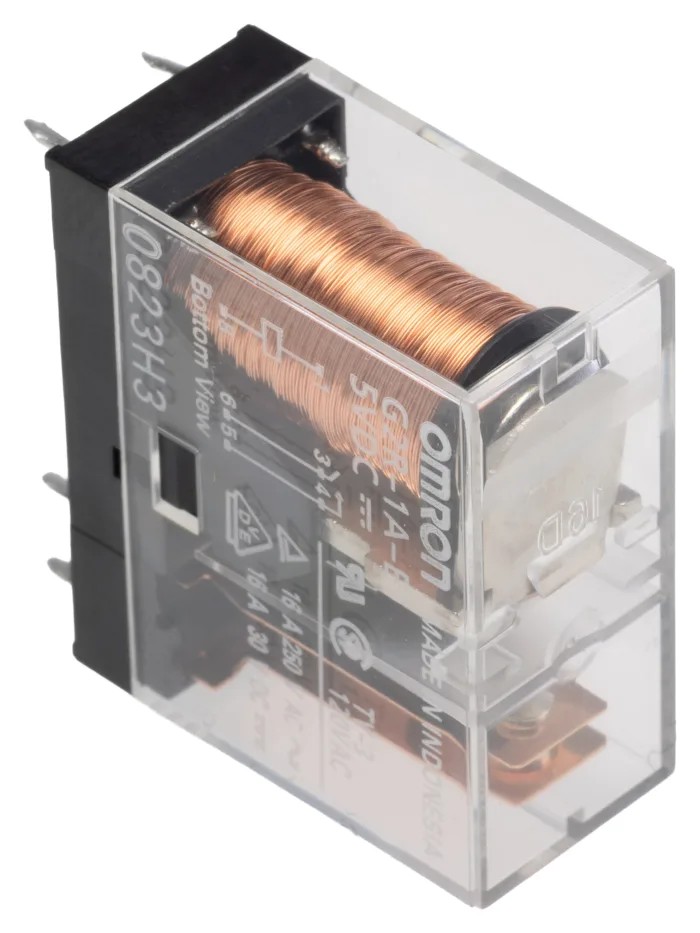

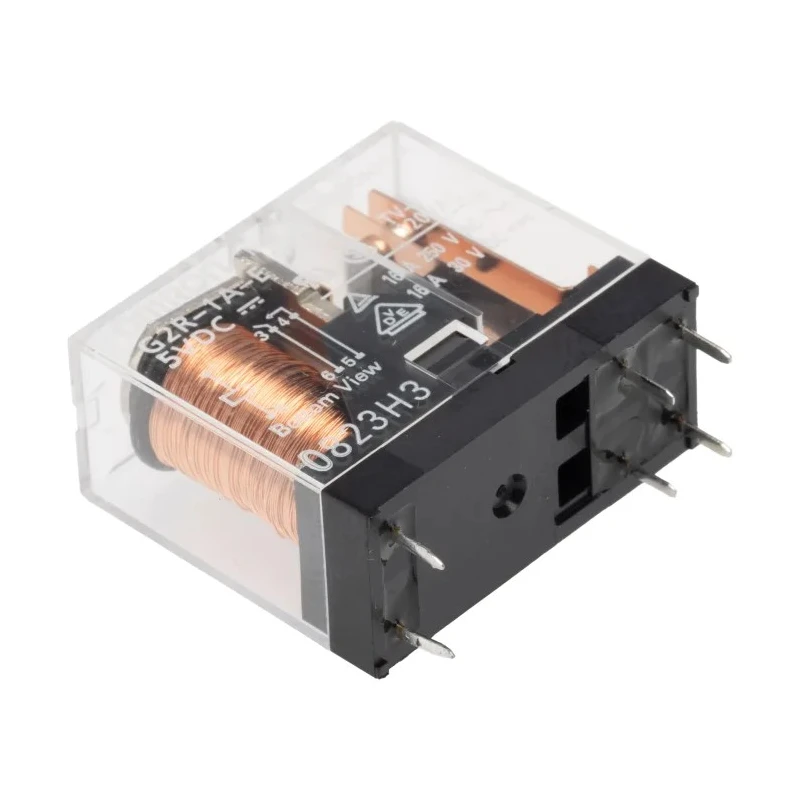

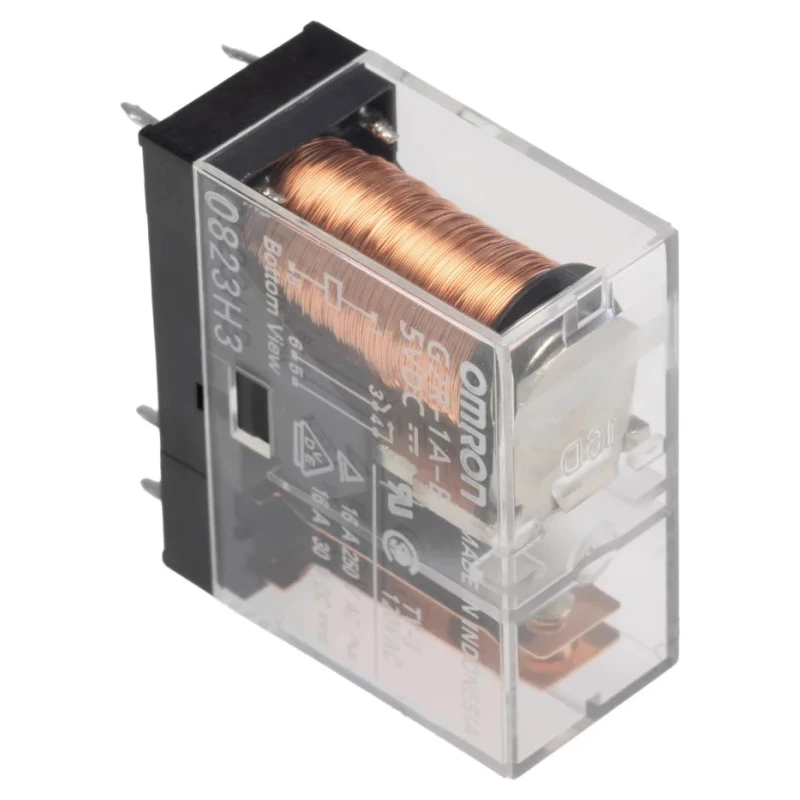

Omron PCB Power Relay 5V DC Coil 16A Switching Current SPST Through Hole Mount G2R-1A-E DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1A-E DC5 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 47Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Switching Power | 150W |
Key Features
- Designed for PCB mounting with through hole terminal type.
- Switching power capacity of 150W for efficient electrical load handling.
- Operational temperature range from -40°C to 70°C suitable for various environments.
- Coil resistance of 47Ω and coil power of 0.9VA ensuring low power consumption.
- Compact size with dimensions 29mm length, 13mm width, and 25.5mm height.
- Silver alloy contact material for high conductivity and durability.
- Contact resistance is minimal at 30mΩ for reliable switching.
- Compliance with RoHS standards ensuring environmental safety.
Product Description
Omron G2R-1A-E DC5 is a general purpose PCB power relay designed for various domestic and commercial applications requiring reliable switching performance. It features a 5V dc coil and supports a high switching current of 16A with a single-pole single-throw (SPST) contact configuration, ideal for control and automation circuits.
Its through hole mounting style allows secure placement on PCBs and it's built to handle switching power up to 150W. The relay operates efficiently within a temperature range from -40°C to 70°C, making it suitable for diverse industrial environments.
The coil resistance of 47Ω and coil power of 0.9VA contribute to low power consumption, while the silver alloy contacts ensure durability and excellent conductivity. With a contact resistance of only 30mΩ, it guarantees minimal signal loss for sensitive applications.
Physically, the relay measures 29mm in length, 13mm in width, and 25.5mm in height, providing a compact form factor compatible with tight PCB layouts. The 8mm creepage and clearance distance enhances electrical safety and insulation.
This relay complies with RoHS environmental standards and holds multiple approvals including UL508, CSA22.2, EN 61810-1, SEV, and SEMKO, ensuring quality and compliance across regions.
Designed for PCB mounting with through hole terminals. Supports switching currents up to 16A at both AC and DC voltages. Compact size and low coil power consumption. Suitable for industrial automation, electrical control panels, and signal conditioning.
Provides reliable switching for heating, lighting, motor control, and power supply circuits. Environmentally compliant and safety certified.
This robust Omron power relay is ideal for manufacturers, engineers, and system integrators focusing on industrial automation, HVAC control, manufacturing equipment, and energy management solutions. Explore more about Power Relays and related components at EnvMart for optimized circuit design and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 16A, making it suitable for various control and automation applications.
The operational temperature range is from -40°C to 70°C, allowing it to function effectively in diverse environments.
The relay measures 29mm in length, 13mm in width, and 25.5mm in height, providing a compact form factor for PCB layouts.
It features a through hole mounting style, which allows for secure placement on printed circuit boards (PCBs).
The coil voltage is 5V DC with a coil resistance of 47Ω, ensuring low power consumption.
This relay has a single-pole single-throw (SPST) contact configuration, suitable for various switching applications.
The contacts are made of silver alloy, which provides high conductivity and durability.
The maximum switching power for this relay is 150W, allowing it to handle significant electrical loads.
It complies with RoHS standards and holds approvals such as UL508, CSA22.2, and EN 61810-1, ensuring quality and compliance across regions.
The contact resistance is minimal at 30mΩ, which ensures reliable switching with minimal signal loss.
This relay is suitable for applications in industrial automation, electrical control panels, and signal conditioning.
The relay features an 8mm creepage and clearance distance, enhancing electrical safety and insulation.
