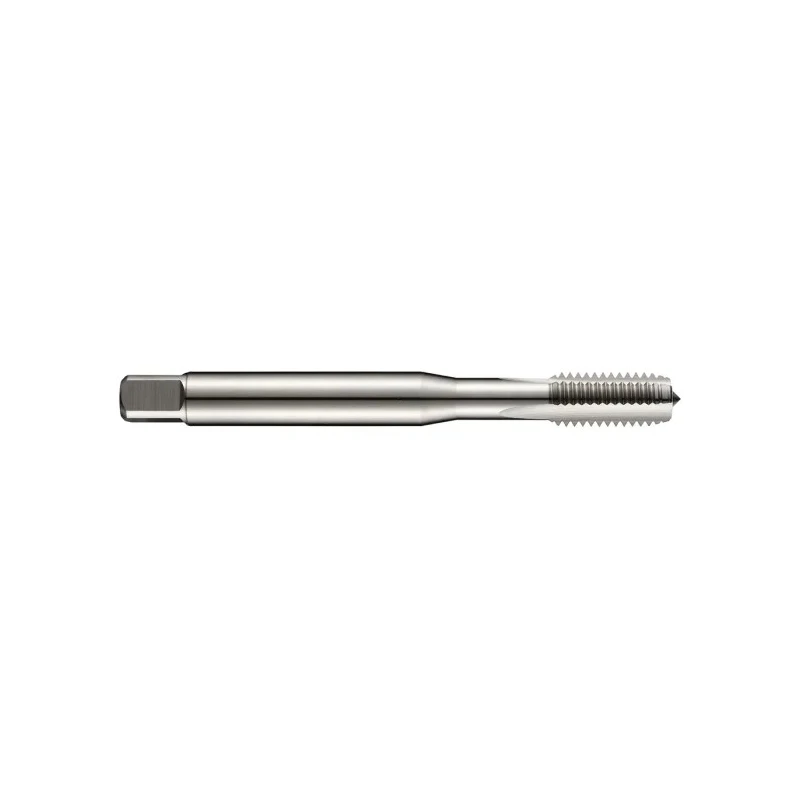

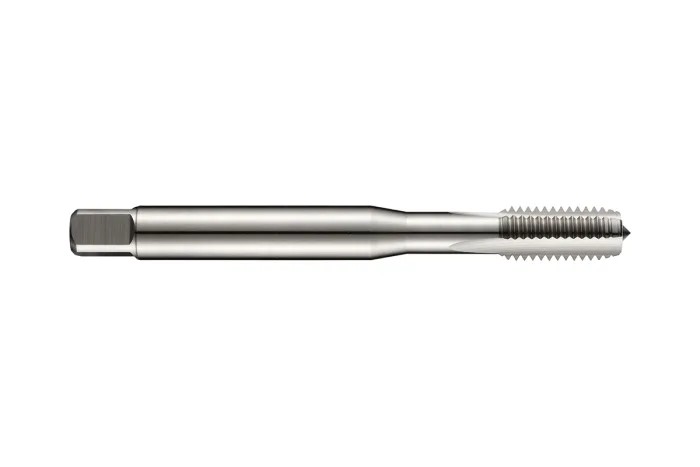

Dormer Metric Standard Machine Threading Tap, M2.5 Thread Size, Straight Flute, HSS-E, Right Hand, 50mm Overall E200M2.5
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dormer |
| Material | High Speed Steel-E |
| Model | E200M2.5 |
| Standard | DIN 371 |
| Overall Length | 50mm |
| Thread Size | M2.5 |
| Sub Type | Straight Flute |
| Shank Diameter | 2.8mm |
| Number of Pieces | 1 |
| Pitch | 0.45mm |
| Standards/Approvals | ISO 529 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Hand/Machine Tap | Machine Tap |
| Straight Flute Taps | most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool |
| Spiral Point Taps | suitable for threading through holes. They push chips through holes ahead of the tool |
| Spiral Flute Taps | intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole |
| Forming Taps | produce a thread by pressing the material rather than cutting and no chips are created |
| HSS | High Speed Steel |
| HSS-E | High Speed Cobalt |
| HSS HM | High Speed Steel/Carbide |
| HSS-E PM | HSS-E Powder Metallurgy Steel |
Key Features
- Constructed from High Speed Steel-E (HSS-E) for enhanced toughness and tool life.
- Features a right-hand thread direction suitable for clockwise tightening.
- Overall length of 50mm with a shank diameter of 2.8mm.
- Complies with ISO 529 and DIN 371 standards ensuring high manufacturing quality.
- Designed for use in machine tapping with straight flute suitable for blind or through holes.
- Thread pitch of 0.45mm optimized for metric threading applications.
- Ideal for producing threads in metals and plastics in industrial and manufacturing use cases.
- Reinforced shank and shiny surface treatment for durability and wear resistance.
Product Description
Dormer E200M2.5 Metric Standard Machine Threading Tap is a high precision threading tool designed for machine use with M2.5 thread size and straight flute configuration. Constructed from High Speed Steel-E (HSS-E), it offers superior toughness and wear resistance suitable for high-production machining demands.
This threading tap features a right hand thread direction intended for clockwise tightening action, with an overall length of 50mm and a shank diameter of 2.8mm. It is manufactured to meet the stringent ISO 529 and DIN 371 standards, assuring quality and performance.
The straight flute design is most commonly used for threading blind or through holes in materials such as steel and cast iron, efficiently collecting chips during the process. The threading pitch of 0.45mm offers precise metric threading suited for various industrial applications including engineering and manufacturing sectors.
Additional features include a fortified shank for enhanced durability and a shiny surface finish that increases resistance to wear and heat. These taps are capable of tapping depths up to two times their diameter, suitable for a variety of machine and hand tool operations.
High Speed Steel-E (HSS-E) material construction for longevity. Right hand thread direction for standard tightening. Complies with ISO 529 and DIN 371 standards. Straight flute design effective for chip collection in threading.
Tap diameter and pitch optimized for metric threading applications. Durable reinforced shank for extended tool life.
This Threading Tap is ideal for industrial use in manufacturing plants, engineering workshops, and metalworking facilities. Its precision and robustness make it suitable for producing reliable bolt threads in metals and plastics.
Explore our extensive selection of Dormer high precision threading tools and taps on EnvMart for reliable threading performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this tap is 50mm.
It is constructed from High Speed Steel-E (HSS-E), which enhances toughness and tool life.
The Dormer E200M2.5 has a thread size of M2.5.
The thread pitch of this tap is 0.45mm, optimized for metric threading applications.
This tap supports machine tapping with a straight flute design, suitable for blind or through holes.
The shank diameter of this tap is 2.8mm.
It complies with ISO 529 and DIN 371 standards, ensuring high manufacturing quality.
The thread direction is right-hand, suitable for clockwise tightening.
It is ideal for producing threads in metals and plastics in industrial and manufacturing applications.
This product includes one piece.
This tap is capable of tapping depths up to two times its diameter.
It is designed for use on materials such as steel and cast iron.
