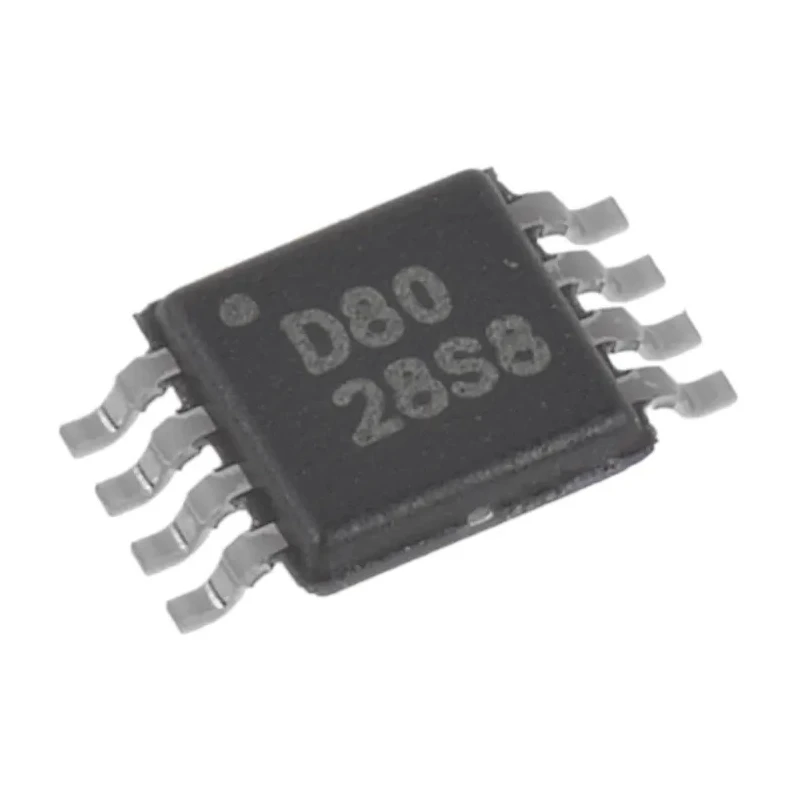

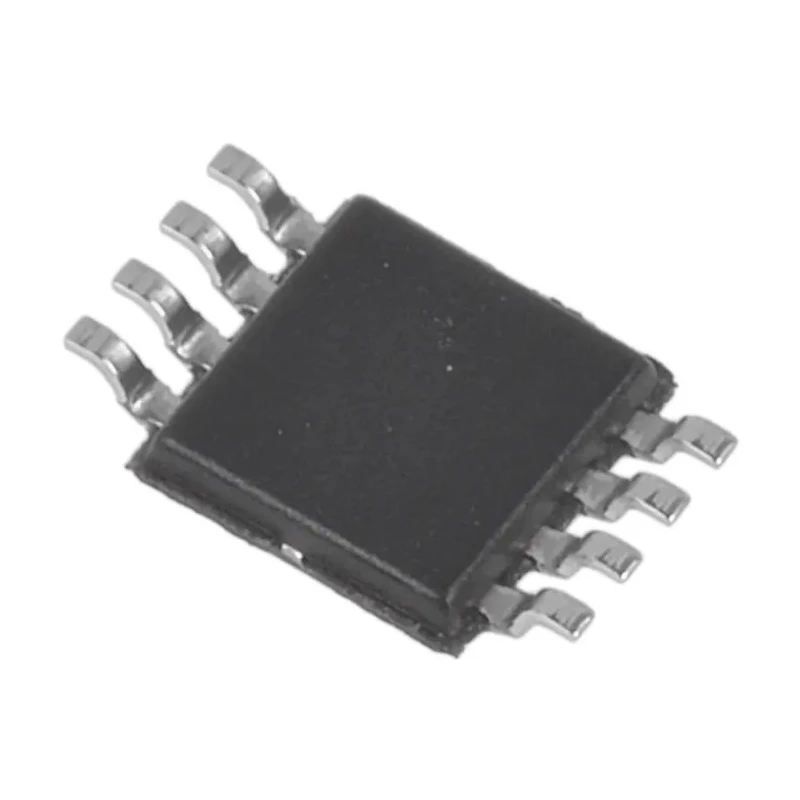

Texas Instruments Digital to Analogue Converter 16 Bit 200 ksps Microwire QSPI SPI 8-Pin MSOP DAC8550IBDGKT
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | DAC8550IBDGKT |
| Width | 3.1mm |
| Mount Type | Surface |
| Settling Time | 10μs |
| Sampling rate | 200ksps |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 105°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | Microwire, QSPI, SPI |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- This DAC uses resistor string architecture for accurate analogue conversion.
- Supports Microwire, QSPI, and SPI interface protocols for flexible communication.
- Operates with a supply voltage range from 3.3V to 5.5V.
- Provides a fast settling time of 10 microseconds suitable for varied industrial applications.
- Designed for operation across wide temperature range from -40°C to 105°C for reliability.
- Compact 3.1 mm x 3.1 mm x 1.1 mm MSOP packaging enables efficient PCB space utilization.
- Single channel output type delivers stable analogue voltage output.
Product Description
Texas Instruments DAC8550IBDGKT is a 16-bit digital to analogue converter designed for high precision and flexibility in industrial, laboratory, and electronic component applications. It supports Microwire, QSPI, and SPI serial interface protocols, enabling seamless integration with various controllers and processors.
The device employs resistor string DAC architecture ensuring stable and accurate analogue voltage outputs ideal for signal processing tasks.
This DAC is packaged in an 8-pin MSOP small outline package measuring 3.1 mm by 3.1 mm with a low profile height of 1.1 mm, which is perfect for compact circuit boards and high-density designs.
Operating over a supply voltage range of 3.3V to 5.5V, the DAC maintains high performance with a fast 10 microseconds settling time and a sample rate of 200 ksps, making it suitable for general purpose and audio-related applications.
The wide operating temperature range of -40°C to 105°C ensures device resilience in challenging environmental conditions, making it apt for industrial and automotive use cases where reliability is paramount.
This DAC uses resistor string architecture for accurate analogue conversion. Supports Microwire, QSPI, and SPI interface protocols for flexible communication. Operates with a supply voltage range from 3.3V to 5.5V. Provides a fast settling time of 10 microseconds suitable for varied industrial applications.
Designed for operation across wide temperature range from -40°C to 105°C for reliability. Compact 3.1 mm x 3.1 mm x 1.1 mm MSOP packaging enables efficient PCB space utilization. Single channel output type delivers stable analogue voltage output.
This product is ideal for use in industrial control systems, laboratory instrumentation, embedded electronics, audio equipment, and other applications requiring precise digital to analogue conversion.
Explore more Digital to Analogue Converters and related semiconductor components on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAC8550IBDGKT has a resolution of 16 bits, allowing for precise analogue voltage output.
The maximum supply voltage for this model is 5.5V.
This unit features a fast settling time of 10 microseconds, making it suitable for various applications.
It supports Microwire, QSPI, and SPI interface protocols, allowing for flexible communication with controllers and processors.
The sampling rate of this digital to analogue converter is 200 ksps.
The DAC8550IBDGKT operates within a temperature range of -40°C to 105°C, ensuring reliability in various environments.
This model has dimensions of 3.1 mm x 3.1 mm x 1.1 mm, making it compact for PCB space utilization.
It provides a single channel output type that delivers stable analogue voltage output.
The device employs a resistor string architecture for accurate analogue conversion.
This digital to analogue converter features a single channel output.
The DAC8550IBDGKT is designed for surface mounting.
The country of origin for this product is India.
