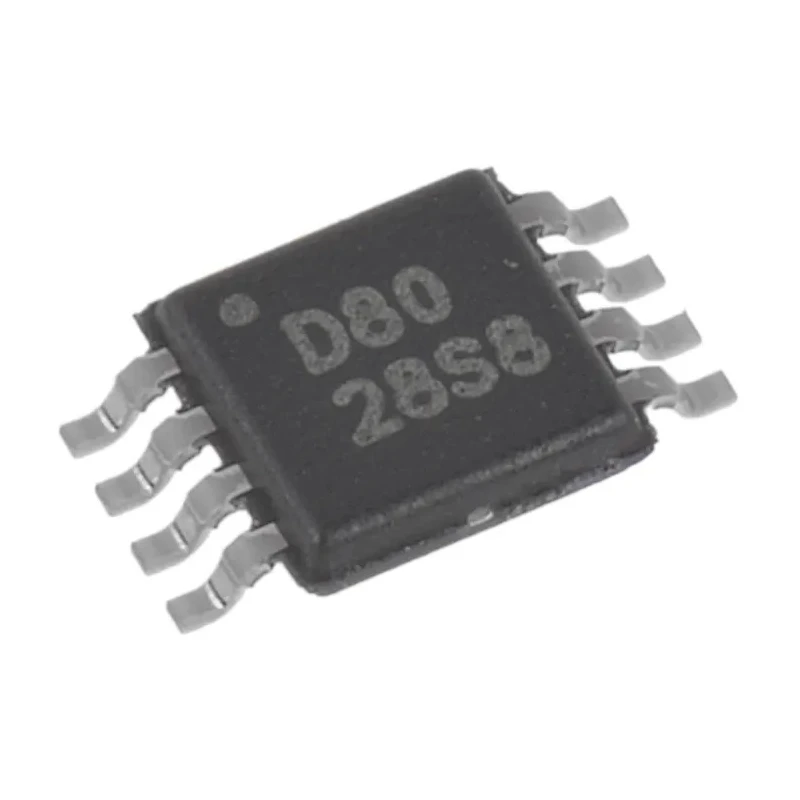

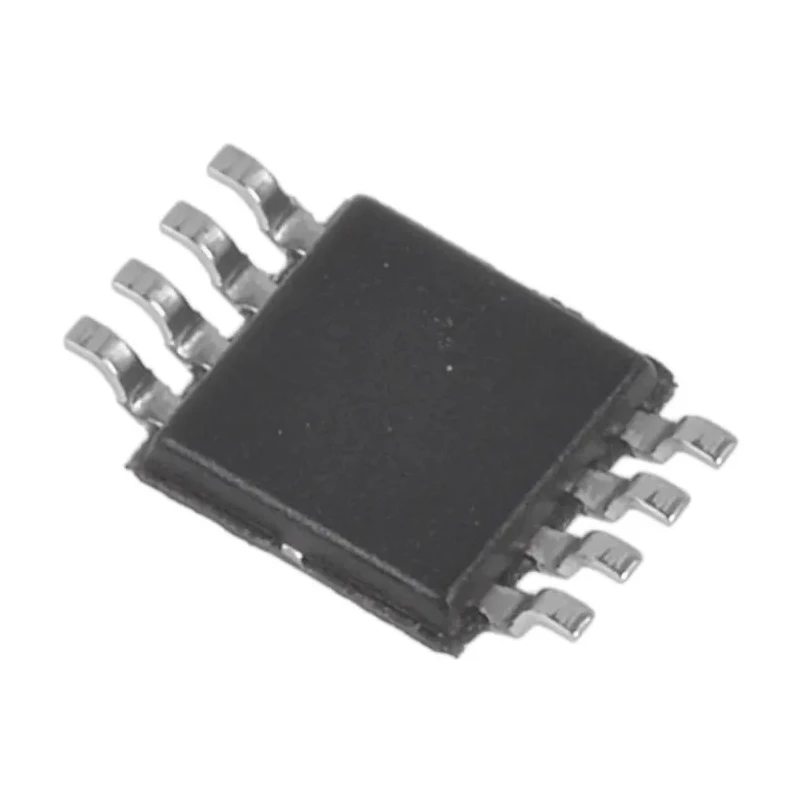

Texas Instruments 16 bit Digital to Analogue Converter DAC8550IBDGKT, Microwire QSPI SPI Interface, 200 ksps, 8-Pin MSOP
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | DAC8550IBDGKT |
| Width | 3.1mm |
| Mount Type | Surface |
| Settling Time | 10μs |
| Sampling rate | 200ksps |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 105°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | Microwire, QSPI, SPI |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- The device features a 16 bit resolution for accurate digital-to-analogue conversion.
- It interfaces via Microwire, QSPI, and SPI protocols, ensuring compatibility with various systems.
- The sampling rate is up to 200 ksps, suitable for fast signal processing.
- Housed in a compact 8-Pin MSOP package for surface mount applications.
- Operating voltage ranges between 3.3V minimum and 5.5V maximum for flexible power supply use.
- Operating temperature range from -40°C to 105°C supports industrial environments.
- Settling time of 10 microseconds ensures rapid response in conversion tasks.
- The package dimensions are 3.1mm length, 3.1mm width, and 1.1mm height, enabling space-saving circuit designs.
Product Description
Texas Instruments DAC8550IBDGKT is a high-performance 16 bit digital to analogue converter designed for precision signal conversion in various industrial and electronic applications. Featuring a resistor string architecture, it delivers accurate analogue voltage output compatible with multiple interface types including Microwire, QSPI, and SPI. This converter supports a sampling rate of 200 ksps, making it suitable for fast and reliable data conversion needs.
Encased in a compact 8-Pin MSOP surface mount package, the DAC8550IBDGKT occupies minimal PCB space, facilitating advanced compact electronic designs. Its operating voltage range from 3.3V to 5.5V and a broad temperature range (-40°C to +105°C) make it robust for demanding environments in industrial automation, communication, and instrumentation sectors.
The 16 bit resolution ensures high accuracy for applications requiring fine analogue output control, while the fast settling time of 10 microseconds enhances system responsiveness. With dimensions of 3.1mm by 3.1mm and a height of 1.1mm, this device blends performance with compact form factor.
16 bit resolution for precise digital-to-analogue conversion. Resistor string architecture ensures linear output voltage. Supports multiple interface types including Microwire, QSPI, and SPI for flexible integration. 200 ksps sampling rate suitable for high-speed conversion scenarios.
Wide supply voltage range from 3.3V to 5.5V for versatile power management. Extended operating temperature range of -40°C to 105°C for industrial use. Compact 8-Pin MSOP surface mount package for space-efficient layouts.
Quick settling time of 10 microseconds enables rapid signal updates. Device dimensions: length 3.1mm, width 3.1mm, height 1.1mm.
This Digital to Analogue Converter is ideal for industrial instrumentation, measurement systems, communication devices, and embedded electronics requiring high precision and reliable performance. It enables engineers to design efficient and accurate systems with compact hardware footprint.
Explore other semiconductor and data conversion components in the Electronics & Electricals category on EnvMart to complement your design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAC8550IBDGKT features a resolution of 16 bits for accurate digital-to-analogue conversion.
It supports a maximum sampling rate of 200 ksps, making it suitable for fast signal processing applications.
This model supports Microwire, QSPI, and SPI interface types for flexible integration with various systems.
The device has dimensions of 3.1mm in length, 3.1mm in width, and 1.1mm in height.
It operates within a voltage range of 3.3V to 5.5V, allowing for versatile power management.
The settling time for this model is 10 microseconds, ensuring rapid response in conversion tasks.
It can operate within a temperature range of -40°C to 105°C, which is suitable for industrial environments.
This digital to analogue converter has a single channel output.
The output type of this device is an analogue voltage, suitable for various applications.
It utilizes a resistor string architecture, which ensures linear output voltage.
The DAC8550IBDGKT is housed in an 8-pin MSOP package, designed for surface mount applications.
The device is manufactured in India.
