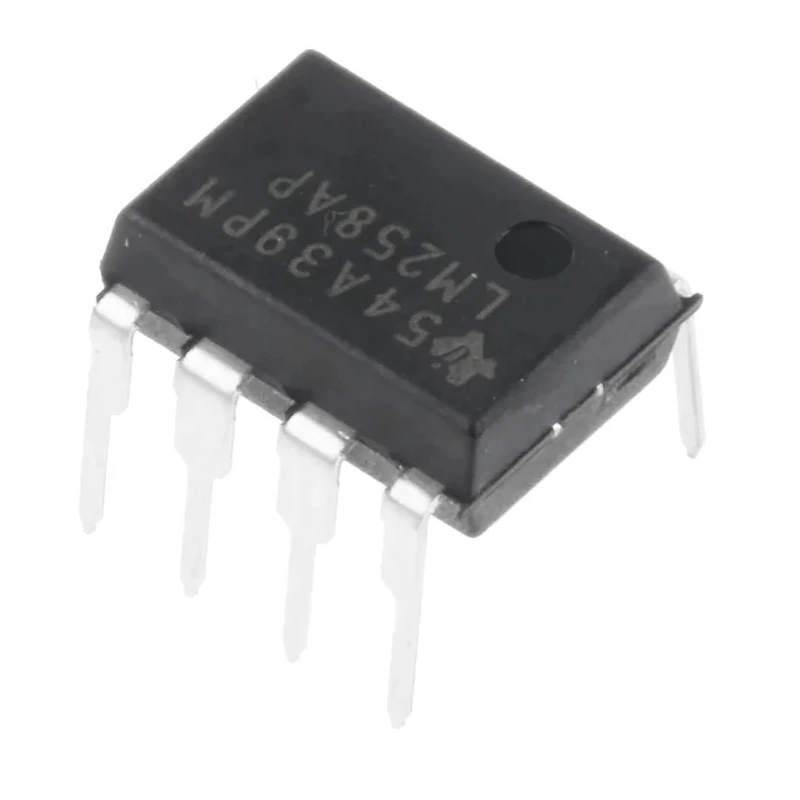

Texas Instruments Operational Amplifier 700 kHz 8-Pin PDIP 30V LM258AP

Texas Instruments LM258AP is a dual-channel, general-purpose operational amplifier designed for a wide range of analog signal processing applications. Featuring a gain bandwidth product of 700 kHz and a slew rate of 0.3 V/µs, this device is optimized for cost-effective performance in non-specialized circuitry where moderate frequency response and accuracy are required.

The LM258AP operates efficiently with a supply voltage ranging from 5 V to a maximum of 30 V, accommodating a broad spectrum of power environments. It features an input offset voltage of 4 mV and bias currents at the nanoampere level, delivering low power consumption suitable for battery-powered and low-power applications.

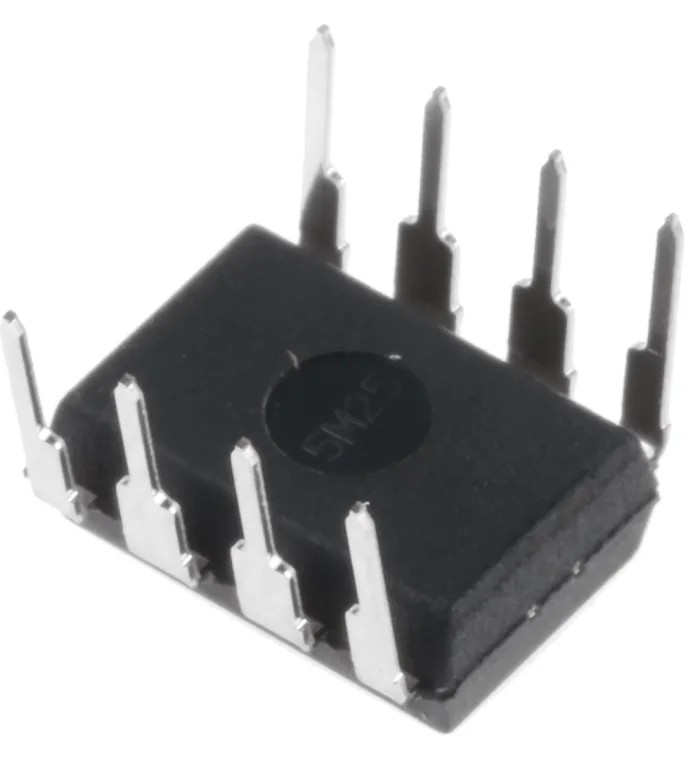

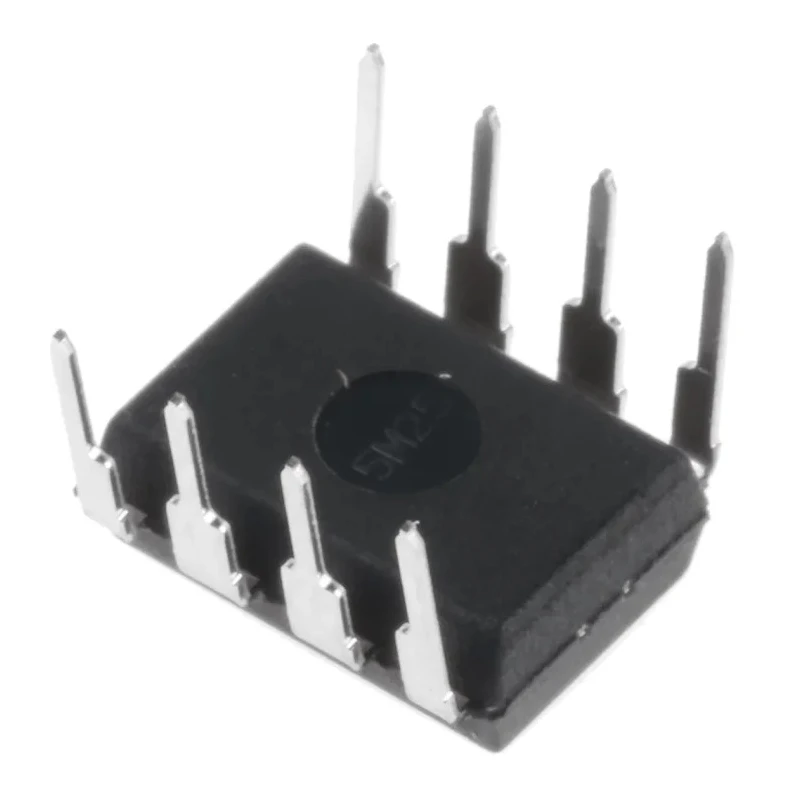

Packaged in an 8-pin PDIP through-hole format, the compact size of the LM258AP (9.81 mm x 6.35 mm x 4.57 mm) makes it ideal for easy integration into printed circuit boards using standard mounting techniques.

Its operating temperature range from -25°C to 85°C allows reliable performance across typical industrial and consumer environments. The product is RoHS compliant, ensuring reduced environmental impact and compatibility with global electronic manufacturing standards.

Dual channel operational amplifier with 8-pin through-hole PDIP package. 700 kHz gain bandwidth product and 0.3 V/µs slew rate. Operating voltage range of 5 V to 30 V supporting diverse circuit requirements. Low input offset voltage and bias current for efficient analog signal processing.

Robust operating temperature range suitable for industrial and commercial uses. Compact dimensions allow easy PCB mounting and integration. RoHS compliant demonstrating adherence to environmental standards. Designed for use in general-purpose amplification, signal conditioning, and comparator circuits.

The Texas Instruments LM258AP Operational Amplifier is widely used in applications including industrial control systems, audio signal processing, instrumentation, and general laboratory equipment. Its dual channel capability enables efficient chip utilization saving board space and cost.

This product listing belongs to the Op Amps category within Semiconductor devices, ensuring that customers find specialized components tailored for analog amplification needs. Choose Texas Instruments for reliable and proven performance in your electronic designs.
