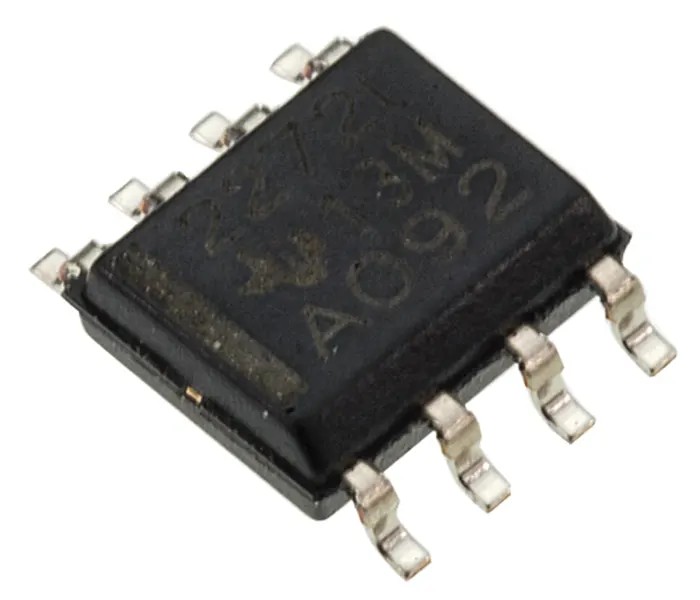

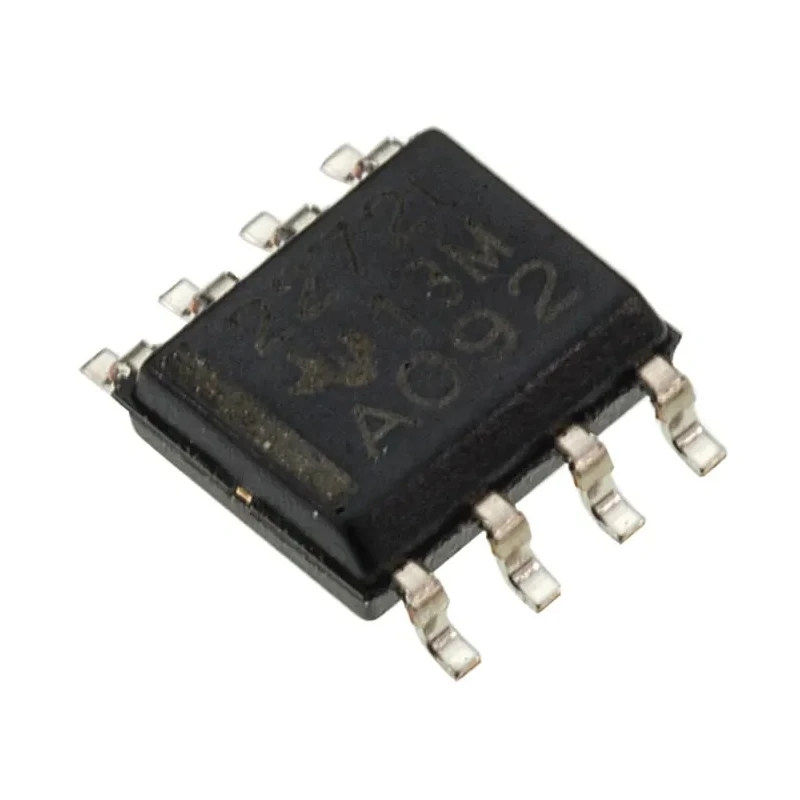

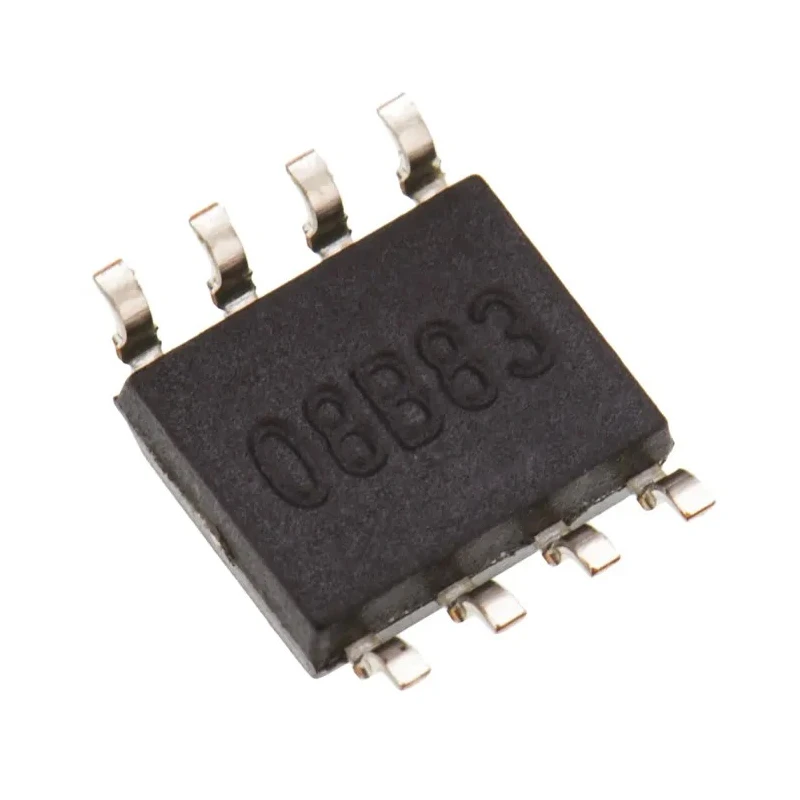

Texas Instruments Operational Amplifier 2.2 MHz 8-Pin SOIC 8V TLC2272IDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | TLC2272IDR |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | TLC2272 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 8V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 2.2MHz |
| Input Bias Current | 800 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.6V/μs |
Key Features
- Dual channel operational amplifier optimized for low noise performance.
- Surface mount SOIC package with 8 pins ensuring compact PCB layout.
- Operates with a minimum voltage of 5V and maximum up to 8V for flexible power supply options.
- Wide operating temperature range from -40°C to 125°C suitable for industrial and automotive environments.
- Gain bandwidth product of 2.2 MHz and slew rate of 3.6 V/μs for fast, accurate signal processing.
- Low input bias current of 800 pA and input offset voltage of 3 mV ensuring precision amplification.
- Output current capability up to 50 mA enabling robust load driving.
- Complies with RoHS standards and automotive standard AEC-Q100 ensuring quality and environmental compliance.
Product Description
Texas Instruments TLC2272IDR is a dual channel operational amplifier featuring a 2.2 MHz gain bandwidth product and housed in an 8-pin SOIC surface mount package. Designed with LinCMOS technology, this amplifier offers low noise performance, high slew rate of 3.6 V/μs, and low bias currents, making it ideal for precision amplification in a variety of electronic systems.
The device supports a wide supply voltage range from 5V to a maximum of 8V and can operate within harsh temperature environments ranging from -40°C to 125°C, meeting automotive standard AEC-Q100. With an output current of 50 mA, it reliably drives loads in demanding industrial, automotive, and electronic applications.
This amplifier meets RoHS compliance for environmental safety and is suitable for use in amplifiers, comparators, and signal conditioning circuits in electronics manufacturing, automotive electronics, instrumentation, and industrial control systems.
Dual channel Operational Amplifier optimized for low noise performance. Compact 8-pin SOIC surface mount package ensures efficient board space usage. Wide operating temperature range of -40°C to 125°C meets automotive and industrial standards.
Gain bandwidth product of 2.2 MHz and high slew rate for accurate signal processing. Low input bias and offset voltages allow for precise amplification tasks. Output current capacity of 50 mA supports robust load requirements.
Compliant with RoHS and Automotive standard AEC-Q100 certifications.
Ideal for integration in electronic components, power connectors, semiconductor amplifiers, and comparator circuits. Perfect choice for laboratory, industrial, automotive, and manufacturing electronics applications. Explore more amplifiers and semiconductor components on EnvMart for your technical projects and electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.2 MHz, which facilitates fast signal processing.
It operates within a temperature range of -40°C to 125°C, making it suitable for both industrial and automotive environments.
This operational amplifier can provide an output current of up to 50 mA, allowing it to drive robust loads effectively.
It supports a minimum supply voltage of 5V and a maximum of 8V, offering flexibility in power supply options.
The input bias current is 800 pA, which contributes to its low noise performance.
The input offset voltage is 3 mV, ensuring precision in amplification tasks.
The slew rate is 3.6 V/μs, enabling fast response times for accurate signal processing.
It is housed in an 8-pin SOIC surface mount package, which is designed for compact PCB layouts.
This operational amplifier complies with the automotive standard AEC-Q100, ensuring its suitability for automotive applications.
Yes, it complies with RoHS standards, which ensures environmental safety in its manufacturing.
This model features two channels, making it suitable for various applications that require dual amplification.
The height of this operational amplifier is 1.58 mm, contributing to its compact design.
