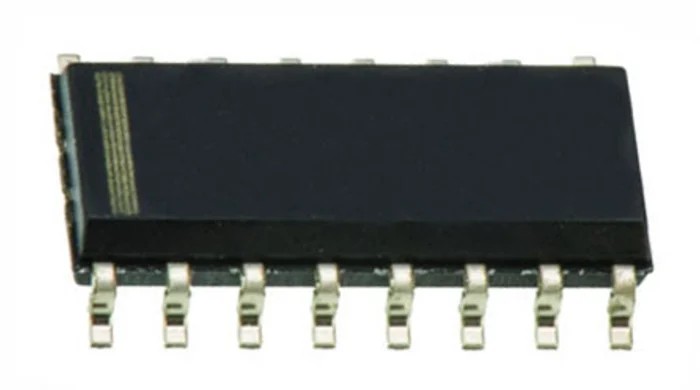

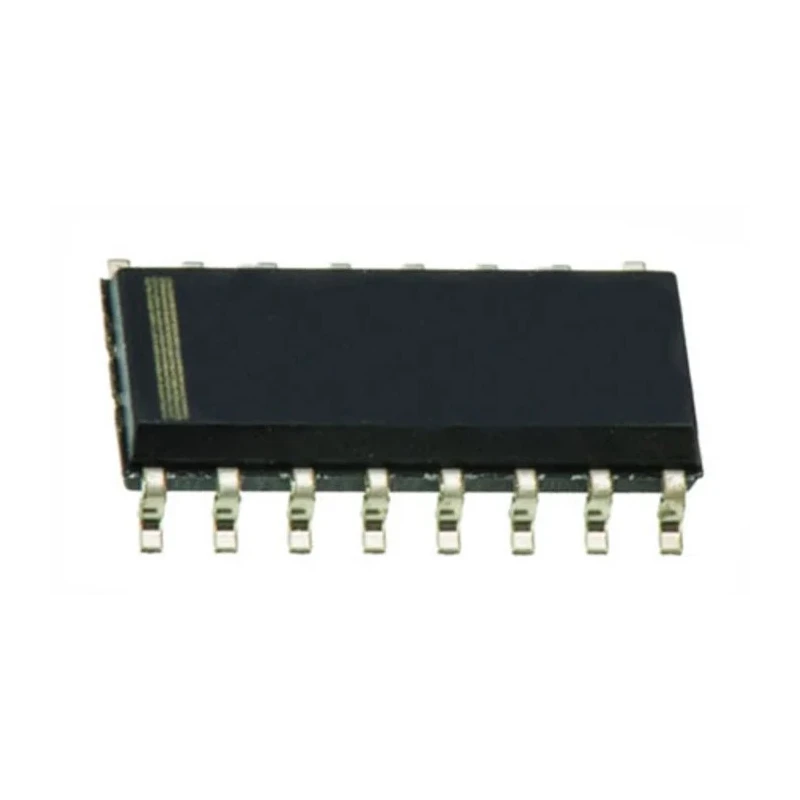

Texas Instruments 4-Channel Differential Non-Inverting Line Receiver, Surface Mount 16-Pin SOIC SN75ALS193D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | SN75ALS193D |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN75ALS193 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Receiver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -400μA |
| Maximum Propagation Delay Time @ CL | 22ns |
| Supply Current | 35mA |
| Maximum Low Level Output Current | 16mA |
Key Features
- Features 4 channels with differential input and output for robust signal integrity.
- Non-inverting polarity ensures signal consistency across connections.
- Operates over a supply voltage range of 4.75V to 5.25V.
- Surface mount package type SOIC with 16 pins allows for space-efficient PCB design.
- Supports minimum operating temperature of 0°C and maximum operating temperature of 70°C.
- Maximum propagation delay time of 22ns suitable for fast data transmission.
- Low supply current of 35mA reduces power consumption in circuit applications.
- Maximum low-level output current of 16mA and high-level output current of -400μA.
Product Description
Texas Instruments SN75ALS193D is a 4-channel line receiver IC designed for differential signal reception with a non-inverting logic function. Housed in a compact 16-pin SOIC surface-mount package, it enables efficient PCB layout with minimal footprint. This line receiver operates reliably over a supply voltage range of 4.75V to 5.25V, catering to varied power specifications while maintaining a minimum operating temperature of 0°C and maximum of 70°C.
Boasting a maximum propagation delay of 22ns at capacitive load, this IC ensures rapid data signal transition suitable for high-speed communications. With a supply current of 35mA and output currents including a maximum low-level of 16mA and high-level of -400μA, it balances performance with low power consumption effectively.
Its differential input and output with non-inverting polarity support robust data transmission conforming to RS-422 standards, widely used in industrial control and data communications. The package dimensions (length 10mm, width 4mm, height 1.75mm) allow seamless integration in compact electronic devices and equipment.
This device is ideal for applications involving line interface ICs, interface and communications circuits, and industrial control systems, providing high reliability and consistent signal integrity. It is widely applicable in electronics components for power and connectors in semiconductor device categories.
Features 4 independent input/output channels for differential non-inverting signals. Designed for mounting on surface mount technology (SMT) boards. Compatible with RS-422 and similar standard communication protocols. Ensures reliable operation over industrial temperature ranges.
Compact SOIC package provides space-saving solution for electronic circuits. Explore the full range of Line Interface ICs and semiconductor devices on EnvMart to find complete solutions tailored to your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range of 4.75V to 5.25V.
It features 4 independent input/output channels for differential non-inverting signals.
The maximum propagation delay time is 22ns at capacitive load, suitable for fast data transmission.
The package dimensions are 10mm in length, 4mm in width, and 1.75mm in height.
It supports a minimum operating temperature of 0°C and a maximum operating temperature of 70°C.
It provides a differential output type, ensuring robust signal integrity.
The supply current is 35mA, which helps in reducing power consumption in circuit applications.
The maximum low-level output current is 16mA.
The maximum high-level output current is -400μA.
It is designed for surface mount technology (SMT) applications, housed in a SOIC package.
This model functions as a line receiver with non-inverting logic.
