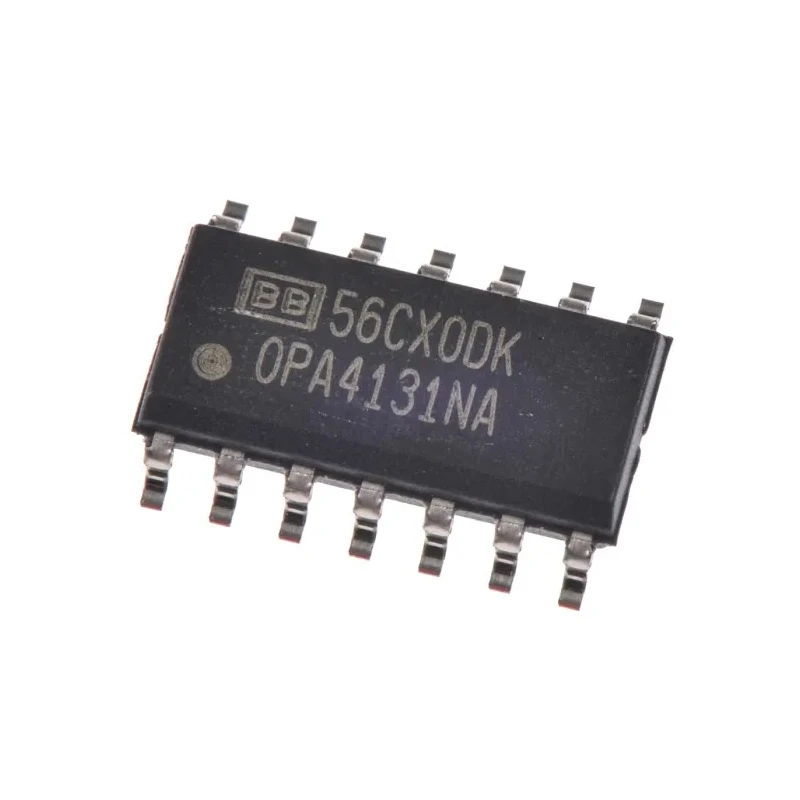

Texas Instruments Operational Amplifier 4 MHz Gain Bandwidth, 14-Pin SOIC, 4 Channels, 4.5-18V OPA4131NA

Texas Instruments OPA4131NA is a high-performance operational amplifier featuring a gain bandwidth of 4 MHz and housed in a compact 14-pin SOIC surface mount package. It integrates four amplifier channels, making it suitable for multipurpose amplification needs in electronic circuitry.

This operational amplifier supports a broad supply voltage ranging from 4.5 V to a maximum of 18 V, offering versatility for various power supply constraints. Its JFET input stage provides low input offset voltage (±1 mV) and minimal input bias and offset currents (±50 pA), making it ideal for precision instrumentation and signal conditioning applications.

The device operates reliably across an extended temperature range from -40°C to 85°C, ensuring durability under harsh industrial and environmental conditions. With a slew rate of 10 V/μs, it can effectively handle fast-changing input signals, useful in analog signal processing and control systems.

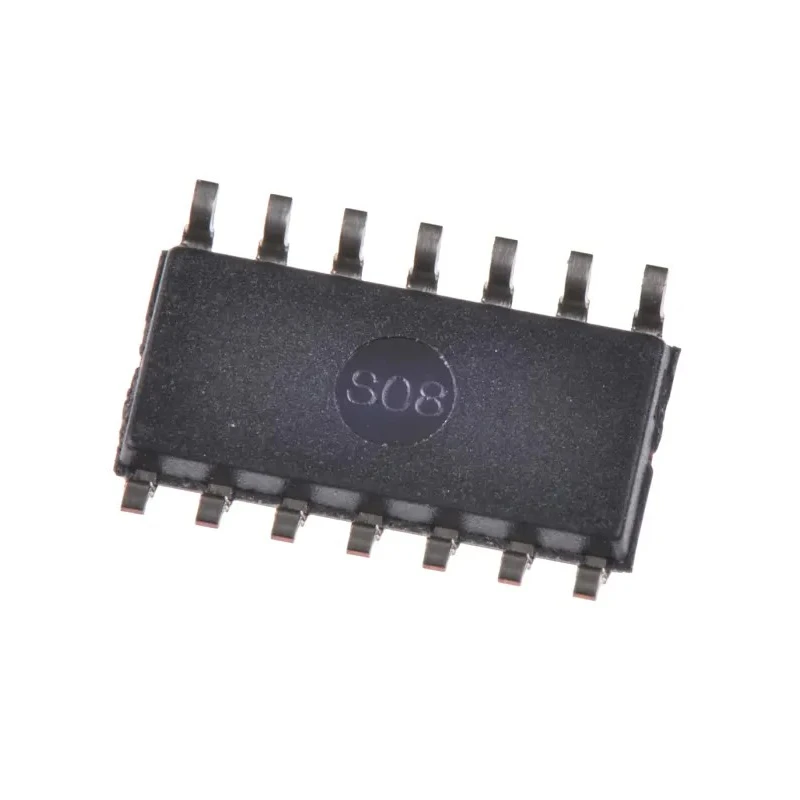

The compact SOIC package measures 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height, facilitating integrated circuit board designs with space constraints. It is designed for surface mounting, enhancing automated assembly efficiency and consistent performance.

Texas Instruments OPA4131NA operational amplifiers find extensive use in industrial automation, laboratory instruments, audio equipment, instrumentation amplifiers, data acquisition systems, and various other electronic and semiconductor applications requiring reliable and precise amplification.

Features a gain bandwidth product of 4 MHz for high-frequency applications. Operates on a supply voltage range from 4.5V to 18V providing flexible power use. Includes 4 amplifier channels in a single device reducing component count.

Low input offset and bias currents ensure accuracy in sensitive circuits. Compact 14-pin SOIC package optimized for surface mount technology. Wide operational temperature range ensures stable operation in industrial environments.

High slew rate supports fast response in dynamic signal conditions. JFET input op amp design offers low noise and high input impedance. Explore more Operational Amplifiers and semiconductor components at EnvMart for your electronic design and production needs.
