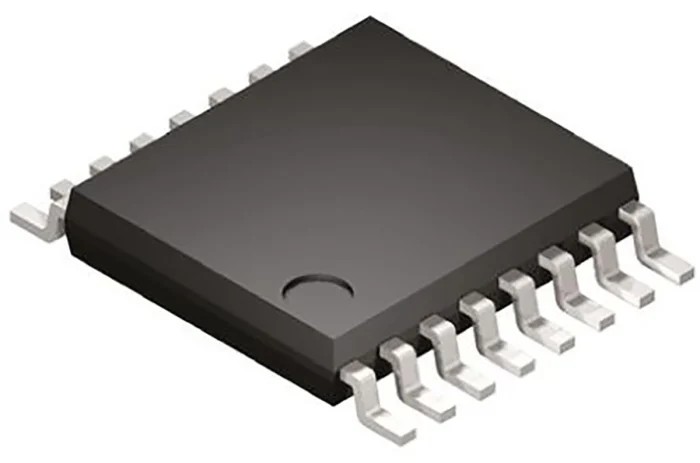

Texas Instruments 4-Channel CMOS Line Receiver, 3-State Output, 16-Pin TSSOP Package AM26C32IPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | AM26C32IPW |
| Width | 6.6mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | AM26C32 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Receiver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | CMOS |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -6mA |
| Maximum Propagation Delay Time @ CL | 27ns |
| Supply Current | 15mA |
| Maximum Low Level Output Current | 6mA |
Key Features
- The device belongs to the AM26C32 series and features a CMOS logic family.
- Offers 4 independent channels supporting differential input signals.
- Operates with a supply voltage range from 4.5V to 5.5V.
- Supports 3-state output functionality suitable for bus-oriented systems.
- Surface mount type with a compact TSSOP package of 16 pins.
- Maximum propagation delay time is 27 nanoseconds under typical load.
- Operating temperature range spans from -40°C to 85°C, suitable for industrial applications.
- Typical supply current is 15 mA, ensuring low power consumption.
Product Description
Texas Instruments AM26C32IPW is a 4-channel line receiver designed on CMOS technology, featuring a 3-state output for enhanced bus control. Packaged in a 16-pin Thin Shrink Small Outline Package (TSSOP), this surface mount device facilitates integration in compact electronic systems.
This line receiver supports differential inputs commonly used in RS-422 communication interfaces, offering reliable signal reception and noise immunity in industrial, commercial, and communication equipment.
Operating with a minimum supply voltage of 4.5V and a maximum of 5.5V, the AM26C32IPW maintains a maximum propagation delay of 27 nanoseconds under load conditions, ensuring fast signal processing. Its operating temperature range from -40°C to 85°C makes it suitable for harsh environments.
The device draws a supply current of approximately 15 mA, optimizing power efficiency while maintaining performance. Package dimensions of 5.1 mm length, 6.6 mm width, and 1.2 mm height allow convenient installation on printed circuit boards with surface mounting.
The AM26C32IPW is extensively used in industrial control systems, data acquisition, instrumentation, and communication devices. Although it does not conform to automotive standards, its versatile features make it suitable for a wide range of interface digital applications requiring multi-channel differential line reception with 3-state output capability.
The device features 4 independent CMOS line receiver channels. It accepts differential input signals and produces 3-state outputs for bus interfacing. Designed with a compact TSSOP surface mount package, facilitating space-saving PCB layouts.
Operates within a temperature range from -40°C to 85°C, suitable for industrial environments. Typical supply current is 15 mA for efficient power consumption. Package dimensions are optimized for modern electronics assembly.
Used primarily in RS-422 line receiver applications requiring multiple channels. Explore more Texas Instruments Line Interface ICs and interface receiver products at EnvMart for your advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates within a temperature range from -40°C to 85°C, making it suitable for industrial environments.
This unit supports 4 independent channels for differential input signals.
The typical supply current for the AM26C32IPW is approximately 15 mA, optimizing power efficiency.
The maximum propagation delay time under typical load conditions is 27 nanoseconds.
It comes in a 16-pin Thin Shrink Small Outline Package (TSSOP), designed for surface mounting.
The dimensions are 5.1 mm in length, 6.6 mm in width, and 1.2 mm in height.
It features a 3-state output functionality suitable for bus-oriented systems.
No, this device does not conform to automotive standards but is suitable for a wide range of digital applications.
The logic family of this line receiver is CMOS, which is designed for low power consumption and high performance.
The country of origin for this product is India.
