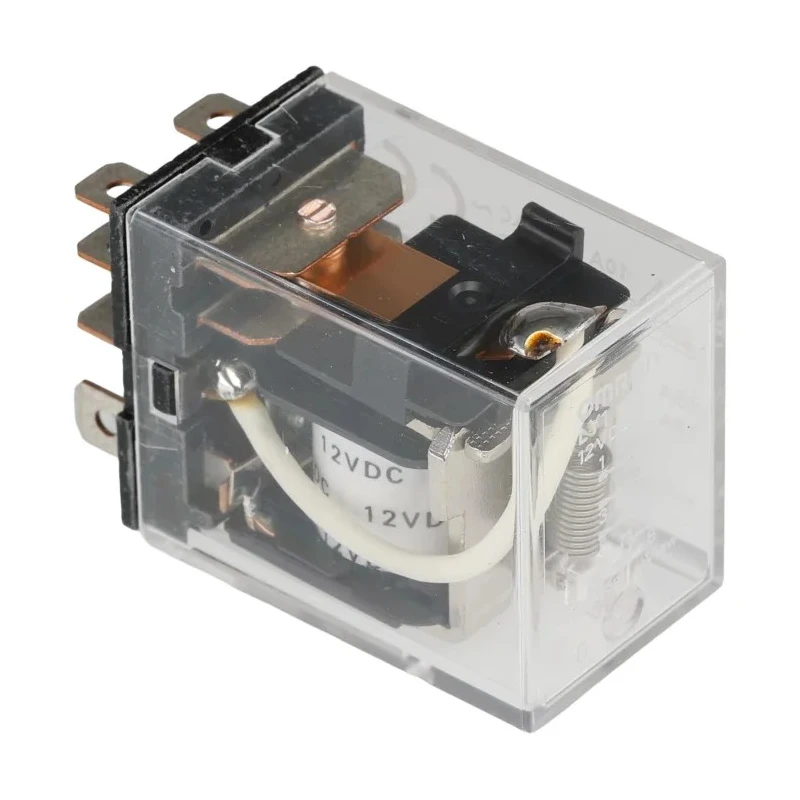

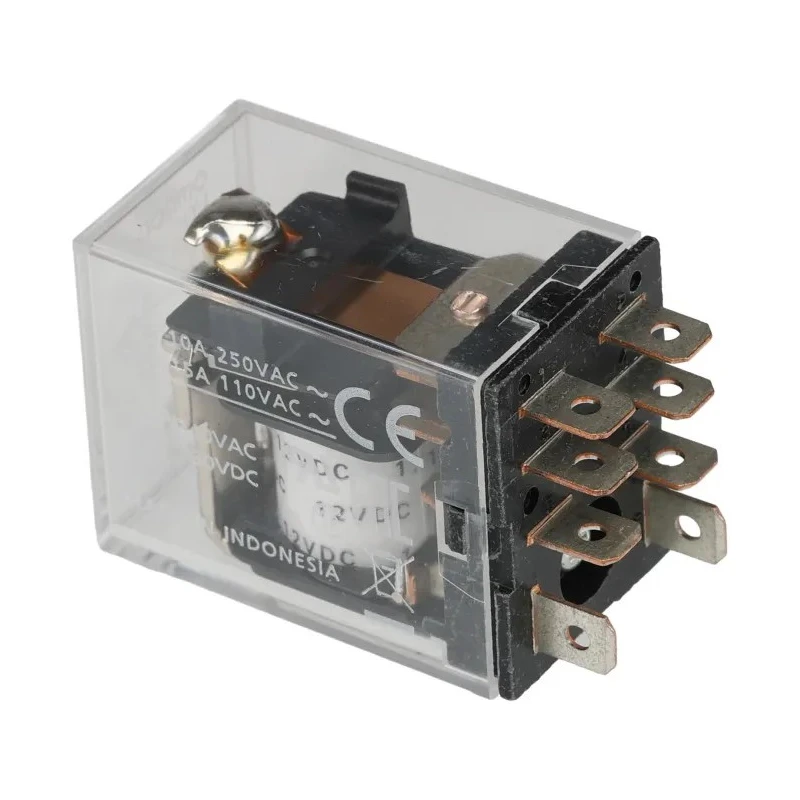

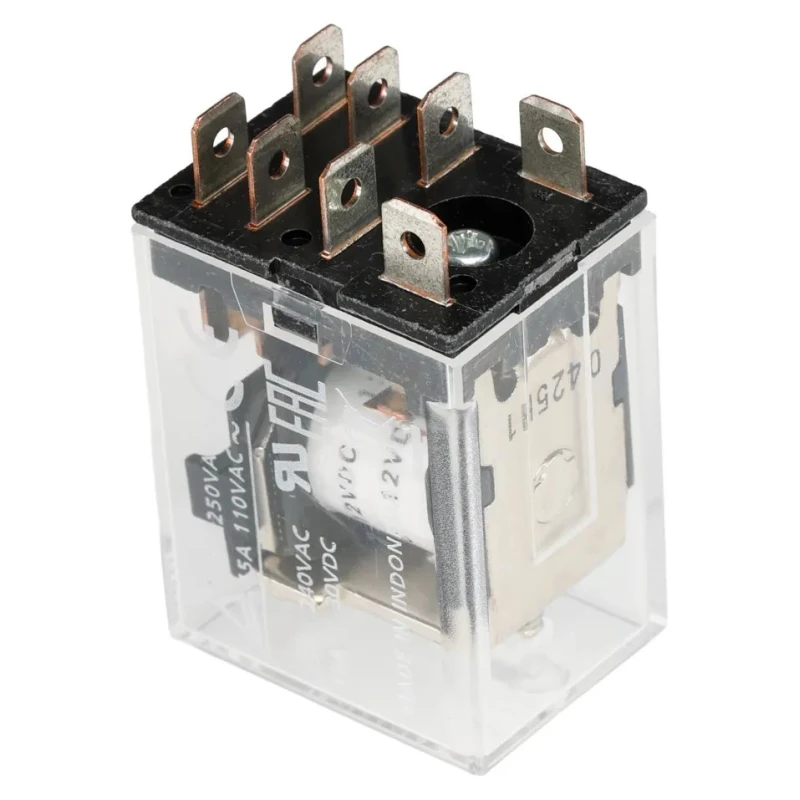

Omron Power Relay 12V DC Coil Voltage 15A Switching Current SPDT Contact Configuration LY1 12VDC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | LY1 12VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY1 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 900mW |
| Switching Power | 0.9W |
Key Features
- Features a 12V DC coil for efficient activation.
- Supports high switching current of 15A suitable for heavy loads.
- Single Pole Double Throw (SPDT) contact configuration for versatile control.
- Compact dimensions compatible with PCB pin terminals for easy mounting.
- Operates reliably between -25°C and 55°C ambient temperatures.
- Contact material is silver alloy ensuring low resistance and enhanced conductivity.
- Isolation of 2kV AC between coil and contact for electrical safety.
- Mechanical lifespan rated for 100 million operations enhancing durability.
Product Description
Omron LY1 12VDC Power Relay offers a robust solution for automation and control applications requiring a 12V DC coil voltage and SPDT contact configuration. This relay is engineered for general-purpose uses across industrial, electrical, and consumer electronics sectors.
Designed to handle a switching current of 15A, this power relay supports switching voltages up to 125V DC and 125V AC, making it suitable for wide-ranging power circuits and mechanical control systems.
Its compact size with dimensions 21.5mm (length) x 36mm (width) x 28mm (height), and PCB pin terminal type, allows seamless integration into printed circuit boards. The contact material utilizes silver alloy to maintain low contact resistance of 50mΩ, ensuring reliability and long operational life.
Operational across a temperature range from -25°C to 55°C, the relay supports demanding environments. An isolation voltage of 2kV AC between coil and contacts further mitigates electrical hazards, enhancing system safety.
Features a 12V DC coil for activation in control circuits. Supports 15A switching current rated for power controls. Single Pole Double Throw (SPDT) contact configuration for flexible circuit control. Compact and suitable for PCB mounting with pin terminals.
Operates in a wide temperature range from -25°C to +55°C. Silver alloy contacts provide enhanced conductivity and durability. 2kV AC isolation between coil and contacts ensures safety. Mechanical lifespan of 100 million operations offers exceptional reliability.
This relay is widely applied in industrial automation systems, electrical panels, consumer electronics, and mechanical control assemblies. It reliably manages power switching tasks where strong, consistent performance is essential.
Choose Omron LY1 12VDC Power Relay for efficient and durable control in industrial, laboratory, and commercial electrical applications. Explore more Power Relays and components at EnvMart for your automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 12V DC, which is required for its activation in control circuits.
This relay supports a maximum switching current of 15A, making it suitable for heavy loads.
The dimensions of this unit are 21.5mm in length, 36mm in width, and 28mm in height.
The contact configuration of the LY1 12VDC is Single Pole Double Throw (SPDT), allowing for versatile control.
It operates reliably within a temperature range of -25°C to 55°C, suitable for various environments.
The contact material is silver alloy, which ensures low resistance and enhanced conductivity.
There is an isolation voltage of 2kV AC between the coil and contacts, enhancing electrical safety.
This model uses PCB pin terminals, making it compatible for easy mounting on printed circuit boards.
The contact resistance is rated at 50mΩ, which contributes to its reliability and operational life.
The LY1 12VDC Power Relay is approved by CSA and UL, indicating compliance with safety standards.
The mechanical lifespan is rated for 100 million operations, providing exceptional reliability for long-term use.
This unit can handle switching voltages up to 125V DC and 125V AC, making it versatile for various applications.
