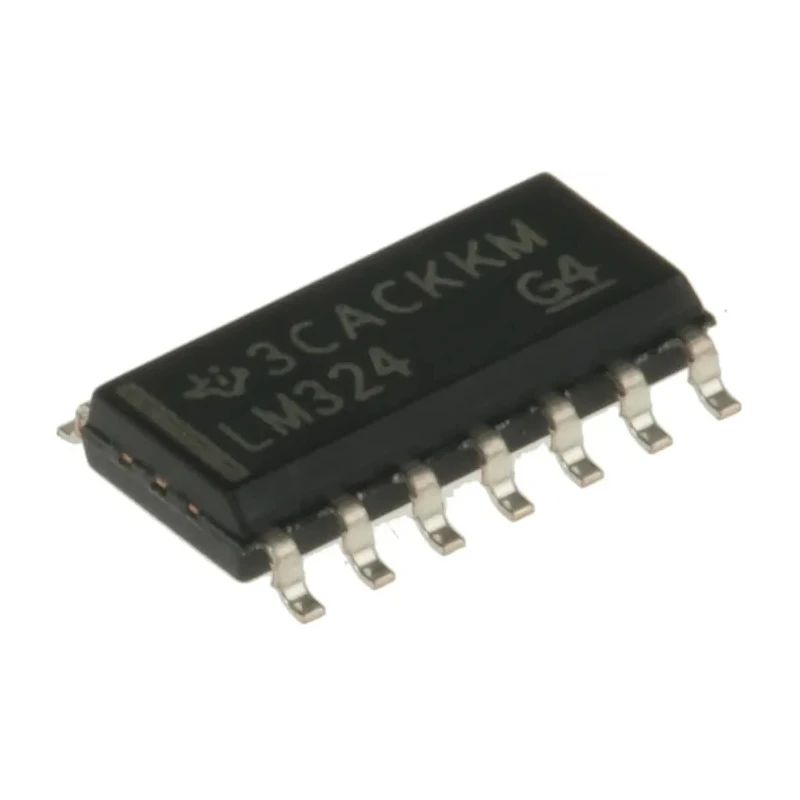

Texas Instruments Operational Amplifier LM324D 1.2 MHz, 14-Pin SOIC, 5V-30V LM324D

Texas Instruments LM324D operational amplifier provides a versatile general-purpose amplifier solution featuring a gain bandwidth product of 1.2 MHz and housed in a compact 14-pin SOIC package designed for surface mount applications. The device operates over a supply voltage range from 5V to 30V and is rated for ambient temperatures from 0°C to 70°C, suitable for a wide range of industrial and consumer environments.

The LM324D incorporates four operational amplifier channels within a single package, delivering efficient multi-channel amplification. Its input offset voltage of 9 mV and input bias current of -500 nA ensure accurate signal processing with minimal offset errors. The slew rate of 0.5 V/μs facilitates processing of moderate frequency signals with low distortion.

Dimensions of the SOIC package measure 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height, allowing for compact PCB designs and automated assembly. The maximum output current of -10 mA supports driving a variety of loads in diverse applications.

The LM324 series is well-regarded for its low power consumption and ability to operate with single-supply voltages where the input common-mode voltage includes ground, making it ideal for battery-powered and portable devices.

Four independent operational amplifier channels included in one package. Surface mount SOIC package supports high-density circuitry. Wide supply voltage range from 5V to 30V enhances application versatility. Input offset voltage and currents minimized for precise amplification.

Slew rate suitable for general-purpose signal conditioning. Operating temperature range accommodates typical industrial environments. Compact package size supports space-constrained designs. Robust output current capability for diverse load driving.

Widely used in industrial, laboratory, and consumer electronics for amplification tasks. Compatible with automated PCB assembly processes.

This Texas Instruments LM324D operational amplifier combines reliable performance and ease of integration, making it a preferred choice for designers requiring a cost-effective and flexible quad operational amplifier solution. Browse the Operational Amplifier category on EnvMart for more options.
