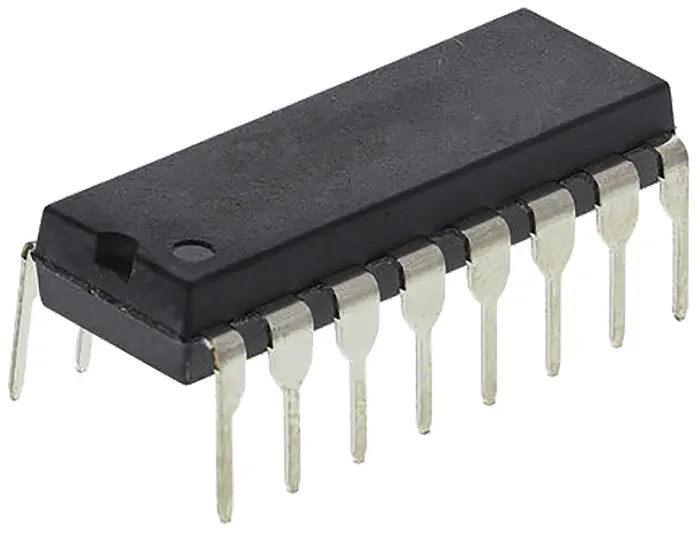

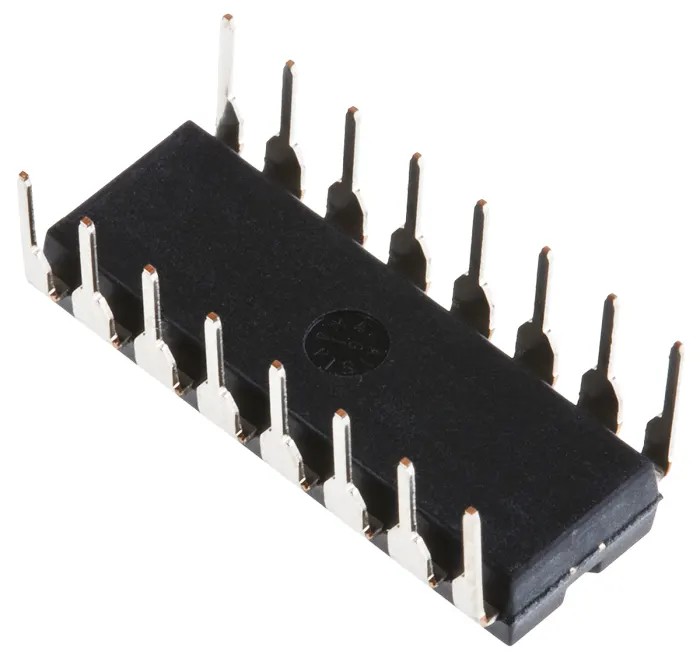

Texas Instruments Line Receiver TTL 3 State 16-Pin PDIP MC3486N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | MC3486N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | TTL, 3 State |
| Series | MC3486 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| IC Type | Receiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | TTL |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 85mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Operates at a minimum supply voltage of 4.75V and maximum of 5.25V.
- Maximum propagation delay time at capacitive load is 35ns.
- Temperature range from 0°C to 70°C supports a wide range of applications.
- Supply current is typically 85mA during operation.
- Compatible with RS-422 line receiver systems.
- Package dimensions include a height of 5.08mm, length of 19.69mm, and width of 6.6mm.
Product Description
Texas Instruments MC3486N is a TTL Line Receiver IC with a 3 state output, provided in a 16-pin PDIP through hole mount package. This device is designed for interfacing differential inputs and outputs TTL logic signals, making it highly suitable for industrial automation, instrumentation, and communication systems where reliable line signal reception is critical.
The MC3486N operates efficiently within a voltage supply range of 4.75V to 5.25V and features a maximum propagation delay time of 35 nanoseconds at capacitive load, ensuring fast and responsive signal processing. The device supports ambient temperatures from 0°C to 70°C, catering to typical commercial and industrial environments.
This line receiver has a maximum low level output current of 8mA and a maximum high level output current of -0.4mA, supporting robust interfacing with other TTL components. The supply current during operation is approximately 85mA. Its standard package dimensions are 19.69mm in length, 6.6mm in width, and 5.08mm in height.
The MC3486N is part of the MC3486 series by Texas Instruments, widely used in RS-422 line receiver applications. Its through hole mount package allows easy installation in prototype and production environments.
Operates at 4.75V to 5.25V supply voltage range. 16-pin PDIP through hole package for reliable mounting. Fast propagation delay of 35ns suitable for high-speed data lines. Differential input type with TTL, 3 state output logic.
Ambient temperature range from 0°C to 70°C.
This product supports applications in industrial control, communication systems, and electronic instrumentation. It is ideal for integration into RS-422 communications and other line driver/receiver configurations where TTL compatibility and signal integrity are priorities.
Explore more products from the Texas Instruments line receiver series on EnvMart for comprehensive semiconductor solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay time at capacitive load is 35 nanoseconds.
It supports an ambient temperature range from 0°C to 70°C.
This unit features a TTL, 3 state output type.
The supply current is typically 85mA during operation.
The package dimensions are 19.69mm in length, 6.6mm in width, and 5.08mm in height.
It accepts differential input signals.
The maximum high level output current is -0.4mA.
The maximum low level output current is 8mA.
This model features a through hole mounting type.
It is commonly used in industrial control, communication systems, and electronic instrumentation, particularly in RS-422 applications.
This line receiver is part of the MC3486 series by Texas Instruments.
