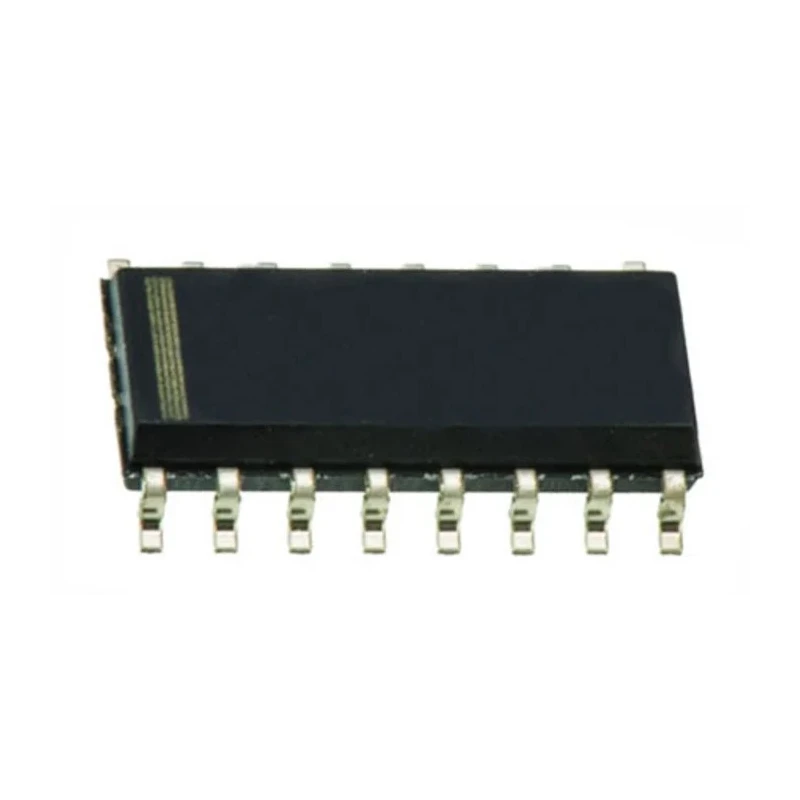

Texas Instruments 4-Channel Differential Non-Inverting Line Receiver 16-Pin SOIC SN65LBC173AD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | SN65LBC173AD |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65LBC173A |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Receiver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 16ns |
| Supply Current | 16mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Supports differential input and output for robust signal communication.
- Operates within a supply voltage range of 4.75V to 5.25V.
- Features a propagation delay time of 16 nanoseconds at CL.
- Designed for operation between -40°C and 85°C operating temperatures.
- Supply current is 16mA for efficient power consumption.
- Maximum output high and low currents are -8mA and 8mA respectively.
- Ideal for RS-422 line receiver applications in industrial and communication systems.
- Non-inverting polarity ensures signal integrity in line reception.
Product Description
Texas Instruments SN65LBC173AD is a high-performance 4-channel line receiver IC designed for differential, non-inverting signal reception in industrial and communication applications. This device comes in a compact 16-pin SOIC surface-mount package, optimized for space efficiency and ease of integration on printed circuit boards.
The line receiver operates with a minimum supply voltage of 4.75 volts and a maximum of 5.25 volts, consuming 16mA supply current which ensures low power usage in continuous operation. It supports a differential input and output configuration, providing robust noise rejection in signal transmission lines.
The IC features a fast maximum propagation delay time of 16 nanoseconds at the specified load capacitance, enabling quick response in high-speed communication environments. It functions reliably across a wide ambient temperature range from minus 40 degrees Celsius up to 85 degrees Celsius, making it suitable for various industrial conditions.
The package dimensions measure 10 mm in length, 4 mm in width, and 1.75 mm in height, making it suitable for compact circuit designs. The maximum high and low level output currents are rated at -8mA and 8mA respectively, providing adequate drive for connected circuits.
Commonly used in RS-422 line receiver applications, the SN65LBC173AD ensures non-inverting polarity, preserving signal integrity throughout the communication chain. This IC is intended for surface mount technology enabling efficient assembly processes.
Supports differential input and output signaling for noise immunity. Compact 16-pin SOIC surface mount package. Wide operating temperature range of -40°C to 85°C. Low supply current consumption of 16mA. Fast 16ns propagation delay suitable for high-speed applications.
Non-inverting polarity to maintain signal fidelity. Compatible with RS-422 line receiver specifications. Maximum output current capability of 8mA.
This Texas Instruments line interface IC is widely used in industrial, communication, and instrumentation systems requiring reliable differential line reception. Explore more high-quality semiconductor interface ICs on EnvMart for your design and production needs.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65LBC173AD operates within a supply voltage range of 4.75V to 5.25V.
It features a maximum propagation delay time of 16 nanoseconds at the specified load capacitance.
This model operates reliably between -40°C and 85°C.
This line receiver supports 4 channels for differential signal reception.
The package dimensions are 10 mm in length, 4 mm in width, and 1.75 mm in height.
The supply current for this device is 16mA, ensuring efficient power consumption.
It has a maximum high level output current of -8mA and a maximum low level output current of 8mA.
This model accepts differential input signals for robust communication.
Yes, it is designed for surface mount technology, making it easy to integrate into circuit boards.
The output signal polarity is non-inverting, which helps maintain signal integrity.
It is commonly used in RS-422 line receiver applications within industrial and communication systems.
It is classified as a receiver IC, specifically a line transceiver in the SN75 logic family.
