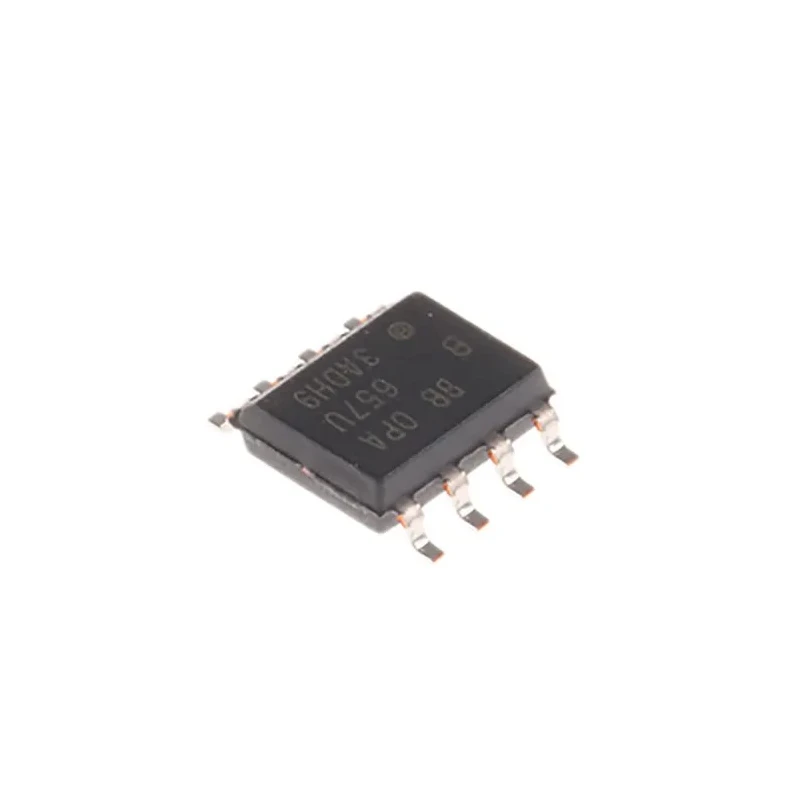

Texas Instruments Operational Amplifier 1.6 GHz, 8-Pin Surface Mount SOIC, 12V OPA657UB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA657UB |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA657 |
| Output Current | 70mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 8V |
| GBP - Gain Bandwidth Product | 1.6GHz |
| Input Bias Current | 5 nA |
| Vos - Input Offset Voltage | ±2.6 mV |
| Slew Rate | 700V/μs |
| Input Offset Current | ±2.5 nA |
Key Features
- This operational amplifier features JFET input for ultra-low input bias currents.
- It offers a high slew rate of 700 V/μs for fast signal response.
- The device operates at supply voltages between 8V and 12V.
- It includes a single channel with 8 pins in a surface-mount SOIC package.
- Typical applications include precision instrumentation, medical equipment, and high-accuracy data acquisition.
- The amplifier is RoHS compliant and designed for industrial temperature ranges from -40°C to 85°C.
- Output current capability up to 70 mA supports demanding circuit requirements.
Product Description
Texas Instruments OPA657UB operational amplifier is a high-speed, low-noise device designed for precision applications. Featuring a 1.6 GHz gain bandwidth product and an 8-pin surface mount SOIC package, this amplifier excels in demanding electronic circuits.
With a JFET input stage, the device achieves ultra-low input bias currents, typically 5 nA, by eliminating isolation-junction leakage. The high slew rate of 700 V/μs ensures fast signal response and low distortion.
Operating over a supply voltage range of 8 to 12 volts and a temperature range of -40°C to 85°C, the OPA657UB is well suited for industrial and laboratory environments. Its output current of up to 70 mA supports driving various loads effectively.
Standard dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height enable compact PCB designs. The product is RoHS compliant, aligning with global environmental standards. This operational amplifier features JFET input for ultra-low input bias currents.
It offers a high slew rate of 700 V/μs for fast signal response. The device operates at supply voltages between 8V and 12V. It includes a single channel with 8 pins in a surface-mount SOIC package. Typical applications include precision instrumentation, medical equipment, and high-accuracy data acquisition.
The amplifier is RoHS compliant and designed for industrial temperature ranges from -40°C to 85°C. Output current capability up to 70 mA supports demanding circuit requirements.
The OPA657UB Operational Amplifier is ideal for use in instrumentation amplifiers, electrometer and photodetector amplifiers, medical devices, and high-accuracy data acquisition systems.
Explore EnvMart for more Texas Instruments semiconductor amplifiers offering high precision and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.6 GHz.
It operates at supply voltages between 8V and 12V.
The maximum output current capability is up to 70 mA.
This model is designed for industrial temperature ranges from -40°C to 85°C.
It includes a single channel.
The dimensions are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
It comes in an 8-pin surface mount SOIC package.
The input bias current is typically 5 nA.
The slew rate is 700 V/μs, allowing for fast signal response.
Yes, the operational amplifier is RoHS compliant, aligning with global environmental standards.
Typical applications include precision instrumentation, medical equipment, and high-accuracy data acquisition.
It features a JFET input stage for ultra-low input bias currents.
