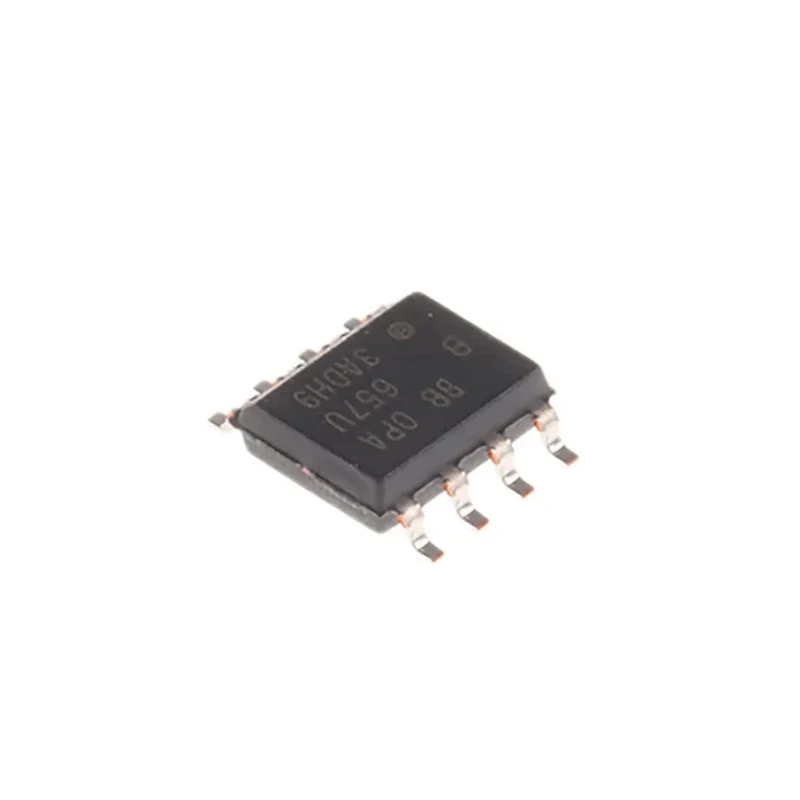

Texas Instruments Operational Amplifier 1.6 GHz 8-Pin SOIC Surface Mount OPA657UB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA657UB |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA657 |
| Output Current | 70mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 8V |
| GBP - Gain Bandwidth Product | 1.6GHz |
| Input Bias Current | 5 nA |
| Vos - Input Offset Voltage | ±2.6 mV |
| Slew Rate | 700V/μs |
| Input Offset Current | ±2.5 nA |
Key Features
- The amplifier features a gain bandwidth product of 1.6 GHz.
- It supports a supply voltage range from 8V to 12V.
- Comes in an 8-pin SOIC surface mount package.
- Provides low input offset voltage of ±2.6 mV for precision applications.
- Has a high slew rate of 700 V/μs allowing fast signal response.
- Input bias current is extremely low at 5 nA due to Difet technology.
- Maximum output current capability is 70 mA.
- Operational temperature range spans from -40°C to 85°C.
Product Description
Texas Instruments OPA657UB is a high-speed, precision operational amplifier featuring JFET input technology (Difet) that dramatically reduces input bias current by eliminating isolation-junction leakage. It delivers an exceptional combination of speed and accuracy suitable for demanding industrial, laboratory, and instrumentation applications.
This amplifier offers a gain bandwidth product (GBP) of 1.6 GHz and a high slew rate of 700 V/μs, enabling accurate amplification of high-frequency signals with minimal distortion. The device operates with a supply voltage ranging from 8V to 12V and supports output currents up to 70 mA, making it versatile for driving various load types.
With an input offset voltage of ±2.6 mV and input offset current of ±2.5 nA, the OPA657UB ensures precise signal processing required in electrometer amplifiers, photo detector amplifiers, medical equipment, and high-accuracy data acquisition systems.
The chip is housed in a compact 8-pin SOIC surface mount package with dimensions of approximately 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height. It meets the RoHS environmental standards, confirming its compliance with hazardous substance restrictions.
The device functions reliably over a wide temperature range of -40°C to 85°C but is not designed for automotive standards compatibility. The JFET input stage notably reduces bias current and improves precision. Typical applications include precision instrumentation, laboratory amplifiers, medical device signal processing, and high-accuracy sensor interfaces.
Its fast response characteristics enable it to be used in high-frequency analog circuit designs and communications equipment.
This operational amplifier is ideal for engineers and designers requiring a high-performance solution for signal amplification in industrial, laboratory, and scientific instrumentation contexts.
Discover more quality Operational Amplifiers and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA657UB features a gain bandwidth product of 1.6 GHz, enabling accurate amplification of high-frequency signals.
This model supports a supply voltage range from 8V to 12V.
The maximum output current capability of this operational amplifier is 70 mA.
It has a low input offset voltage of ±2.6 mV, which is suitable for precision applications.
The operational temperature range for this unit spans from -40°C to 85°C.
This operational amplifier has a high slew rate of 700 V/μs, allowing for fast signal response.
The dimensions of this model are approximately 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
It is housed in an 8-pin SOIC surface mount package.
The input bias current for this operational amplifier is extremely low at 5 nA due to its Difet technology.
Yes, the OPA657UB meets RoHS environmental standards, confirming its compliance with hazardous substance restrictions.
This operational amplifier is suitable for precision instrumentation, laboratory amplifiers, medical device signal processing, and high-accuracy sensor interfaces.
The OPA657UB utilizes JFET input technology (Difet) to dramatically reduce input bias current by eliminating isolation-junction leakage.
