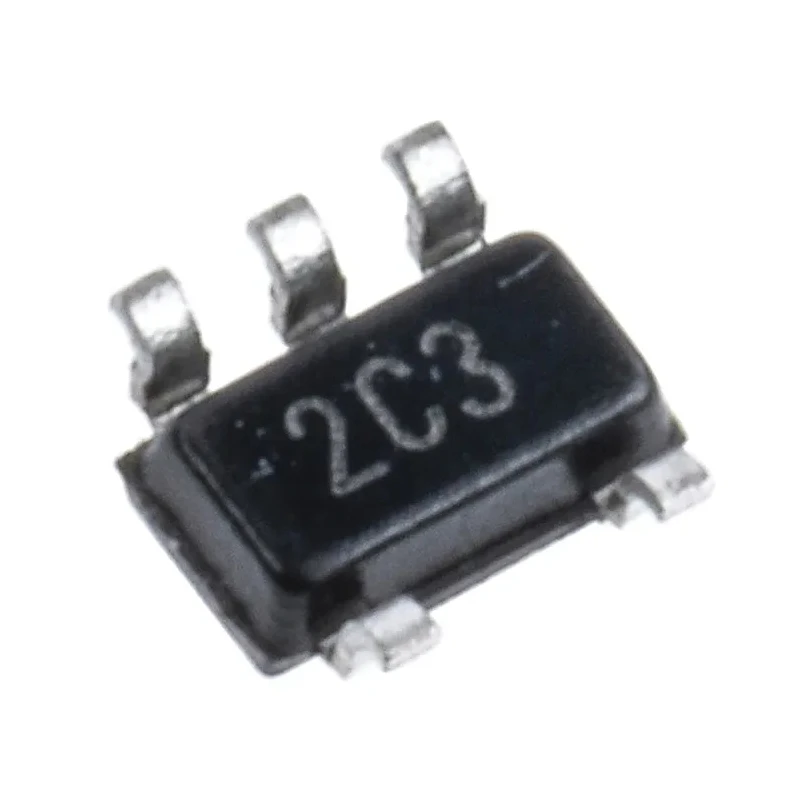

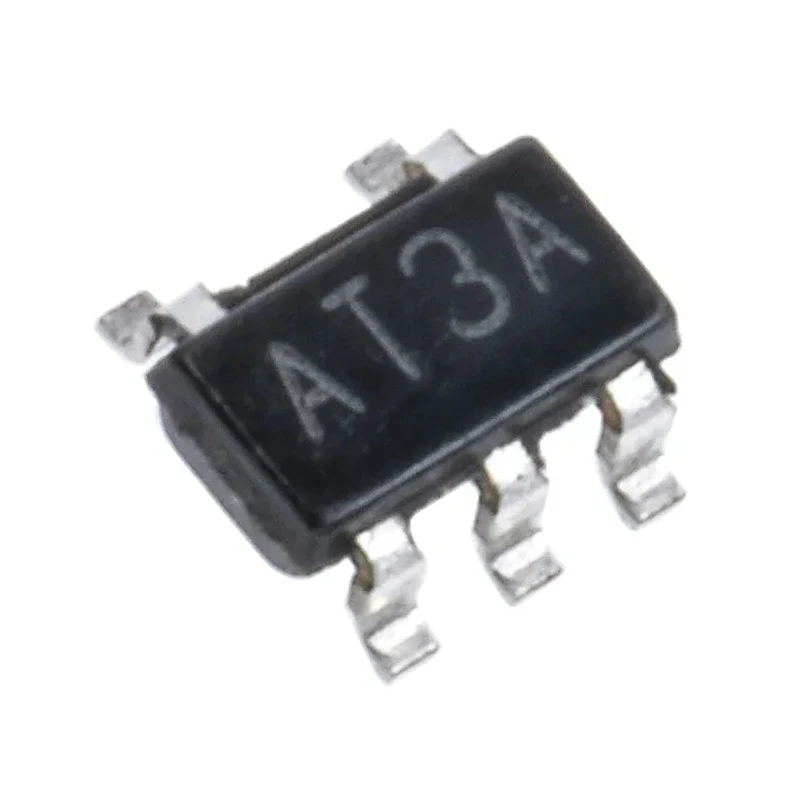

Texas Instruments Operational Amplifier 17 MHz, 1 Channel, 5-Pin SOT-23 Package, 5-5.5V Supply LMV796MF/NOPB

Texas Instruments LMV796MF/NOPB is a low voltage CMOS operational amplifier from the LMV/TLV series, delivering a gain bandwidth product (GBP) of 17 MHz in a miniature 5-pin SOT-23 surface mount package. It operates efficiently within a supply voltage range of 5 V to 5.5 V, offering excellent performance for sensitive analog applications.

This operational amplifier features a single channel design with a low input bias current of 1 pA and minimal input offset current of 10 fA, which ensures high accuracy and stability in signal processing. Its input offset voltage is rated at 1.35 mV, facilitating precise analog signal amplification.

The device supports a high slew rate of 11.5 V/μs, enabling it to quickly respond to rapid input signal changes, ideal for dynamic electronic circuits. With an output current capacity of 47 mA, it is capable of driving moderate load requirements effectively.

Dimensionally compact, the amplifier measures just 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height, making it suitable for space-constrained PCB layouts. Operating temperature range from -40°C up to 125°C makes this component highly reliable for automotive and industrial applications. Additionally, it complies with AEC-Q100 automotive standards and RoHS environmental directives.

Single channel operational amplifier optimized for low voltage CMOS applications. Operates from 5 V to 5.5 V supply voltage range. Low input bias current of 1 pA and input offset current of 10 fA. High slew rate of 11.5 V/μs facilitating rapid signal changes.

Wide operating temperature range from -40°C to 125°C supports automotive use. Compact dimensions suitable for dense PCB designs. Designed to meet AEC-Q100 automotive quality standards. Output current of 47 mA for driving various loads.

RoHS compliant ensuring environmental safety compliance. Ideal for industrial, automotive, and consumer electronic circuits.

This Operational Amplifier is widely used in industrial machines, automotive electronics, laboratory instrumentation, and other electronics requiring precise, low noise analog amplification. Its compact form factor and environmentally compliant construction make it a reliable choice for diverse applications.
