Mean Well DIMENSION Switched Mode DIN Rail Power Supply 120V AC Input 52V DC Output 5A 240W CS10.481

Free Delivery in India | Lowest Global Shipping Charges

Mean Well DIMENSION Switched Mode DIN Rail Power Supply 120V AC Input 52V DC Output 5A 240W CS10.481

Name: Mean Well DIMENSION Switched Mode DIN Rail Power Supply 120V AC Input 52V DC Output 5A 240W CS10.481
Brand: MEAN WELL
SKU: 343320
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	Mean Well
Power	240W
Height	124mm
Model	CS10.481
Depth	117mm
IP Rating	IP20
Width	60mm
Series	DIMENSION
Output Current	5A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	120V ac
Electrical Phase	1
Maximum Output Voltage	52V dc
Minimum Input Voltage	100V ac

Key Features

Slim form factor measuring 124mm height, 60mm width, and 117mm depth.
Wide input voltage range from 100V to 120V AC for flexible installation.
High efficiency up to 91.6% for reduced energy consumption and heat dissipation.
Operating temperature range from -25°C to 70°C ensures reliability in harsh environments.
Power de-rating between 60°C and 70°C to maintain safe operation.
IP20 protection rating suitable for indoor industrial applications.
Auto-select input voltage supports 100V to 240V AC for global compatibility.
Low electromagnetic emission and high surge immunity enhance device longevity.

Product Description

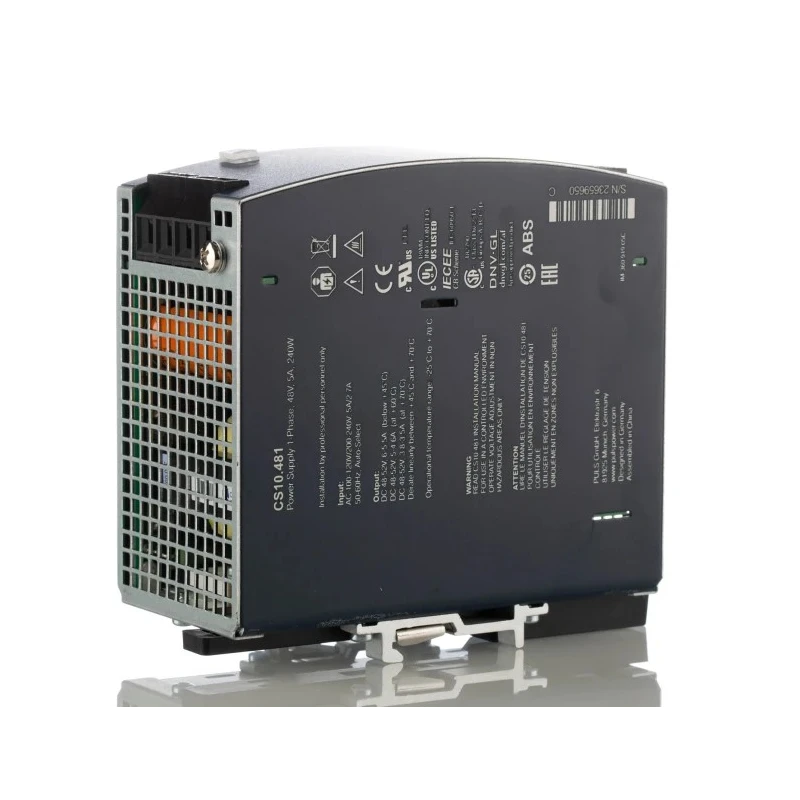

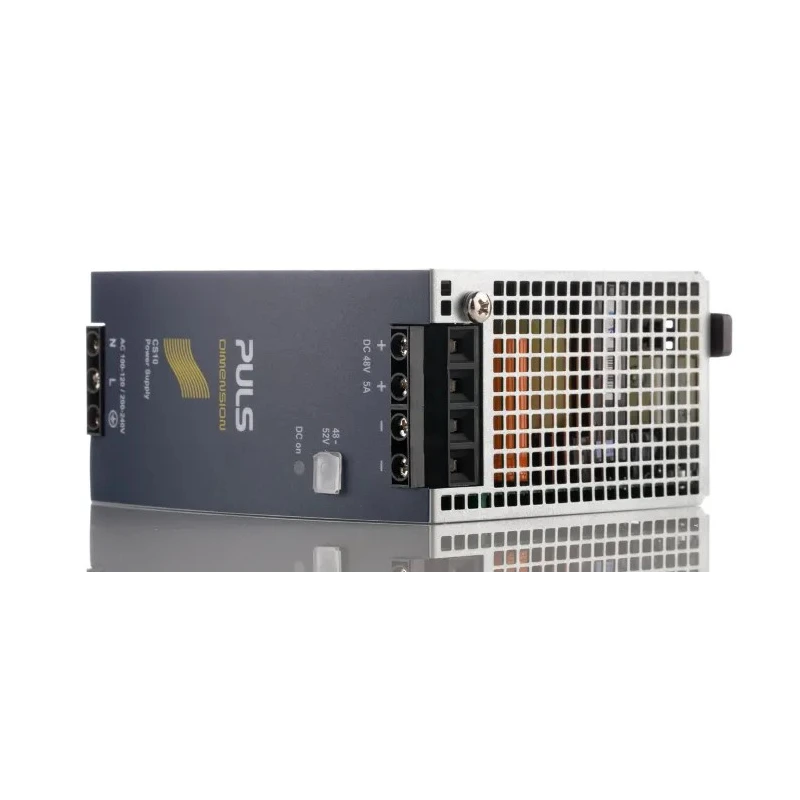

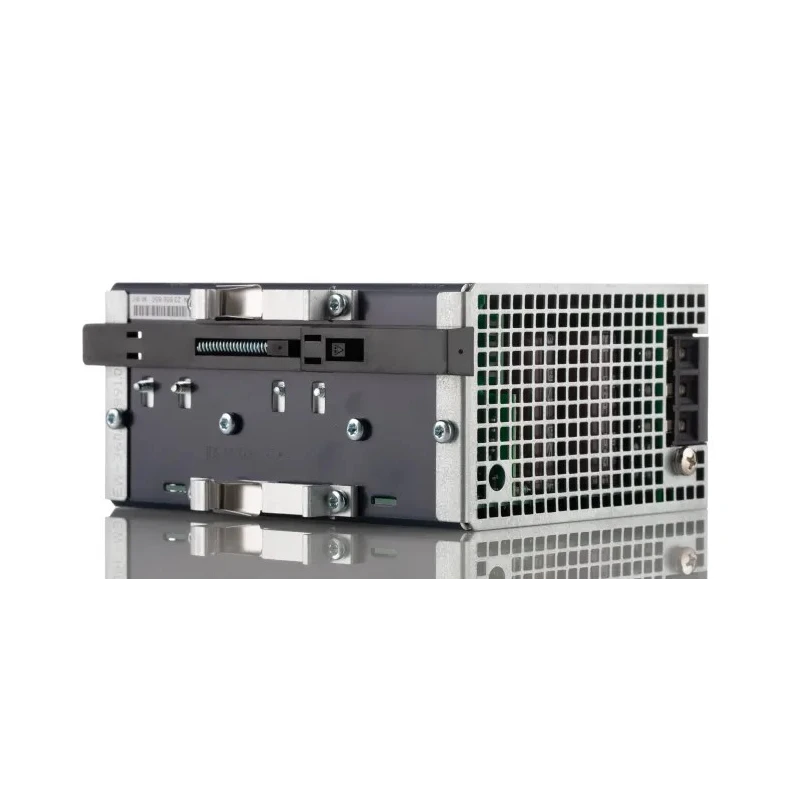

PULS CS10.481 DIMENSION series switched mode DIN rail power supply offers reliable 240W power output with a regulated 52V DC voltage at 5A current. Its compact size and slim design, with dimensions 124mm (H) x 60mm (W) x 117mm (D), make it ideal for space-constrained industrial applications. This single-phase power supply supports a wide AC input range from 100V to 120V and up to 240V, with auto-select functionality for versatile installation.

Its high efficiency of 91.6% helps reduce power loss and heat generation, extending component lifespan. The unit operates efficiently over a wide temperature range from -25°C to 70°C, with power de-rating above 60°C to ensure safe operation. An IP20 ingress protection rating provides basic protection suitable for industrial indoor environments.

The PULS CS10.481 benefits include minimal inrush current, low ripple factor and noise of 100mVpp, and excellent partial load efficiency. It is engineered with robust surge immunity and low electromagnetic emissions, meeting industrial standards for quality and safety. The electrolytic capacitor has a life expectancy of 50,000 hours, ensuring dependable long-term performance.

This DIN rail power supply is suitable for use in industrial control systems, office automation, communication devices, instrumentation, and other industrial environments requiring stable, efficient DC power. Its slim footprint and wide input flexibility simplify integration into existing control panels and systems.

Key applications include industrial automation control, communication equipment, and instrumentation systems. It is manufactured with high-quality components under strict quality control in China.

Slim and compact design minimizes panel space. Wide input voltage range with auto-select feature. High efficiency and low heat dissipation. Wide operating temperature range and power de-rating features. IP20 certified for indoor industrial use.

Long-life electrolytic capacitor rated for 50,000 hours. Low electromagnetic noise and excellent surge immunity. Minimal inrush current to protect circuitry. Designed for industrial control, instrumentation, and communication.

Reliable and consistent 240W power output at 52V DC, 5A current. Explore more in the PULS DIMENSION series and other DIN Rail Power Supplies at EnvMart for industrial and commercial power solutions.
