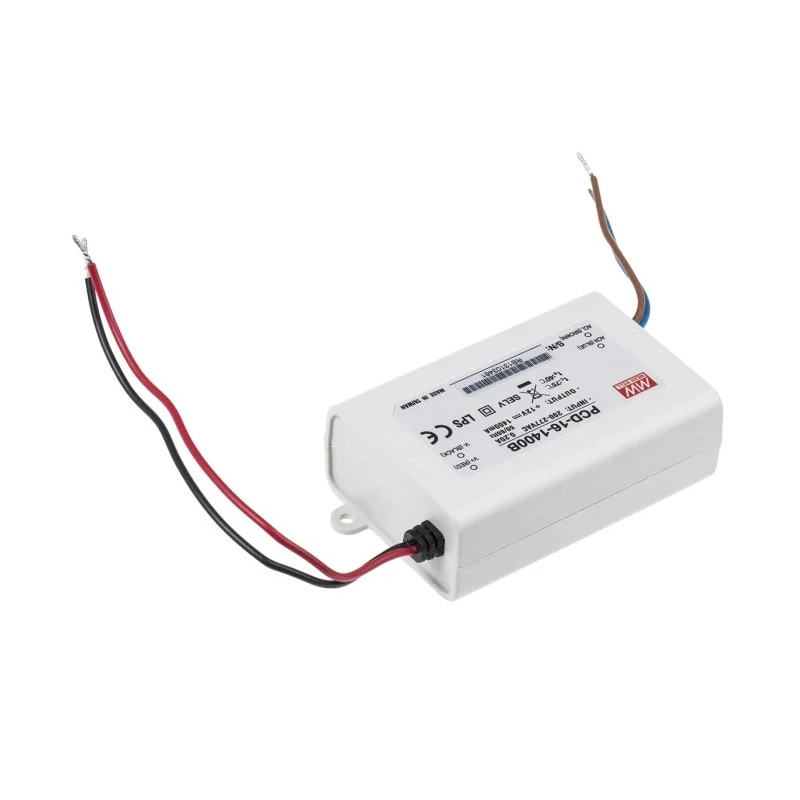

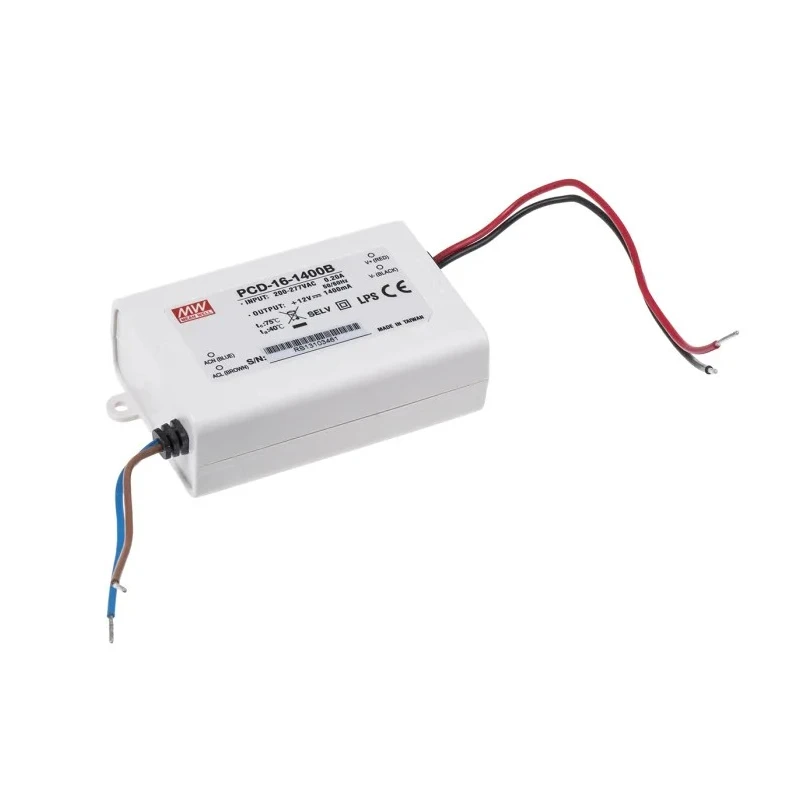

MEAN WELL IP42 5 Output LED Driver, 12V/8V Output, 16.8W, 1.4A Constant Current LED Driver
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Model | IP42 |
| IP Rating | IP42 |
| Mount Type | Screw |
| Series | PCD-16 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 16.8W |
| Input Voltage | 180, 295V ac |
| Output Voltage | 12, 8V |
| Power Dissipation | 16.8W |
| Standards/Approvals | CE, CSA, ENEC, SELV, TUV, UL |
| Primary Type | AC-AC |
| Driver Current | 1.4A |
| LED Voltage | 180, 295V ac |
| 16W versions | Derate output above 50°C operating temperature |
| 25W versions | Derate output above 40°C operating temperature |
Key Features
- Features AC input voltage range of 180 to 295V for versatile power sources.
- Supports 5 output channels in an enclosed IP42 rated plastic case.
- Equipped with built-in active Power Factor Correction (PFC) for energy efficiency.
- Compatible with both leading and trailing edge dimmers for AC phase-cut dimming.
- Ensures safety with short circuit, overload, and over temperature protection.
- Complies with multiple safety and EMC standards including CE, CSA, ENEC, SELV, TUV, and UL.
- Designed for free air convection cooling without the need for a fan.
- Suitable for industrial and commercial indoor LED lighting installations.
Product Description
MEAN WELL PCD-16-1400B IP42 5 Output LED Driver is a compact and reliable constant current LED driver delivering 16.8W of power with 12V and 8V output voltages and operating at 1.4 Amps. This LED driver is powered by an AC input voltage range of 180 to 295V and features five outputs in an enclosed design with an IP42 rating, offering protection against solid objects larger than 1mm and limited protection from water.
The device incorporates AC phase-cut dimming capabilities that support both leading edge and trailing edge dimmers, providing flexible dimming control. It includes a built-in active power factor correction (PFC) function that enhances power quality and reduces energy losses.
This model is housed within a fully isolated plastic case designed for free air convection cooling, eliminating the need for additional cooling fans. Safety features such as short circuit, overload, and over temperature protections ensure reliable operation in various indoor lighting environments.
Compliant with international standards including CE, CSA, ENEC, SELV, TUV, and UL, the LED driver meets strict electrical safety and electromagnetic compatibility requirements, making it suitable for industrial and commercial indoor LED lighting applications.
AC input voltage range: 180 to 295V. Output voltage: 12V and 8V with 1.4A constant current. 5 output channels in an enclosed IP42 rated enclosure. Supports AC phase-cut dimming with leading and trailing edge dimmers. Built-in active power factor correction (PFC) function.
Protection against short circuit, overload, and over temperature conditions. Meets CE, CSA, ENEC, SELV, TUV, and UL safety and EMC standards. Free air convection cooling, fully isolated plastic case.
This LED driver is ideal for use in indoor LED lighting systems in industrial, commercial, and architectural lighting projects. Its robust design and multiple outputs make it highly adaptable for various LED configurations requiring consistent constant current power delivery.
Explore more industrial-grade LED Drivers and power supply solutions in the Electronics Components section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 180 to 295V AC.
It features five output channels.
This LED driver provides output voltages of 12V and 8V.
The maximum output power is 16.8W.
It includes short circuit, overload, and over temperature protection for enhanced safety.
The operating mode is constant current.
This LED driver has an IP42 rating, providing protection against solid objects larger than 1mm and limited water exposure.
The country of origin is China.
It is designed for free air convection cooling, eliminating the need for additional cooling fans.
It complies with multiple safety and EMC standards including CE, CSA, ENEC, SELV, TUV, and UL.
It is designed for screw mounting.
