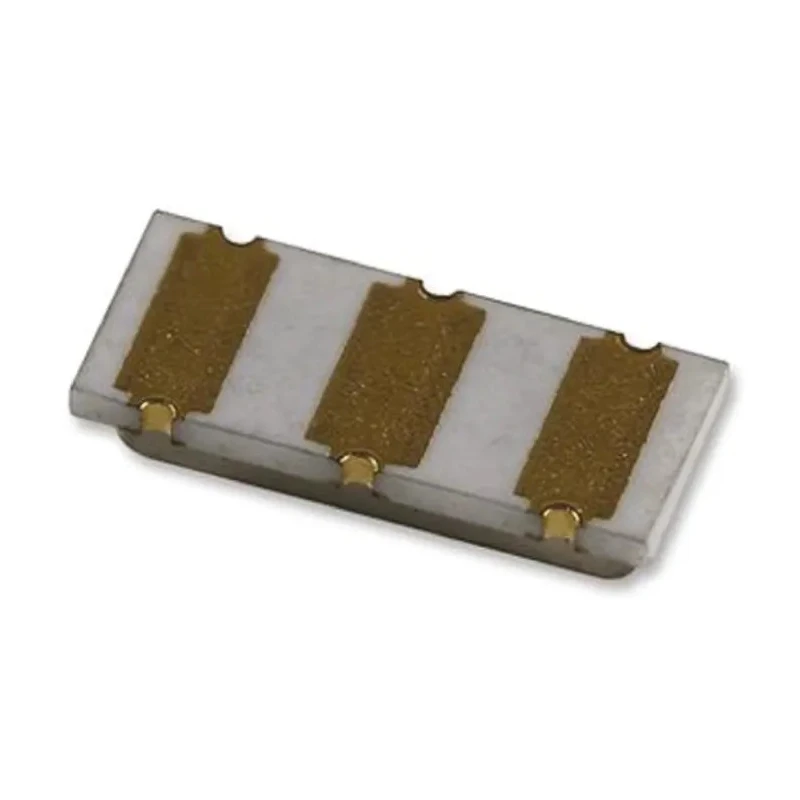

Murata Ceramic Resonator 4 MHz Shear 39 pF 3-Pin Surface Mount 1.15 mm x 2 mm x 4.5 mm CSTCR4M00G55Z-R0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 1.15mm |
| Length | 4.5mm |
| Model | CSTCR4M00G55Z-R0 |
| Packaging | Bulk |
| Width | 2mm |
| Mount Type | Surface |
| Series | CSTLS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 3 |
| Load Capacitance | 39pF |
| Resonance Frequency | 4MHz |
| Resonance Resistance | 60Ω |
| Mode of Oscillation | Shear |
Key Features
- Operates at a resonance frequency of 4 MHz with ±0.5% tolerance.
- Features shear mode oscillation for stable and precise frequency control.
- Built-in load capacitance of 39 pF eliminates external capacitors.
- Surface mount design with dimensions 1.15 mm height, 2 mm width, and 4.5 mm length.
- Suitable for a wide operating temperature range from -40°C to 125°C.
- RoHS and REACH compliant, ensuring environmental safety.
- Low resonance resistance of 60 Ω for efficient oscillation.
- Integral load capacitors reduce circuit complexity and space.
Product Description
Murata CSTCR4M00G55Z-R0 ceramic resonator is part of the CERALOCK® range, featuring high stability piezoelectric ceramics ideal for industrial and electronics manufacturing applications. This 4 MHz frequency shear mode ceramic resonator includes a built-in 39 pF load capacitance, eliminating the need for external components and enabling compact PCB designs.
The device is surface mount type with a low profile of 1.15 mm height and compact footprint measuring 2 mm in width and 4.5 mm in length. It operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions encountered in industrial electronics.
With a resonance resistance of 60 Ω and frequency tolerance of ±0.5%, the CSTCR4M00G55Z-R0 offers precise and stable oscillation critical for timing and control in electronic circuits. This resonator is RoHS and REACH compliant, ensuring it meets global environmental standards.
Applications include replacement of crystal oscillators in USB controllers, audio devices, musical instruments, and other electronically controlled systems requiring precise frequency generation. Its integrated load capacitance reduces component count and PCB space, providing cost-effective and higher density mounting options.
Operates at 4 MHz resonance frequency with ±0.5% tolerance. Surface mount 3-pin package measuring 1.15 mm by 2 mm by 4.5 mm. Shear mode oscillation ensures stable performance. Load capacitance of 39 pF is built into the device.
Wide operating temperature range from -40°C to 125°C. RoHS and REACH compliant for environmental safety. Resonance resistance of 60 Ω supporting efficient oscillation. Ideal for USB controllers, audio equipment, and other electronic instruments.
CERALOCK® series ceramic resonator with high stability piezoelectric ceramic. Explore more industrial-grade Ceramic Resonators and electronic components in the Electronics & Electricals category at EnvMart for your precision oscillation and timing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 4 MHz with a tolerance of ±0.5%.
This unit has a height of 1.15 mm, a width of 2 mm, and a length of 4.5 mm.
It features a built-in load capacitance of 39 pF, eliminating the need for external capacitors.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
It utilizes shear mode oscillation, which ensures stable and precise frequency control.
The resonance resistance is 60 Ω, supporting efficient oscillation.
Yes, it is RoHS and REACH compliant, ensuring it meets global environmental safety standards.
This model has a pin count of 3, designed for surface mounting.
The resonator is available in bulk packaging.
It is part of the CSTLS series of ceramic resonators.
It is suitable for applications such as USB controllers, audio devices, and musical instruments requiring precise frequency generation.
The integral load capacitance reduces circuit complexity and PCB space, allowing for more compact designs.
