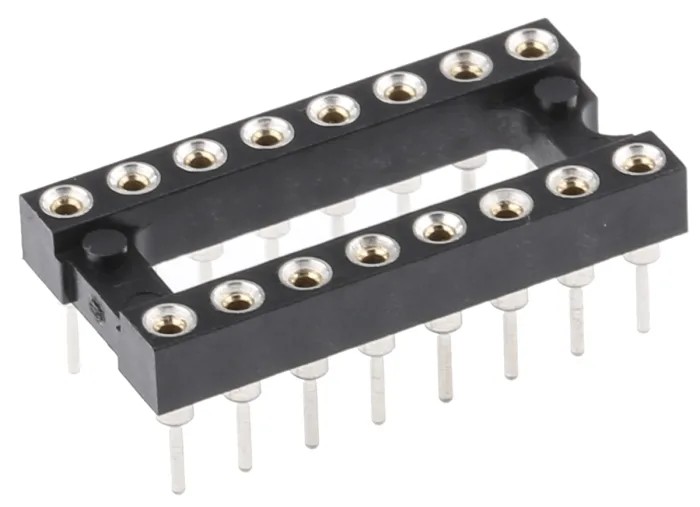

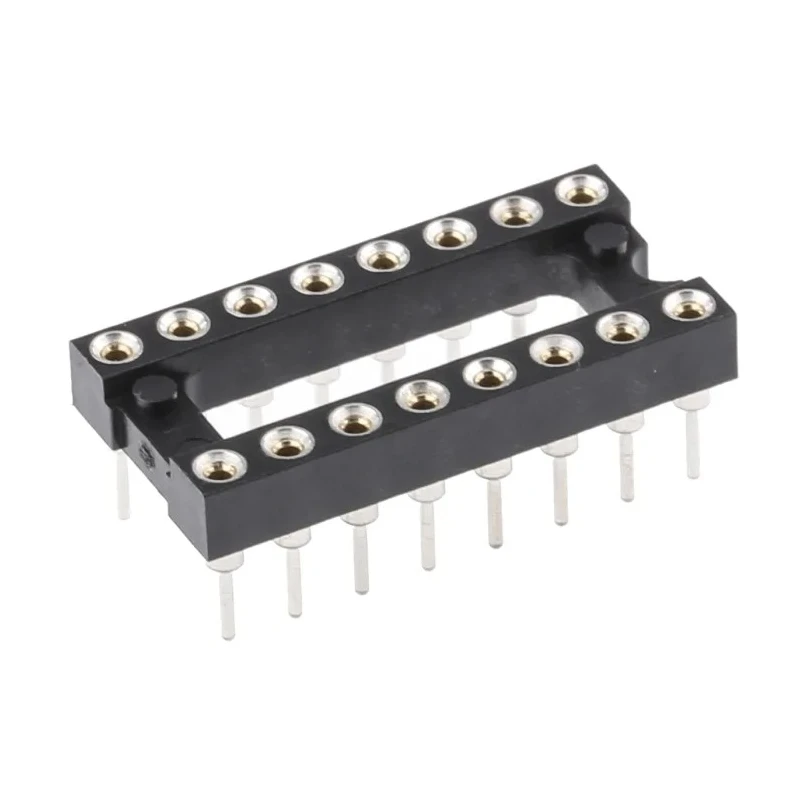

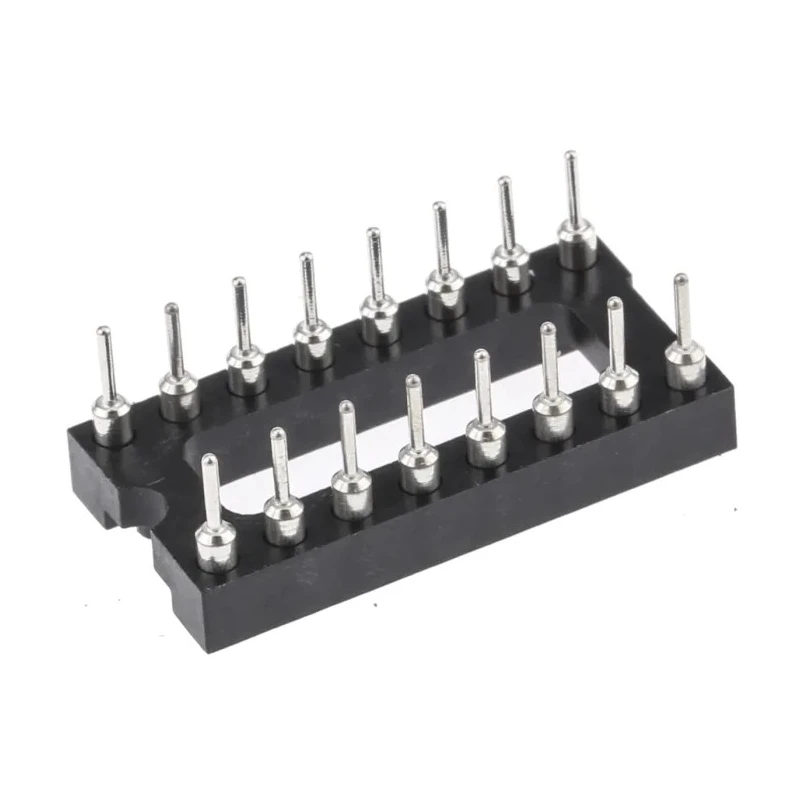

E-TEC 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket, 3A POS-316-S001-95 X25

E-TEC POS-316-S001-95 X25 Vertical 16 Way Through Hole DIL Socket with 2.54 mm pitch and 3A current rating provides reliable and precision connection in electronic components and PCB assemblies.

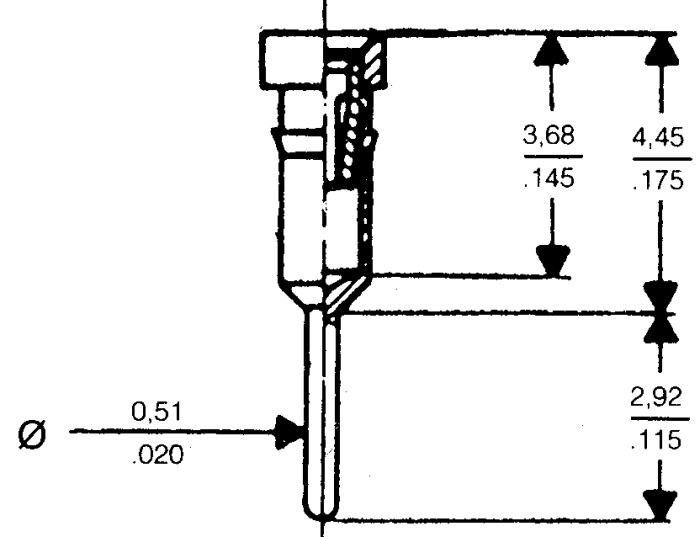

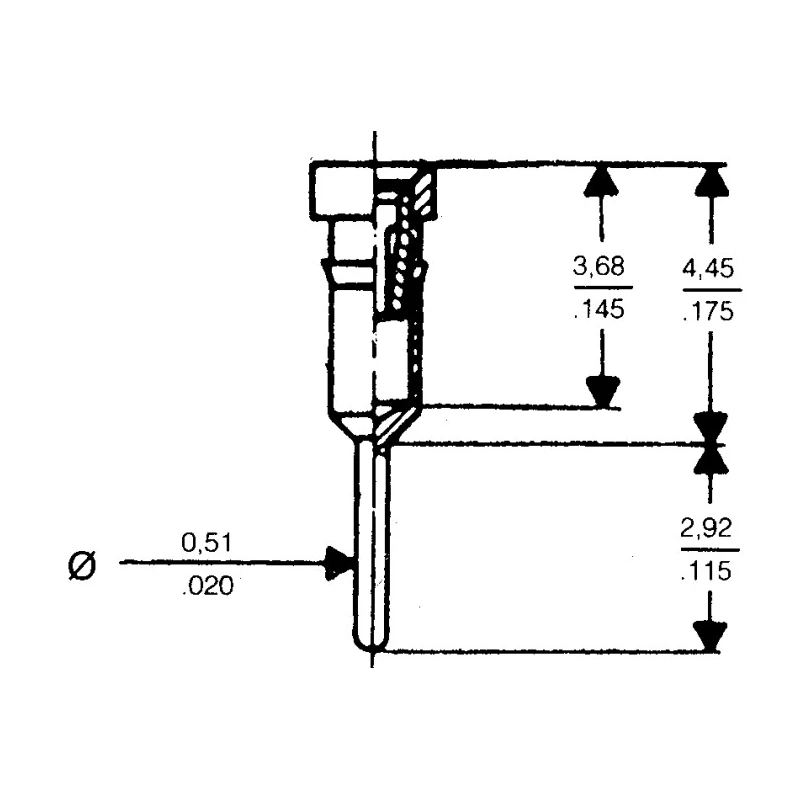

This socket features 16 contact points made from beryllium copper alloy with gold plating over 'tulip' grip contacts to ensure excellent electrical performance and durability. The pins are brass with tin plating for robust solderability. Its open frame construction maximizes heat dissipation, improving reliability during continuous operation.

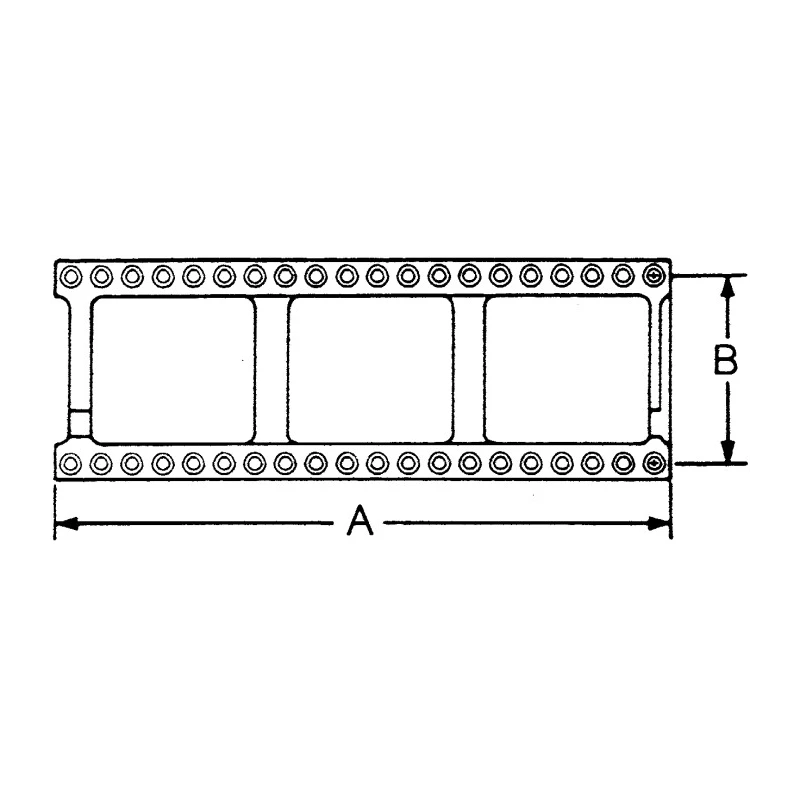

The housing is constructed with polybutylene terephthalate which offers high-temperature resistance up to 125°C and mechanical stability. Designed for through hole mounting, it fits vertically on PCBs with dimensions 20.3 mm length, 2.8 mm depth, and 7.62 mm row width at a pitch of 2.54 mm, compliant with standard DIL socket form factors.

With a maximum operating voltage of 500V and current capacity of 3 Amps, this E-TEC socket is widely suitable for industrial electronics manufacturing, testing equipment, telecommunications, and other commercial applications requiring durable and precise connector solutions.

Features 16 precision gold plated 'tulip' grip contacts ensuring reliable connectivity. Supports up to 3 Amp current with a 2.54 mm pitch and 7.62 mm row width. Constructed with beryllium copper alloy contacts and brass pins for durability.

Open frame design enhances heat dissipation during operation. Solder termination with vertical orientation fits perfectly onto PCBs. Supports operating voltage up to 500V and temperature range from -65°C to +125°C. Housing made from robust polybutylene terephthalate material for insulation and mechanical strength.

Designed for through hole mounting with 20.3 mm length and 2.8 mm depth for compact integration. Ensures long contact life with 100 operation cycles and high insulation resistance. Manufactured in Switzerland to high quality standards.

This precision DIL Socket is ideal for use in industrial, electronics manufacturing, laboratory testing, telecommunications, and other precision electronic assembly contexts. It supports high reliability and performance in critical connector applications.
