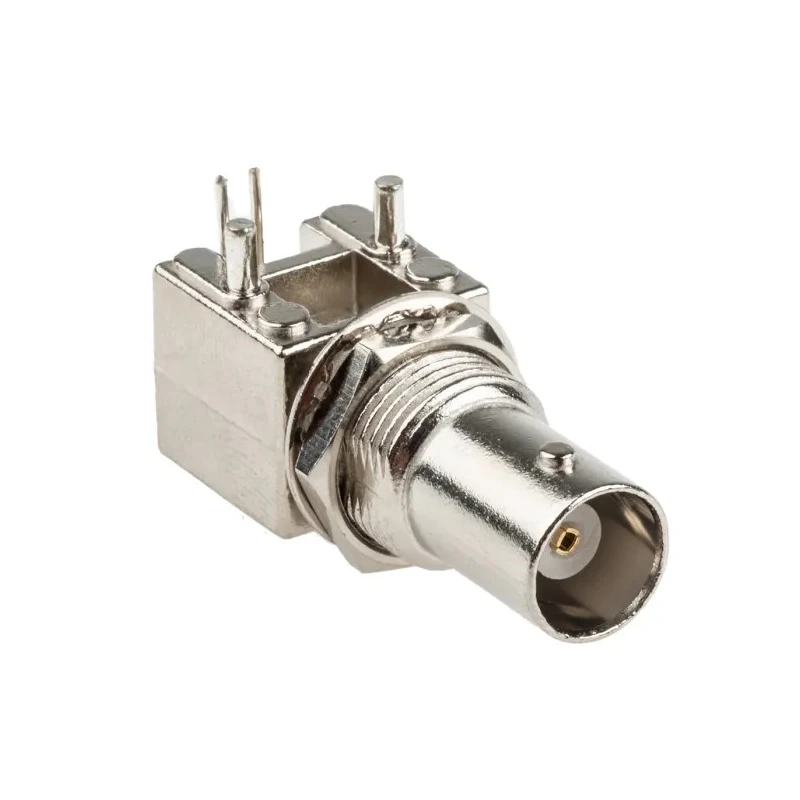

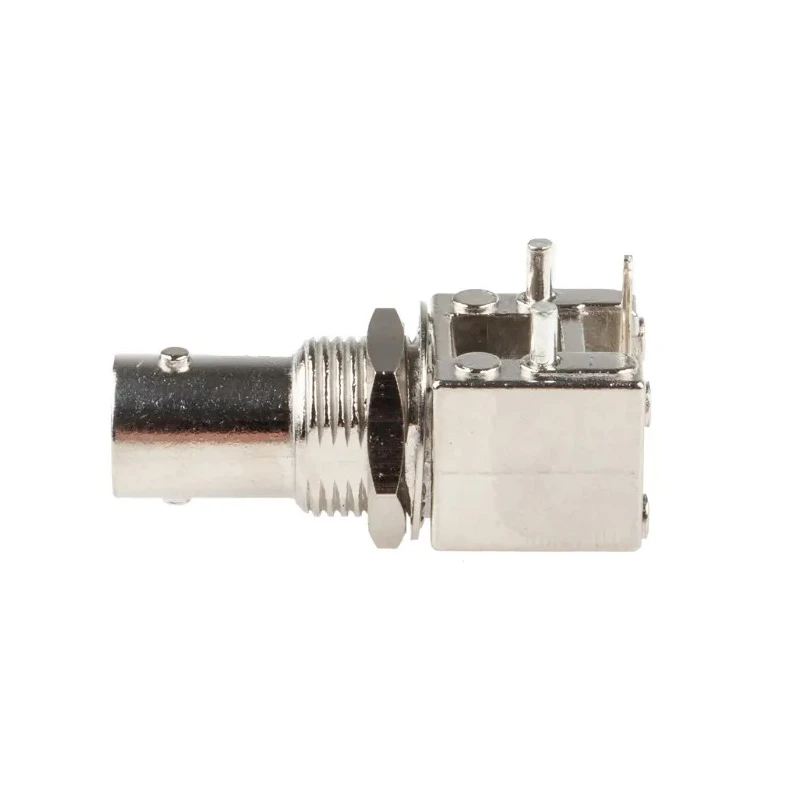

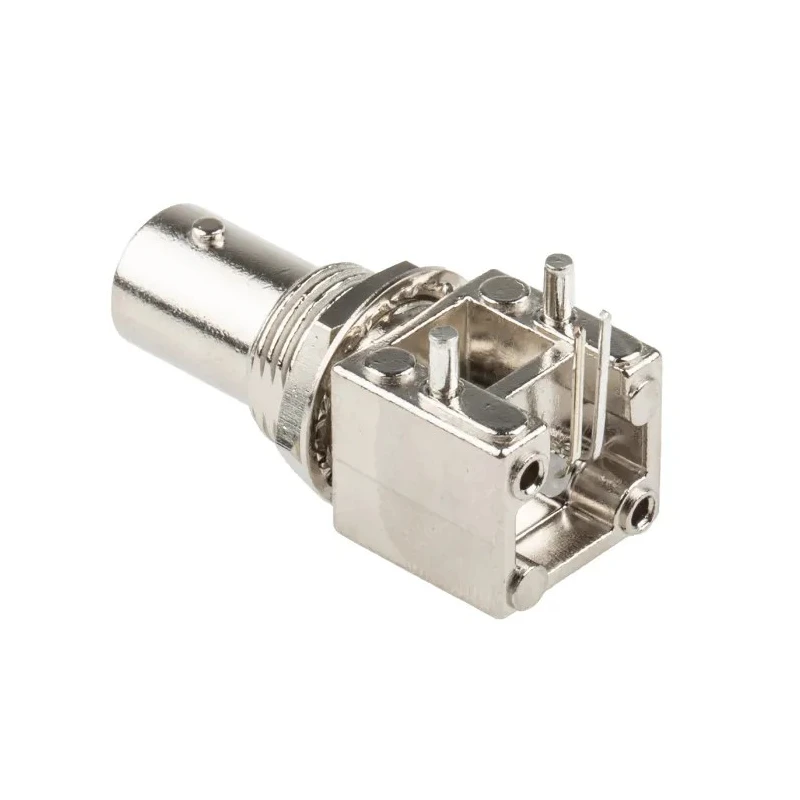

RS PRO Coaxial Connector PCB Female BNC 50 Ω Right Angle Body Through Hole 546-5165
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-5165 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| Low profile BNC shield r/a PCB skt,50ohmBrand | RS PRO |
Key Features
- Shielded 90° BNC PCB connector provides robust signal integrity.
- Gold-plated female contact ensures excellent electrical conductivity.
- Mount type is through hole for secure PCB attachment.
- Nickel-plated body enhances durability and corrosion resistance.
- Operates at frequencies up to 1 GHz for versatile RF applications.
- Temperature range from -40°C to 60°C suitable for varied environments.
- Includes PTFE insulation for high reliability and signal isolation.
- Bulkhead design allows mounting to panels and chassis.
Product Description
RS PRO 546-5165 is a high-quality Coaxial Connector featuring a PCB mount female BNC design with a right angle body and 50 Ω impedance, suitable for a wide range of RF signal applications. It supports frequencies up to 1 GHz and offers reliable performance in industrial, telecommunications, and test equipment environments.
The robust nickel-plated metal body provides excellent shielding, while the gold-plated phosphor bronze contact ensures maximum conductivity and durability. This connector uses a reliable bayonet coupling system typical of BNC connectors, ensuring secure and quick connections.
Designed for mounting via through hole on PCBs, the connector features a bulkhead design enabling easy panel or chassis installation. The PTFE insulation material enhances the connector's reliability by providing superior electrical isolation and thermal stability.
This 546-5165 model operates within a temperature range of -40°C to 60°C, making it suitable for various environmental conditions. Its normal polarity and standard size facilitate compatibility with common coaxial cable assemblies.
Applications include antenna connections, cable modems, telecom systems, medical equipment, satellite communications (Satcom), and CCTV installations. This connector is ideal for engineers and technicians requiring durable and dependable RF connectors for high-frequency signal transmission.
Shielded 90° BNC PCB connector provides robust signal integrity. Gold-plated female contact ensures excellent electrical conductivity. Mount type is through hole for secure PCB attachment. Nickel-plated body enhances durability and corrosion resistance.
Operates at frequencies up to 1 GHz for versatile RF applications. Temperature range from -40°C to 60°C suitable for varied environments. Includes PTFE insulation for high reliability and signal isolation. Bulkhead design allows mounting to panels and chassis.
Phosphor bronze contact material offers resilience and longevity.
RS PRO products are rigorously tested to meet demanding industry standards, ensuring consistent performance and quality. Browse our comprehensive catalog for more RF connectors and related electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 1 GHz, making it suitable for various RF applications.
The impedance of this connector is 50 Ω, which is standard for many RF applications.
It operates within a temperature range of -40°C to 60°C, allowing it to function in varied environmental conditions.
This connector features a through hole mount type, designed for secure attachment to PCBs.
The body is nickel-plated for durability, while the contact is made of gold-plated phosphor bronze, ensuring excellent electrical conductivity.
It includes PTFE insulation, which provides high reliability and effective electrical isolation.
This model features a right angle orientation, which is useful for space-constrained applications.
It is suitable for applications including antenna connections, cable modems, telecom systems, medical equipment, satellite communications, and CCTV installations.
The contact gender of this connector is female, which is standard for BNC connectors.
This connector features a bulkhead design, allowing for easy mounting to panels and chassis.
The country of origin for this connector is Taiwan.
The size of this connector is classified as standard, which facilitates compatibility with common coaxial cable assemblies.
