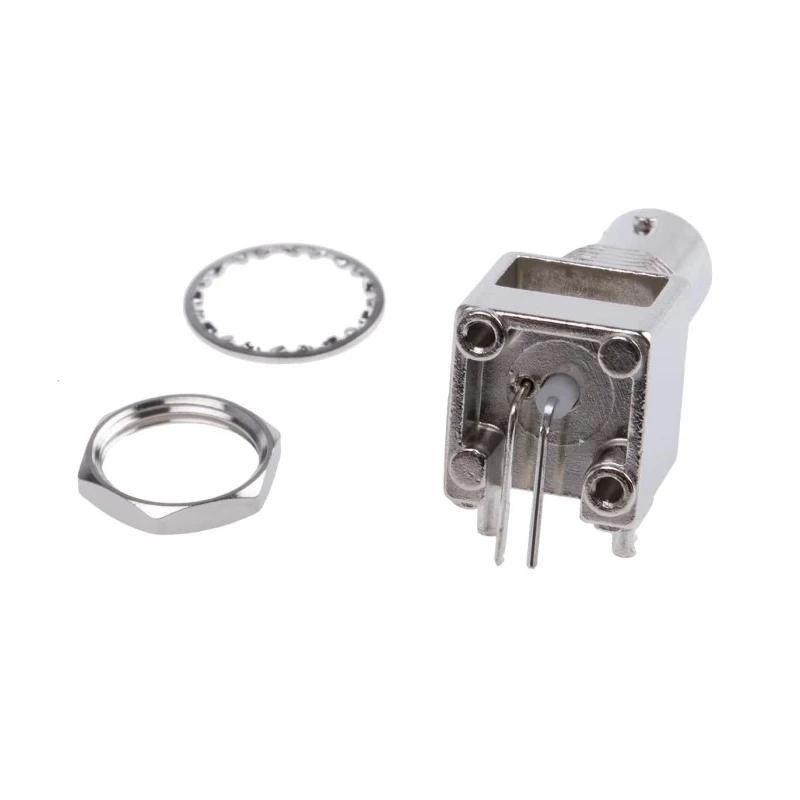

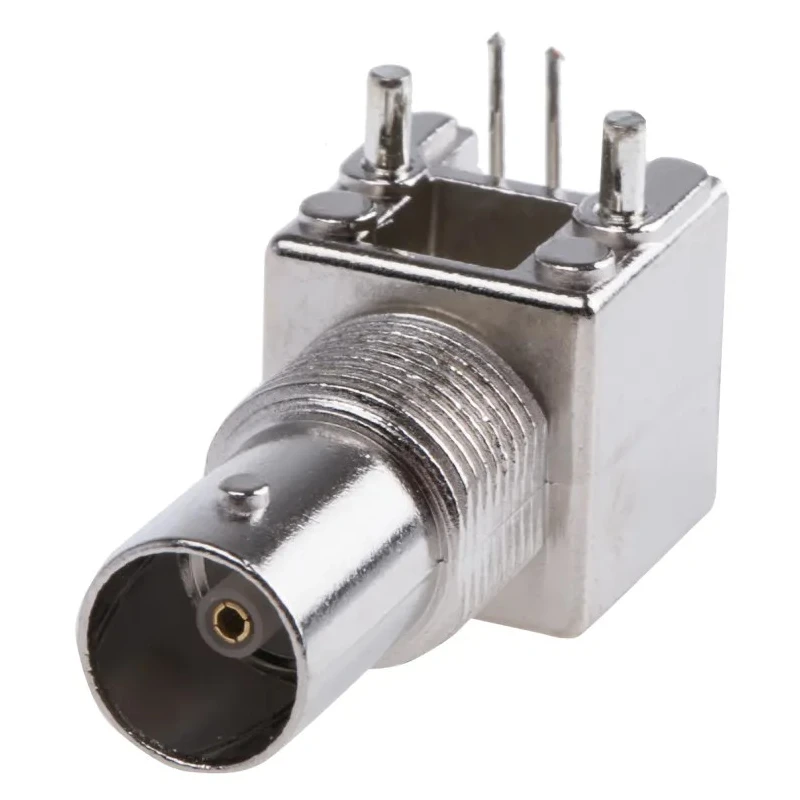

RS PRO Coaxial Connector PCB Female BNC 75 Ω Right Angle Body Through Hole 546-5143
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-5143 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| NiPt BNC shielded 90deg PCB socket,75ohmBrand | RS PRO |
Key Features
- Coaxial connector type is BNC with a standard size for consistent compatibility.
- Impedance is fixed at 75 Ω ensuring optimal signal integrity for specific applications.
- Features a right angle orientation with a nickel plated body for durability.
- Gold plated phosphor bronze contact materials provide excellent conductivity and corrosion resistance.
- Mount type is through hole suited for secure PCB mounting.
- Operates at frequencies up to 1 GHz for various video and test equipment uses.
- Temperature range supports from -40°C to 60°C for reliable operation under different conditions.
- Includes a bayonet coupling mechanism offering secure and quick connect/disconnect functionality.
Product Description
RS PRO 546-5143 is a 75 Ω Coaxial Connector PCB Female BNC Right Angle Body Through Hole designed to provide reliable RF connections for electronic components requiring PCB mounting.
This connector features a nickel-plated metal housing body ensuring durability and corrosion resistance in industrial and laboratory environments. The gold-plated phosphor bronze contacts enhance connectivity and maintain signal quality for frequencies up to 1 GHz.
The right angle orientation enables compact PCB layouts, making it ideal for space-constrained applications in electronics manufacturing and testing setups.
With an operating temperature range from -40°C to 60°C, this connector is suitable for various electronic equipment including video signaling, telecommunications, and test equipment installations.
The through hole termination mounting provides secure attachment to circuit boards, while the bayonet coupling allows for quick and reliable mating. Coaxial connector type is BNC with a 75 Ω impedance for video and RF signal transmission.
Nickel plated body and gold plated contact ensure durability and signal integrity. Right angle body configuration for efficient PCB layout design. Through hole mount type for secure PCB attachment. Operates at frequencies up to 1 GHz suitable for commercial and industrial applications.
Temperature range from -40°C to 60°C ensures versatile operating conditions. Phosphor bronze contact material provides mechanical strength and reliable electrical contact. Bayonet coupling mechanism supports quick connection and disconnection.
This coaxial connector is manufactured in Taiwan, Province Of China, maintaining high quality standards for electronics manufacturing industries.
For buyers looking to source reliable RF connection components for electronics, telecommunications, and test equipment, the RS PRO 546-5143 provides a robust and dependable solution.
Explore more Coaxial Connectors and RF components in the Electronics & Electricals category at EnvMart.
