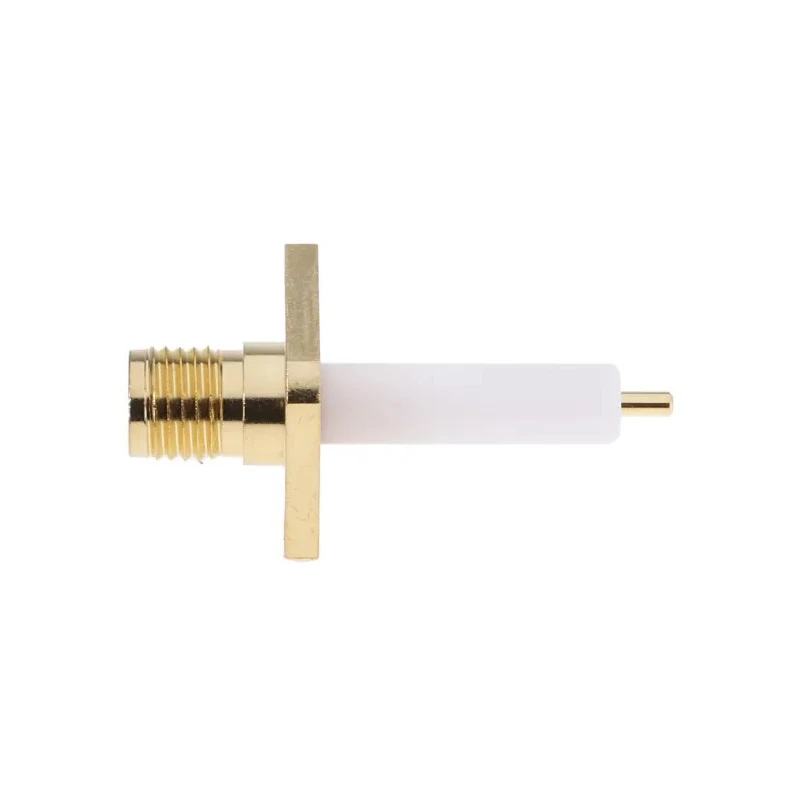

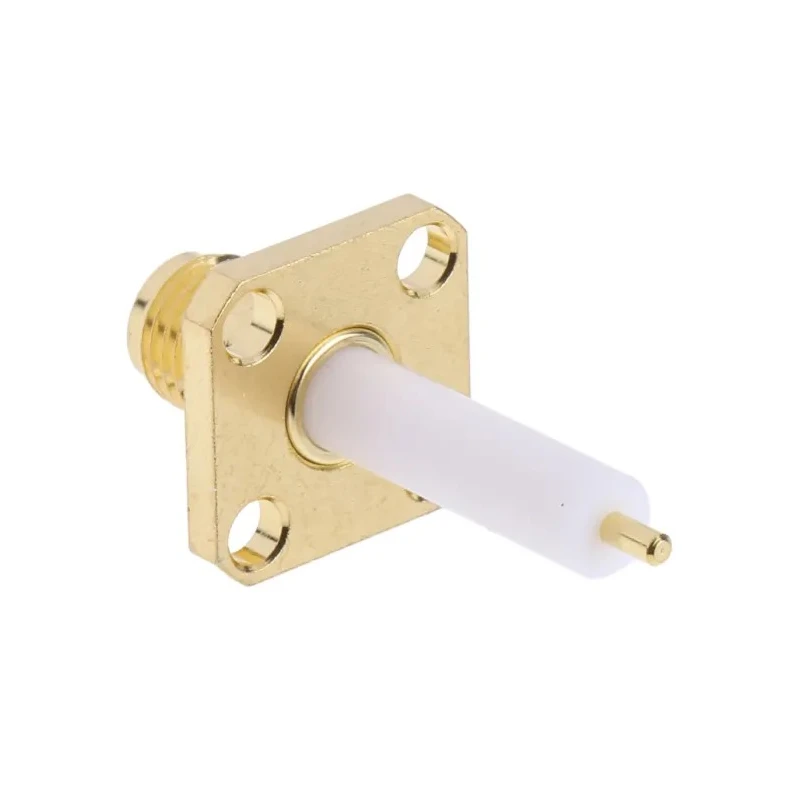

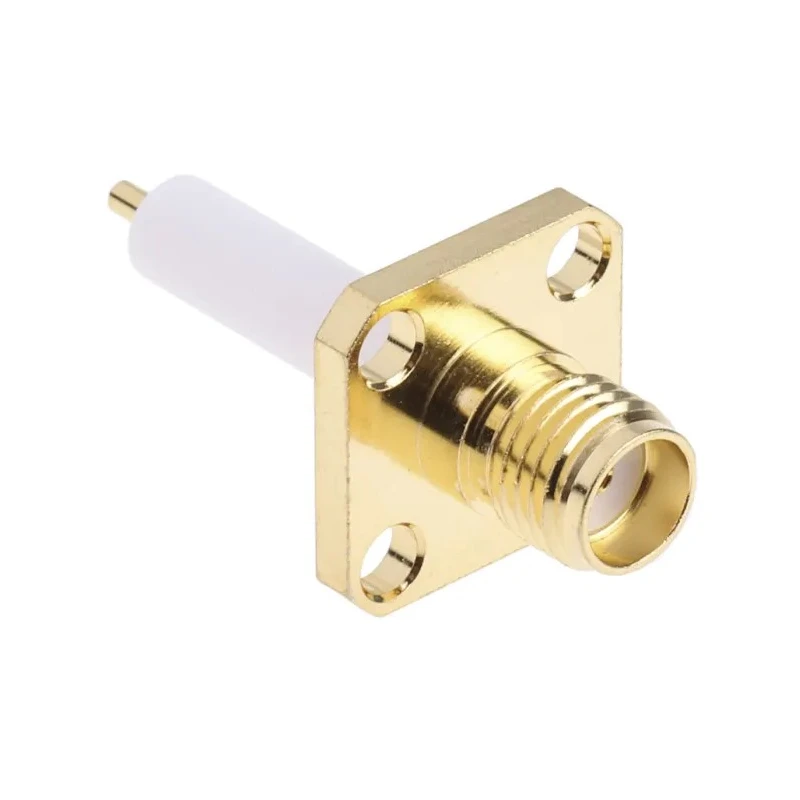

RS PRO Coaxial Connector Flange Female SMA, 50 Ω, Straight Body Solder 546-3181

RS PRO 546-3181 is a high-quality coaxial connector flange female SMA designed for industrial and electronic applications requiring precise RF connectivity. It offers a 50 Ω characteristic impedance and features a straight body with solder termination for secure cable attachments.

This subminiature connector is compatible with RG402/U and RG405/U cables, commonly used in microwave and RF transmission systems. The gold plating on both the connector body and contacts provides superior resistance to corrosion and wear from repeated insertions, enhancing the product's durability and lifespan.

Operating frequency capability up to 18GHz makes it appropriate for high-frequency signal transmission scenarios, including telecommunications, laboratory instruments, and wireless communication systems. Its temperature tolerance from -65°C to 165°C enables usage in diverse industrial, manufacturing, and testing environments.

The flange mount design allows for easy and stable attachment to panels or bulkheads, while the normal polarity and stub contact with captive contact form secure reliable connections, minimizing signal loss.

Constructed from beryllium copper contacts, the connector ensures excellent electrical performance and mechanical robustness vital for critical industrial and commercial applications.

This RS PRO coaxial connector is manufactured in Taiwan, Province of China, and is backed by RS PRO’s stringent quality control ensuring consistent performance and reliability in demanding conditions.

This is a flange mount SMA female connector designed for high-frequency applications up to 18GHz. The connector supports RG402/U and RG405/U cable types with subminiature size for compact installations. Gold plating on the body and contacts offers enhanced durability and resistance to wear.

The solder termination ensures a secure and high-quality connection suitable for microwave signals. It operates reliably over a temperature range from -65°C to 165°C, suitable for demanding environments. The connector features normal polarity with a captive stub contact design for stable signal transmission.

Manufactured with beryllium copper contact material for excellent conductivity and mechanical strength. This RS PRO series connector is made in Taiwan, Province of China, ensuring quality manufacturing standards. Explore our Electronics & Electricals category for more Coaxial Connectors from RS PRO and other brands, ensuring you find reliable solutions for all your RF connection needs.
