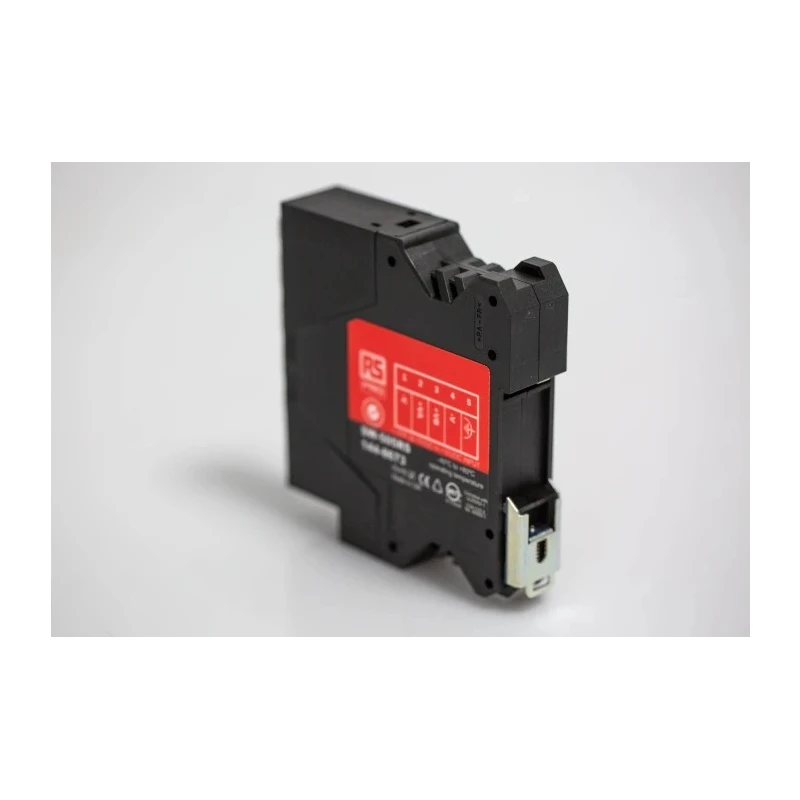

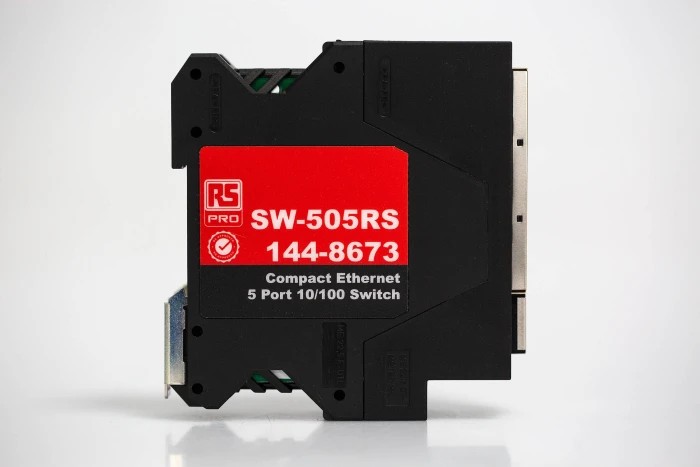

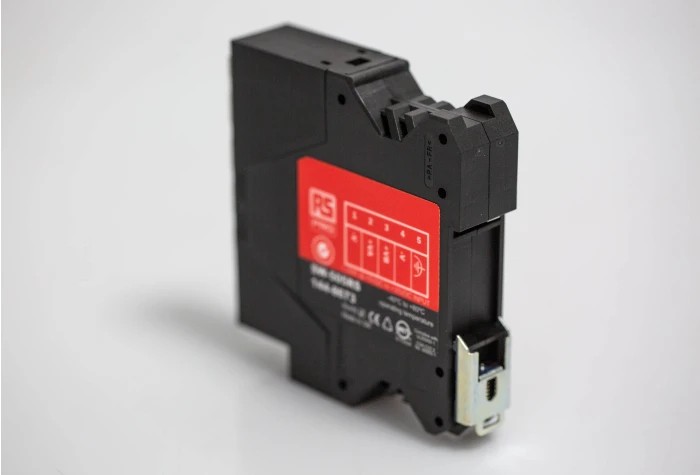

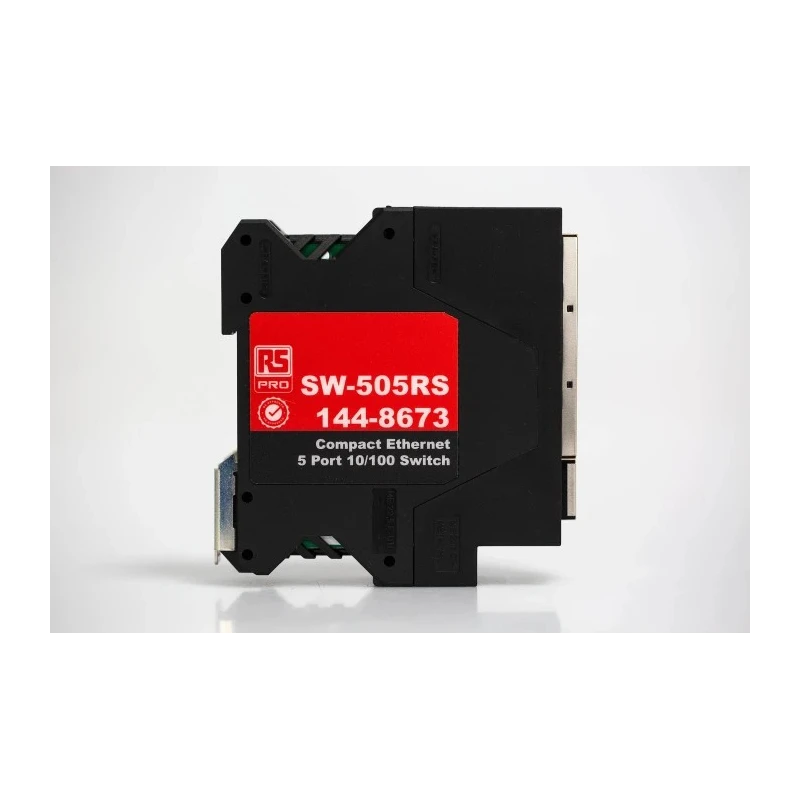

RS PRO Industrial Compact Unmanaged 5 Port 10/100 Mbps Ethernet Switch DIN Rail Mount United Kingdom 144-8673
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Height | 99mm |
| Model | 144-8673 |
| Depth | 94mm |
| Gross Weight | 0.115 kg |
| Width | 23mm |
| Housing | IP-20 rated non-conducting polyamide case with Easy Wire Removable screw terminal block |
| Switch Type | Unmanaged |
| Ethernet Ports | 5 x RJ45 jack, 10/100Mhz autosensing, crossover auto sensing (Auto MDIX) |
| Number Of Ports | 5 |
| Interfaces | Ethernet Switch |
| Standards/Approvals | CE, RoHS |
| Desktop/Rack Mount | DIN Rail |
| Number of SFP Ports | 0 |
| Number of RS-485 Ports | 0 |

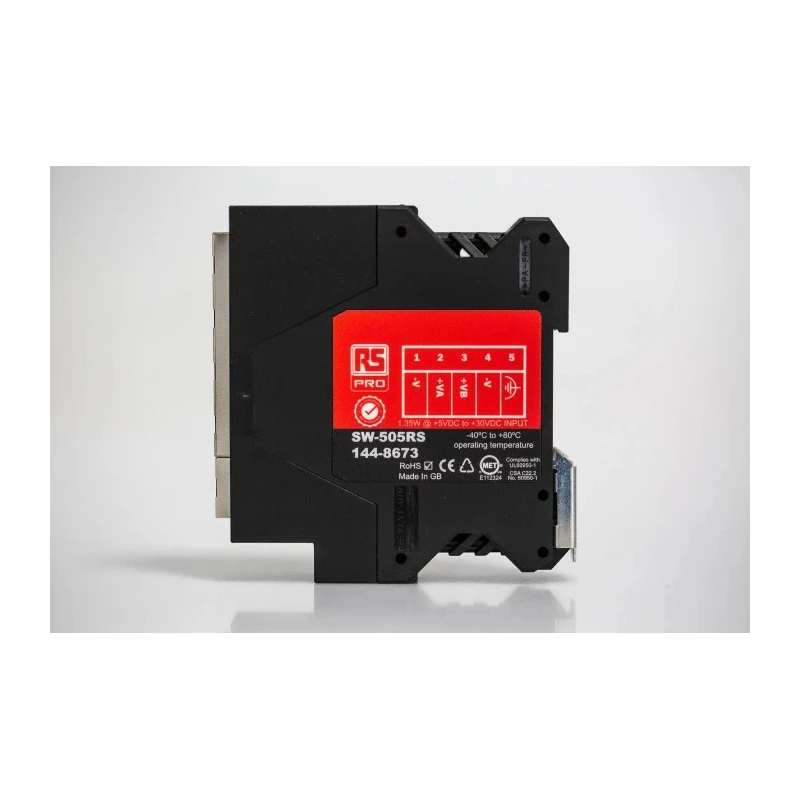

| Pin 1 | -V |
| Pin 2 | +VA |
| Pin 3 | +VB |
| Pin 4 | -V |
| Pin 5 | Functional Earth |
| RS PRO Unmanaged 5 Port Ethernet SwitchBrand | RS PRO |
| Brainboxes Unmanaged 5 Port Ethernet SwitchBrand | Brainboxes |
| Pepperl + Fuchs Unmanaged 5 Port Ethernet SwitchBrand | Pepperl + Fuchs |
| MOXA Unmanaged 5 Port Ethernet SwitchBrand | MOXA |
Key Features

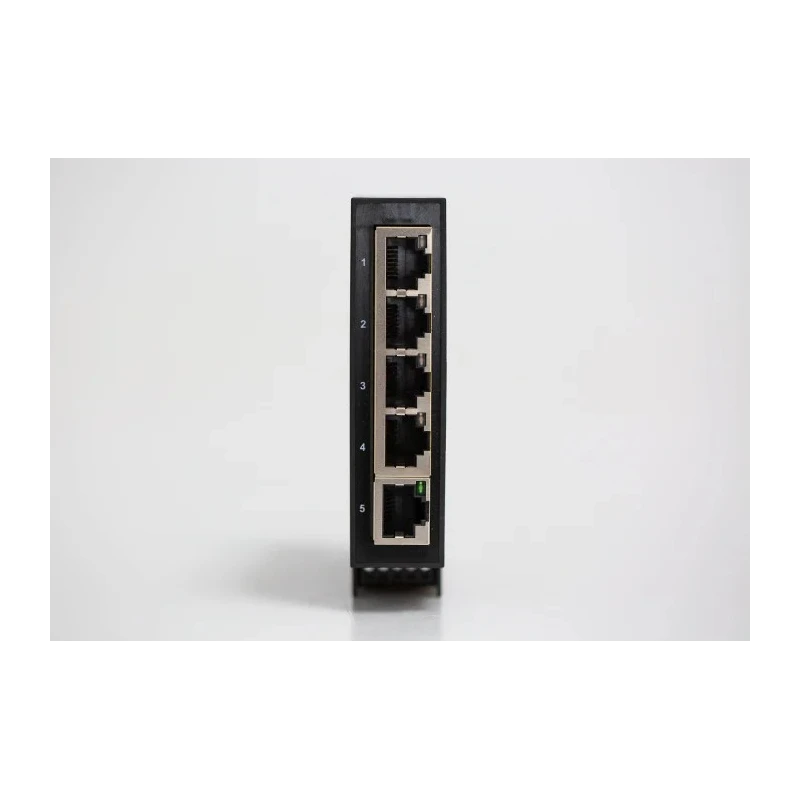

- Provides five 10/100 Mbps RJ45 Ethernet ports with auto-sensing and Auto MDIX support.
- Designed for industrial use with operating temperature range of -40°C to +80°C.
- Features integrated DIN rail mount with grounding and compact polyamide IP-20 rated housing.
- Includes redundant dual power inputs supporting +5V to +30V DC with removable numbered power terminal.
- Power consumption is maximum 1.35 Watts for efficient operation.
- Supports auto crossover detection eliminating need for crossover cables.
- Robust construction suitable for automation, energy, machinery, transportation, and marine applications.
- No software configuration required; plug and play connectivity.
Product Description
RS PRO 144-8673 is an unmanaged industrial Ethernet switch featuring five 10/100 Mbps RJ45 ports with auto-sensing and Auto MDIX capabilities, designed for robust networking in harsh environments. This compact device includes an integrated DIN rail mount with grounding capability and a non-conducting polyamide housing rated IP-20, ensuring durability and safety in industrial applications.
The switch supports a wide operating temperature range from -40°C to +80°C making it suitable for extreme conditions often found in automation, energy, machinery, robotics, transportation, and marine industries. It incorporates dual redundant power inputs, accepting +5V to +30V DC supply with a removable numbered power terminal block facilitating easy wiring and ensuring uninterrupted operation through power supply redundancy.
With a power consumption capped at 1.35 Watts, the switch maintains efficient energy use. The 5 Ethernet ports offer 10/100 Mbps speed with crossover auto-detection (Auto MDIX), eliminating the need for special crossover cables. The compact footprint, measuring 99 mm in height, 23 mm width, and 94 mm depth, helps save cabinet space on factory floors or vehicle installations.
Five 10/100 Mbps Ethernet ports with auto-sensing and Auto MDIX support. Industrial operating temperature range from -40°C to +80°C. Durable IP-20 rated non-conductive polyamide housing with easy wire removable screw terminal.
Dual redundant DC power inputs for high reliability. Compact and lightweight design fits tight installation spaces. Simple plug and play without any software setup. Power consumption of 1.35 Watts maximum. Suitable for automation, energy, transportation, marine, and manufacturing environments.
The RS PRO 144-8673 unmanaged 5 port Ethernet switch is ideal for industrial networking needs requiring reliable, simple, and compact Ethernet connectivity. Its ability to handle harsh industrial environments and use cases across machinery, robotics, and transport make it a versatile networking solution. This product is engineered and manufactured in the United Kingdom.
