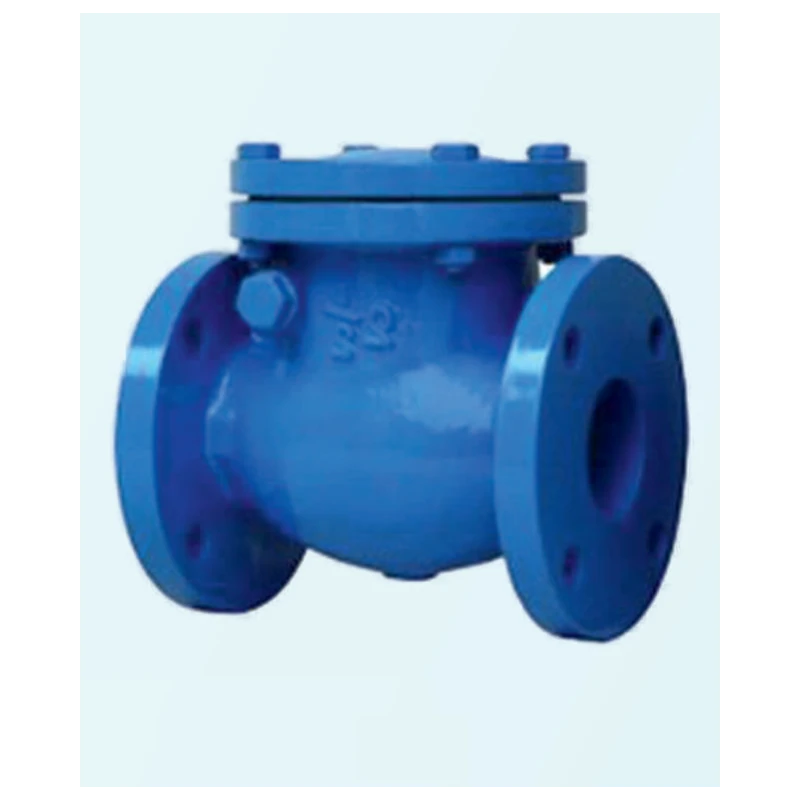

Flange Swing End Check Valve Cast Iron Non Return (80 mm)
Specifications
| Description | Bolted Cover |
|---|---|
| Working Pressure | Max. BOP 10.54 kg/cm |
| Model | UPC-FSCV-425 |
| Product Standard | BS 5153 |
| End Details | Flange Ends as per ANSI B16.1 CL-125 Flat Face |
| Type of Pattern | Straight Pattern |
| Type of Seat & Disc | Renewable |
| Stud Nut & Washer | Carbon steel as per IS 1367 |
| Hydraulic Test Pressure | Body 21 kg/cm| seat 14/kg/cm |
Key Features
- Easy installation
- Campact Design
- Low leakage
Product Description
80 mm Flange Swing End Check Valve Cast Iron Non Return is used to check the flow rate of liquid or gas. The valve has an internal spring which opens when the pressure exceeds the preset value. This prevents backflow of fluid.
- Long service life
- Good corrosion resistance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure for the Flange Swing End Check Valve is 10.54 kg/cm.
This model conforms to the product standard BS 5153.
It features flange ends as per ANSI B16.1 CL-125 Flat Face.
The hydraulic test pressure for the body is 21 kg/cm, and for the seat, it is 14 kg/cm.
This check valve is made of cast iron, providing good corrosion resistance.
The valve has an internal spring that opens when the pressure exceeds a preset value, preventing backflow of fluid.
It features a straight pattern design.
This model utilizes a renewable type of seat and disc.
The valve includes a bolted cover and uses carbon steel for the stud nut and washer as per IS 1367.
The model number for this check valve is UPC-FSCV-425.
This check valve is used to check the flow rate of liquid or gas in various industrial applications.
The valve has an 80 mm diameter, which is its primary dimension for installation.
